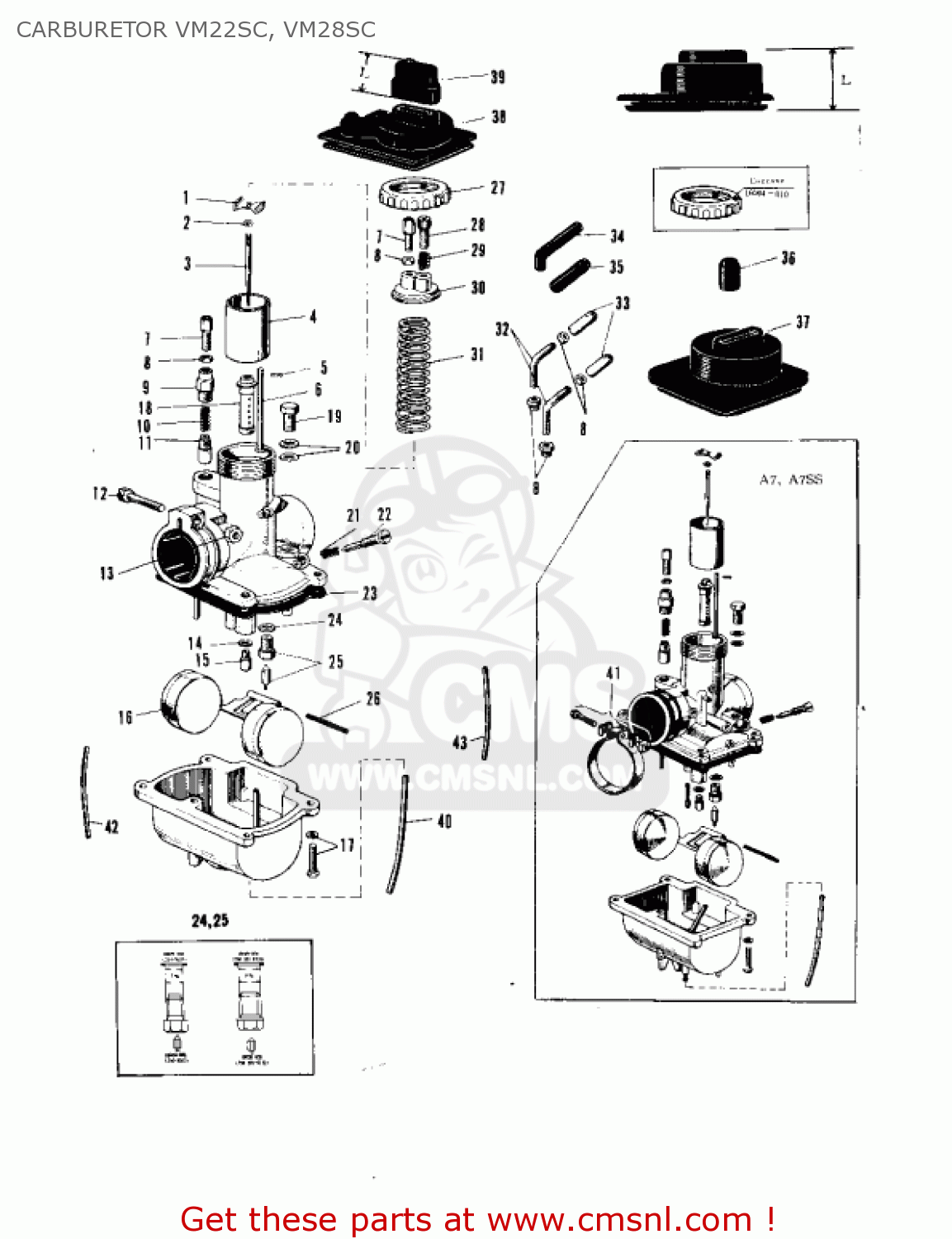

CARBURETOR VM22SC, VM28SC

ref

part #

description

quantity

?

16001096
ref: ?
Includes items 1 - 3

CARBURETOR ASSY,R.H

€ 64.50

?

16001067
ref: ?
Includes items 1 - 1

CARBURETOR ASSY

€ 102.50

?

16001097
ref: ?
Includes items 1 - 3

CARBURETOR ASSY,L.H

€ 159.00

?

16001079
ref: ?
Includes items 1 - 1

CARBURETOR ASSY

€ 102.50

1

16007002
ref: 1

SEAT-SPRING,THROTTLE

€ 8.50

1

16007007
ref: 1

SPRING SEAT-THRTL VLV

€ 7.50

2

16008010
ref: 2

CLAMP,E-TYPE

€ 5.00

3

16009012
ref: 3

JET NEEDLE 4J13

€ 5.50

3

16009018
ref: 3

JET NEEDLE

€ 3.00

4

16025011
ref: 4

VALVE-THROTTLE

€ 25.50

4

16025014
ref: 4

VALVE-THROTTLE CA2.5

€ 19.50

5

16023001
ref: 5

COTTER PIN

€ 1.50

6

16024002
ref: 6

ROD,THROTTLE VALVE ST

€ 6.50

6

16024011
ref: 6

THROTTLE VALVE STOP ROD

€ 9.50

7

16002002
ref: 7

ADJUSTER-CABLE,STARTE

€ 8.00

8

16003004
ref: 8

NUT-CABLE ADJUST LOCK

€ 4.50

9

16012004
ref: 9

CAP-STARTER PLUNGER

€ 7.50

9

16012006
ref: 9

CAP-STARTER PLUNGER

€ 3.50

10

16013005
ref: 10

SPRING-STARTER PLUNG

€ 3.00

11

16016002
ref: 11

PLUNGER,STARTER

€ 20.00

12

16010004
ref: 12

SCREW-CLAMP

€ 3.50

13

311B0600
ref: 13
USE 310B0600

NUT,6MM

€ 0.50

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

16034001
ref: 14

WASHER-MAIN JET

€ 2.50

15

92063015
ref: 15
S.T.D.

MAIN JET #140

€ 4.50

15

92063014
ref: 15
A1, A1SS

MAIN JET #130

€ 10.50

15

92063016
ref: 15
OPTION

MAIN JET #150

€ 13.00

15

920631035
ref: 15
S.T.D.

MAIN JET,#97.5R

€ 10.00

15

92063068
ref: 15
A7, A7SS OPTION

MAIN JET,#92.5R

€ 15.50

15

920631031
ref: 15
A7, A7SS OPTION

MAIN JET,#95R

€ 10.00

15

920631033
ref: 15
A7, A7SS OPTION

JET-MAIN,#A100R

€ 17.00

15

920631028
ref: 15
A7, A7SS OPTION

JET-MAIN,#A102.5R

€ 10.00

16

16031004
ref: 16

FLOAT

€ 67.00

16

16031023
ref: 16

FLOAT

€ 22.50

17

16033009
ref: 17
I.S.O. THREAD

SCREW-FLOAT CHAMBER

€ 0.50

18

16017026
ref: 18

NEEDLE JET

€ 8.50

18

16017027
ref: 18

NEEDLE JET

€ 5.50

19

92001014
ref: 19

BOLT-BANJO

€ 11.50

19

92001011
ref: 19

BOLT-BANJO

€ 2.50

20

751P0800
ref: 20

GASKET,8MM

€ 1.00

21

16022010
ref: 21

SPRING,THROTTLE ADJST

€ 4.50

21

16022007
ref: 21

SPRING-THR STOP SCREW

€ 5.50

22

16014003
ref: 22

SCREW-PILOT AIR

€ 17.00

22

16014006
ref: 22

SCREW-PILOT AIR

€ 9.00

23

16019004
ref: 23

GASKET,FLOAT CHAMBER (NAS)

€ 19.50

23

16019008
ref: 23

GASKET,FLOAT CHAMBER (NAS)

€ 27.00

24

16029002
ref: 24
D=7M/M

WASHER-VALVE SEAT

€ 2.50

24

16029004
ref: 24
D=9M/M

WASHER-FLOAT VLV SEAT

€ 2.50

25

16030001
ref: 25
D=7M/M

VALVE-FLOAT,#2.0

€ 40.50

25

16030005
ref: 25
D=9M/M

VALVE-FLOAT,2.5

€ 43.00

26

16032003
ref: 26

FLOAT PIN

€ 4.00

27

16004010
ref: 27

CAP-CHAMBER,MIXING

€ 13.50

27

16004006
ref: 27

CAP-MIXING CHAMBER

€ 14.00

28

16021002
ref: 28

SCREW-THROTTLE STOP

€ 12.00

29

16022005
ref: 29

SPRING-THR STOP SCREW

€ 5.50

30

16005005
ref: 30

TOP-CHAMBER,MIXING

€ 12.50

30

16005010
ref: 30

TOP-MIXING CHAMBER

€ 3.50

31

16006013
ref: 31

SPRING-THROTTLE VALVE

€ 10.00

31

16006007
ref: 31

SPRING-THROTTLE VALVE

€ 4.00

32

16077001
ref: 32

GUIDE,CABLE

€ 6.50

33

16002004
ref: 33

CABLE ADJUSTER

€ 8.00

34

16036002
ref: 34
(THROTTLE)

CAP-CABLE ADJUSTER,A

€ 3.50

35

16036003
ref: 35
(STARTER)

CAP-CABLE ADJUSTER,B

€ 1.50

36

16037002
ref: 36

CAP,PILOT SCREW

€ 4.50

37

14038009
ref: 37
L=10 M/M

CAP-L.H CARBURETOR

€ 3.50

37

14038013
ref: 37
L=33 M/M

CAP-L.H CARBURETOR

€ 3.50

38

14038008
ref: 38
L=22 M/M

CAP-CARBURETOR

€ 6.50

38

14038023
ref: 38
L=33 M/M

CAP

€ 1.50

39

14038006
ref: 39
L=33 M/M

BOOT,CARBURETOR CAP

€ 5.50

39

14038011
ref: 39
L=30 M/M

GROMMET-CARBRETOR CAP

€ 2.50

40

92059031
ref: 40
L=160 M/M

PIPE-FUEL OVERFLOW

€ 1.50

41

16051002
ref: 41

CLAMP SET-CARB MOUNT

€ 8.00

42

92059040
ref: 42
L=450 M/M

PIPE-AIR VENT A

€ 2.50

42

92059040
ref: 42
L=450 M/M

PIPE-AIR VENT A

€ 2.50

43

92059044
ref: 43
L=370 M/M

PIPE-AIR VENT B

€ 2.50

43

92059044
ref: 43
L=370 M/M

PIPE-AIR VENT B

€ 2.50

all assemblies
