IGNITION/GENERATOR A1/A7
A1 SAMURAI 1969 EUROPE USA

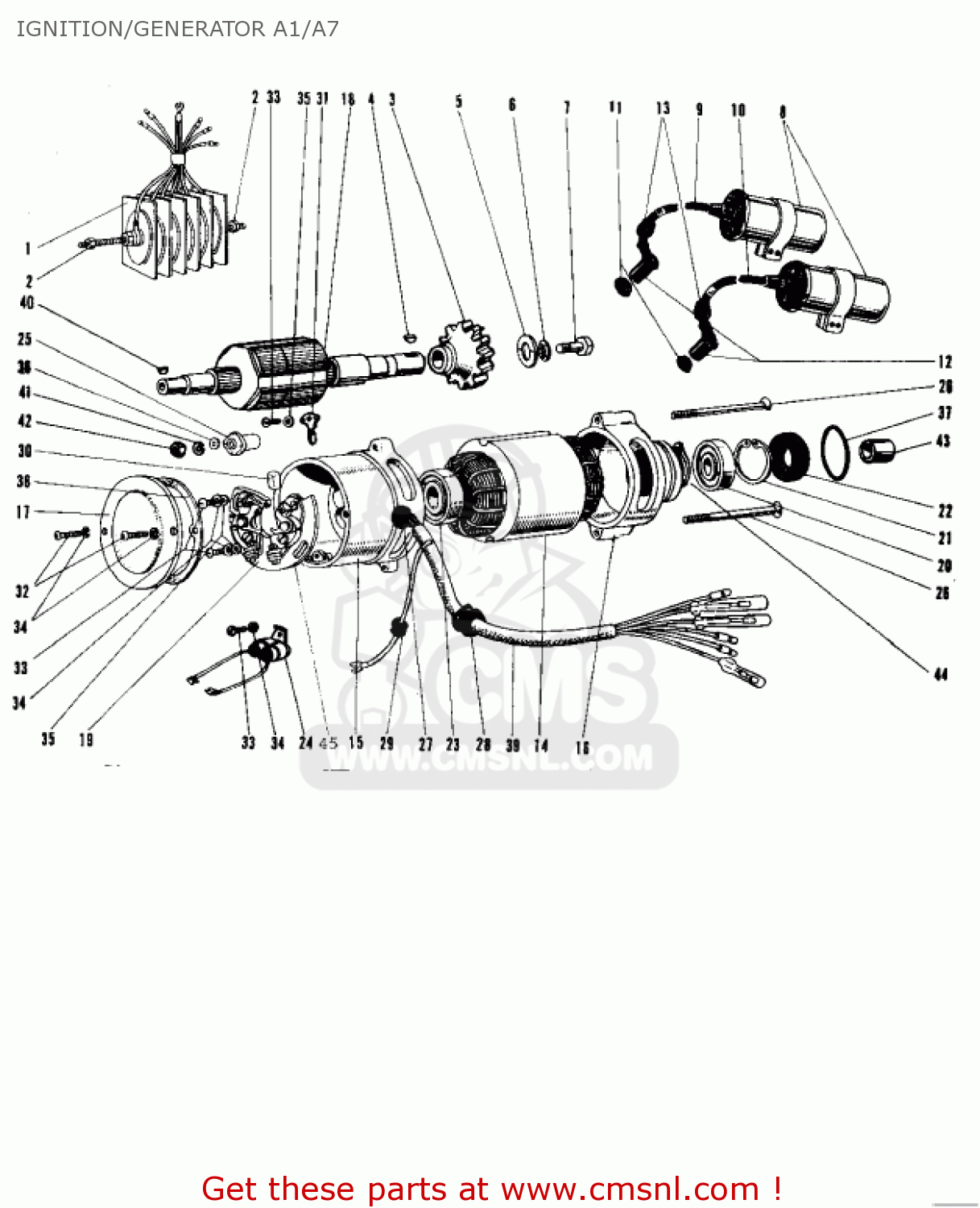

Ignition/generator a1/a7 diagram A1 SAMURAI 1969 EUROPE USA
IGNITION/GENERATOR A1/A7 A1 SAMURAI 1969 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
21061005
ref: 1
RECTIFIER
€ 48.50
2
312B0600
ref: 2
NUT,6MM
€ 0.50
3
21069002
ref: 3
15T.
GEAR-DYNAMO
€ 25.00
4
510A3100
ref: 4
KEY-WOODRUFF
€ 1.50
5
92022079
ref: 5
WASHER-PLAIN,8MM
€ 2.00
6
463H0800
ref: 6
WASHER-TOOTHED,8MM
€ 2.00
7
115G0820
ref: 7
BOLT,8X20
€ 2.00
8
21121015
ref: 8
COIL-IGNITION
€ 58.00
9
21133007
ref: 9
CORD-HIGH TENSION,R.H
€ 1.50
10
21133008
ref: 10
CORD-HIGH TENSION,L.H
€ 4.00
11
21131002
ref: 11
GROMMET-PLUG CAP A
€ 0.50
12
21130016
ref: 12
CAP-SPARK PLUG
€ 16.50
13
92071517
ref: 13
GROMMET
€ 0.50
?
21001009
ref: ?
Includes items 14 -
DYNAMO EN-11
€ 290.50
14
21003003
ref: 14
STATOR
€ 143.00
15
21004002
ref: 15
COVER-REAR
€ 26.00
16
21005002
ref: 16
COVER-FRONT
€ 18.50
17
21006002
ref: 17
COVER-CONTACT BREAKER
€ 4.00
18
21007004
ref: 18
ROTOR
€ 136.50
19
21008008
ref: 19
BREAKER ASSY-CONTACT
€ 24.50
20
21009001
ref: 20
BRG-6202V
€ 3.50
21
21010002
ref: 21
CIRCLIP,35MM
€ 1.00
22
21011002
ref: 22
OIL SEAL,SB22357
€ 2.50
23
21009002
ref: 23
BRG-6201VV
€ 3.50
24
21013008
ref: 24
CONDENSER
€ 24.50
25
21014003
ref: 25
CAM
€ 8.00
26
21015002
ref: 26
SCREW-CNTSNK HD 6X80
€ 0.50
27
21017001
ref: 27
GROMMET-WIRING HARN,A
€ 1.50
28
21017003
ref: 28
GROMMET-WIRING HARN,B
€ 1.50
29
21017005
ref: 29
GROMMET-WIRING HARN,C
€ 2.00
30
21019005
ref: 30
BRUSH,OIL
€ 3.00
31
21020001
ref: 31
POINTER-IGN TIMING
€ 0.50
32
220B0410
ref: 32
SCREW-PAN-CROS
€ 2.00
33
21022010
ref: 33
USE 220B0406
SCREW-PAN HEAD,4X6
€ 2.50
33
220B0406
ref: 33
SCREW-PAN-CROS,4X6
€ 2.50
34
461F0400
ref: 34
WASHER-SPRING,4MM
€ 0.50
35
410B0400
ref: 35
WASHER-PLAIN-SMALL,4M
€ 0.50
36
410B0600
ref: 36
WASHER-PLAIN-SMALL,6M
€ 0.50
37
21027002
ref: 37
'O' RING,46MM
€ 4.50
38
21028002
ref: 38
GASKET-CNTCT BRK COV (MCA)
€ 1.00
39
21029004
ref: 39
WIRING HARNESS-DYNAMO
€ 5.50
40
21030002
ref: 40
CAM WOODRUFF KEY
€ 1.50
41
461F0800
ref: 41
WASHER-SPRING,8MM
€ 0.50
42
21032001
ref: 42
NUT,8MM
€ 1.50
43
21033001
ref: 43
COLLER-DYNAMO GEAR
€ 2.00
44
21034001
ref: 44
WASHER-WAVE,19MM
€ 1.00
44
21156012
ref: 44
CONTACT BREAKER PLATE
€ 41.00
