IGNITION/GENERATOR A1
A1 SAMURAI 1967 EUROPE USA

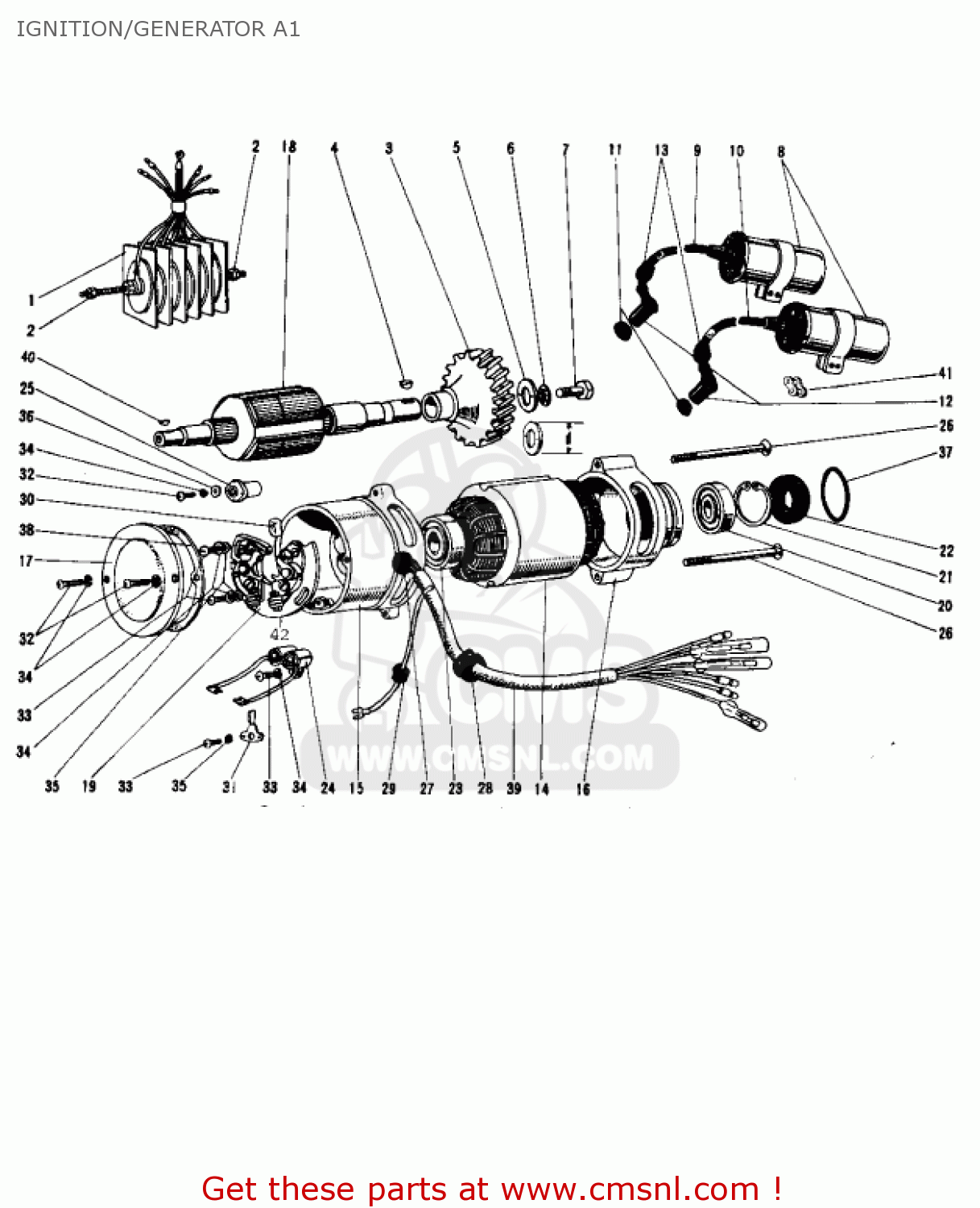

Ignition/generator a1 diagram A1 SAMURAI 1967 EUROPE USA
IGNITION/GENERATOR A1 A1 SAMURAI 1967 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
21061005
ref: 1
RECTIFIER
€ 48.50
2
312B0600
ref: 2
NUT,6MM
€ 0.50
3
21069006
ref: 3
GEAR-DYNAMO
€ 50.00
4
510A3100
ref: 4
KEY-WOODRUFF
€ 1.50
5
92022079
ref: 5
WASHER-PLAIN,8MM
€ 2.00
6
463H0800
ref: 6
WASHER-TOOTHED,8MM
€ 2.00
7
115G0820
ref: 7
BOLT,8X20
€ 2.00
8
21121015
ref: 8
COIL-IGNITION
€ 58.00
9
21133007
ref: 9
CORD-HIGH TENSION,R.H
€ 1.50
10
21133008
ref: 10
CORD-HIGH TENSION,L.H
€ 4.00
11
21131002
ref: 11
GROMMET-PLUG CAP A
€ 0.50
12
21130016
ref: 12
CAP-SPARK PLUG
€ 16.50
13
92071517
ref: 13
GROMMET
€ 0.50
?
21001003
ref: ?
Includes items 14 -
ALTERNATOR
€ 290.50
14
21003002
ref: 14
STATOR
€ 129.50
15
21004001
ref: 15
COVER-REAR
€ 22.00
16
21005001
ref: 16
COVER,FRONT
€ 15.00
17
21006002
ref: 17
COVER-CONTACT BREAKER
€ 4.00
18
21007003
ref: 18
ROTOR
€ 57.00
19
21008007
ref: 19
BREAKER ASSY-CONTACT
€ 48.00
20
21009001
ref: 20
BRG-6202V
€ 3.50
21
21010002
ref: 21
CIRCLIP,35MM
€ 1.00
22
21011001
ref: 22
OIL SEAL,SC19355.5
€ 2.50
23
21009002
ref: 23
BRG-6201VV
€ 3.50
24
21013007
ref: 24
CONDENSER
€ 38.00
25
21014002
ref: 25
CAM
€ 6.50
26
21015004
ref: 26
SCREW-CNTSNK HD 6X98
€ 0.50
27
21017001
ref: 27
GROMMET-WIRING HARN,A
€ 1.50
28
21017003
ref: 28
GROMMET-WIRING HARN,B
€ 1.50
29
21017005
ref: 29
GROMMET-WIRING HARN,C
€ 2.00
30
21019005
ref: 30
BRUSH,OIL
€ 3.00
31
21020001
ref: 31
POINTER-IGN TIMING
€ 0.50
32
220B0410
ref: 32
SCREW-PAN-CROS
€ 2.00
33
21022010
ref: 33
USE 220B0406
SCREW-PAN HEAD,4X6
€ 2.50
33
220B0406
ref: 33
SCREW-PAN-CROS,4X6
€ 2.50
34
461F0400
ref: 34
WASHER-SPRING,4MM
€ 0.50
35
410B0400
ref: 35
WASHER-PLAIN-SMALL,4M
€ 0.50
36
410B0600
ref: 36
WASHER-PLAIN-SMALL,6M
€ 0.50
37
21027002
ref: 37
'O' RING,46MM
€ 4.50
38
21028002
ref: 38
GASKET-CNTCT BRK COV (MCA)
€ 1.00
39
21029004
ref: 39
WIRING HARNESS-DYNAMO
€ 5.50
40
21030001
ref: 40
WOODRUFF KEY-CAM
€ 0.50
41
92026051
ref: 41
E/NO. A1E02533
SPACER
€ 2.00
42
21156013
ref: 42
& BELOW
CONTACT BREAKER PLATE
€ 31.50
