FENDERS
A1 SAMURAI 1966 EUROPE USA

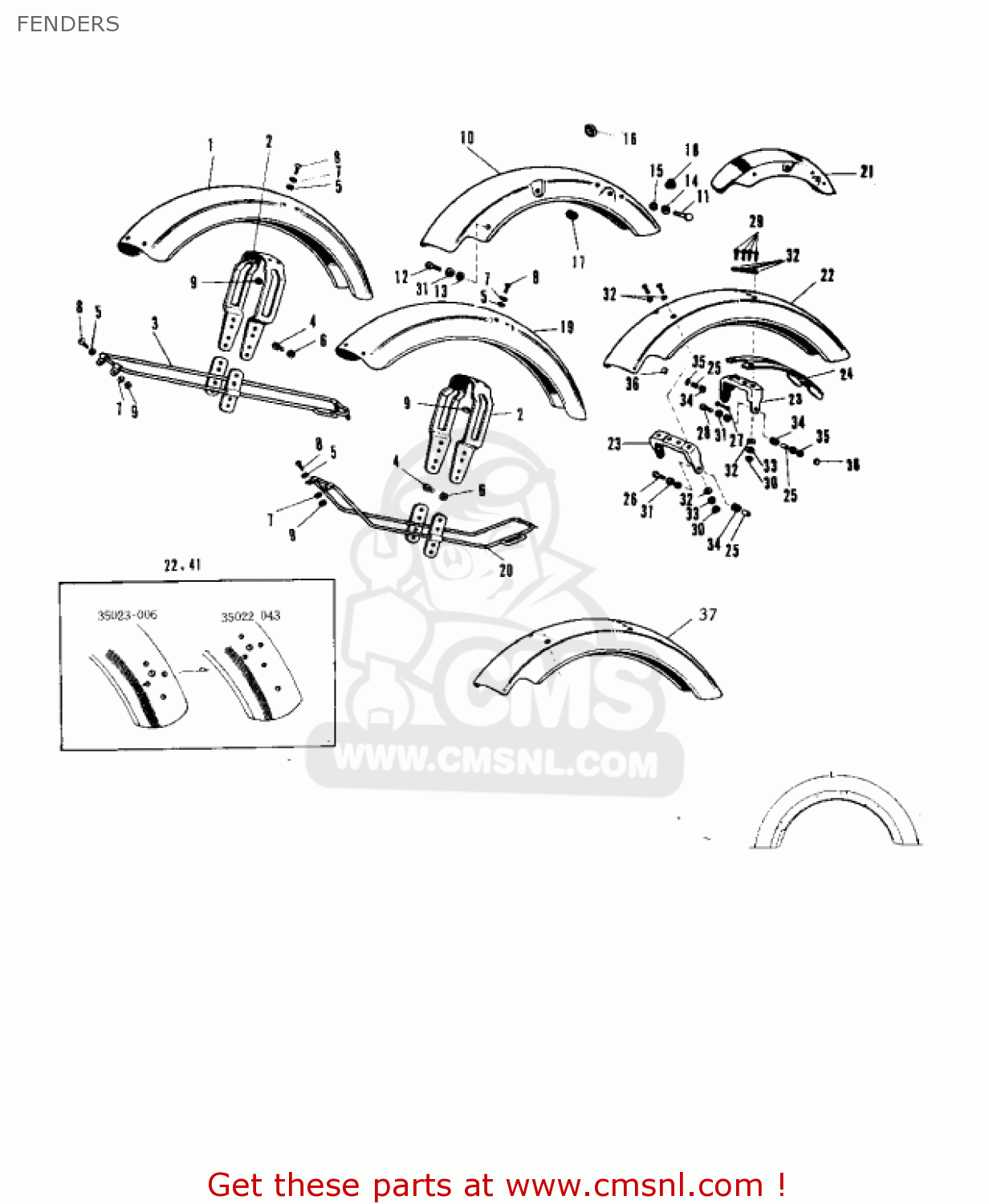

Fenders diagram A1 SAMURAI 1966 EUROPE USA
FENDERS A1 SAMURAI 1966 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
35004029
ref: 1
FENDER-FRONT
€ 108.50
2
35009008
ref: 2
BRACE-FRONT FENDER
€ 23.00
3
35011012
ref: 3
STAY-FRONT FENDER
€ 27.00
4
114G0812
ref: 4
BOLT-SMALL,8X12
€ 2.00
5
411B0600
ref: 5
WASHER-PLAIN,6MM
€ 0.50
6
461F0800
ref: 6
WASHER-SPRING,8MM
€ 0.50
7
461F0600
ref: 7
WASHER-SPRING,6MM
€ 0.50
8
220E0610
ref: 8
SCREW-PAN HEAD,6X10
€ 2.50
9
312B0600
ref: 9
NUT,6MM
€ 0.50
10
35022051
ref: 10
CR-PLATED
FENDER-REAR
€ 142.50
11
92007008
ref: 11
FOR 32002-004
BOLT-REAR FENDER FIT
€ 7.00
11
92007008
ref: 11
L=25 M/M
BOLT-REAR FENDER FIT
€ 7.00
12
115G0818
ref: 12
USE 116B0814
BOLT SMALL-UPSET
€ 2.50
12
115B0814
ref: 12
BOLT SMALL UPSET 8X14
€ 1.00
13
410B0800
ref: 13
WASHER-PLAIN-SMALL,8M
€ 0.50
14
461F1000
ref: 14
WASHER-SPRING,10MM
€ 0.50
15
410B1000
ref: 15
WASHER-PLAIN-SMALL,10
€ 0.50
16
92071019
ref: 16
GROMMET,10MM
€ 2.50
17
92074005
ref: 17
*1 EA NOT REQUIRED F
PLUG,8X2
€ 2.50
17
92074005
ref: 17
*1 EA NOT REQUIRED F
PLUG,8X2
€ 2.50
18
92074006
ref: 18
PLUG,FENDER,RR,12X1
€ 4.00
19
35004025
ref: 19
*FOR U.S.A. MODEL ON
FENDER-FRONT
€ 37.00
19
35004025
ref: 19
*FOR U.S.A. MODEL ON
FENDER-FRONT
€ 37.00
20
35011010
ref: 20
*FOR U.S.A. MODEL ON
STAY-FRONT FENDER
€ 27.00
20
35011010
ref: 20
*FOR U.S.A. MODEL ON
STAY-FRONT FENDER
€ 27.00
21
35022024
ref: 21
CR-PLATED
REAR FENDER
€ 133.00
22
35023006
ref: 22
*FOR U.S.A. MODEL ON
REAR FENDER
€ 256.00
22
35023006
ref: 22
*FOR U.S.A. MODEL ON
REAR FENDER
€ 256.00
23
35025011
ref: 23
BRACKET-REAR FENDER
€ 3.50
24
35034008
ref: 24
GUSSET-REAR FENDER
€ 6.50
25
92027080
ref: 25
COLLAR
€ 3.50
26
116B0825
ref: 26
BOLT-HEX HEAD,8X25
€ 3.00
27
116B0828
ref: 27
BOLT-HEX HEAD,8X28
€ 2.50
28
116B0832
ref: 28
BOLT-HEX HEAD,8X32
€ 1.50
29
112G0612
ref: 29
BOLT-UPSET
€ 2.50
30
311B0600
ref: 30
NUT,6MM
€ 0.50
31
461F0800
ref: 31
WASHER-SPRING,8MM
€ 0.50
32
410B0600
ref: 32
WASHER-PLAIN-SMALL,6M
€ 0.50
33
461F0600
ref: 33
WASHER-SPRING,6MM
€ 0.50
34
92075019
ref: 34
DAMPER RUBB-TANK FRNT
€ 2.00
35
920221564
ref: 35
WASHER
€ 2.50
36
92020007
ref: 36
NUT,CAP,8MM
€ 3.50
37
35022043
ref: 37
FENDER-REAR
€ 64.00
