TRANSMISSION

ZX900F2 NINJA ZX9R 2003 USA CALIFORNIA CANADA

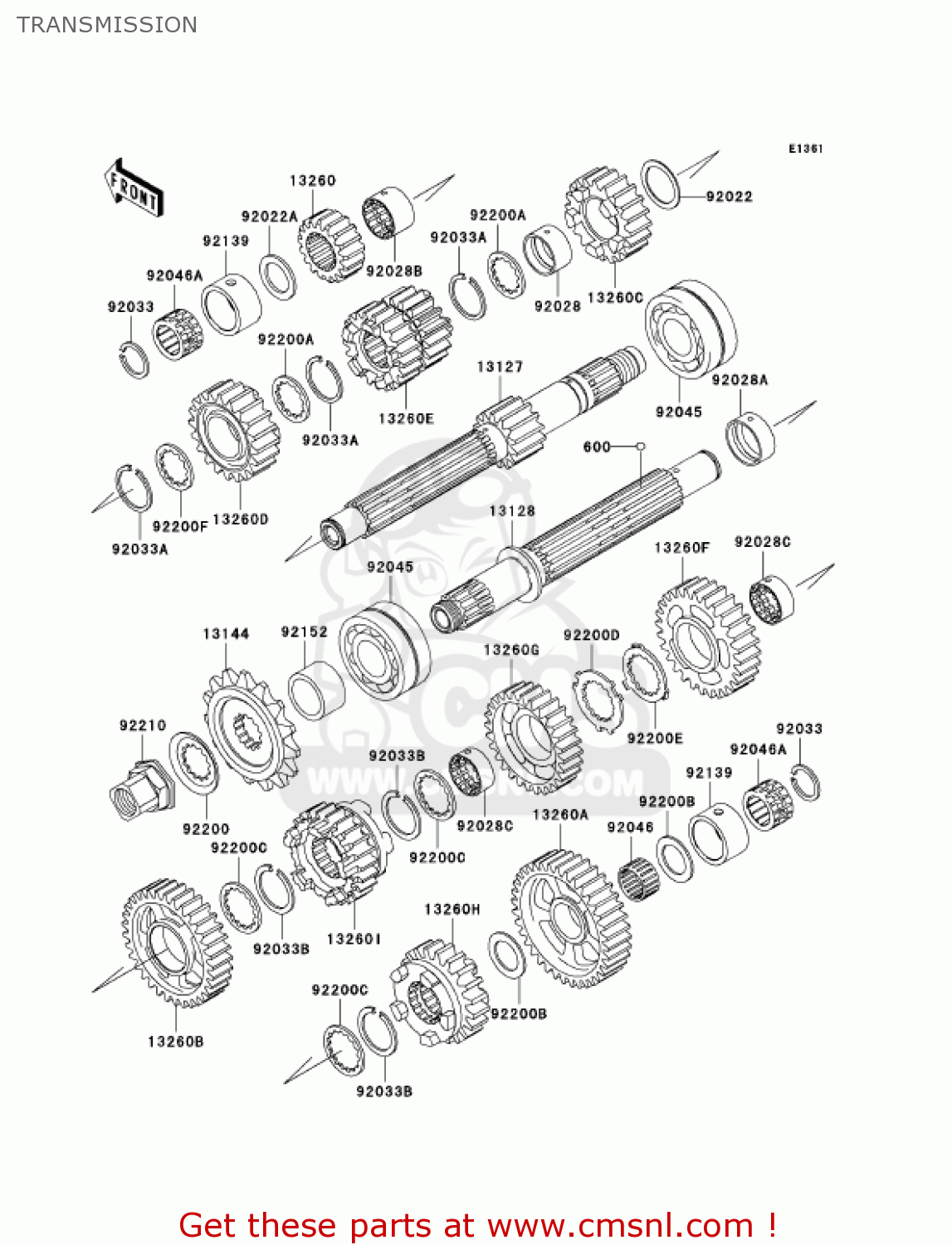

Transmission diagram ZX900F2 NINJA ZX9R 2003 USA CALIFORNIA CANADA

TRANSMISSION ZX900F2 NINJA ZX9R 2003 USA CALIFORNIA CANADA
TRANSMISSION ZX900F2 NINJA ZX9R 2003 USA CALIFORNIA CANADA
TRANSMISSION ZX900F2 NINJA ZX9R 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271283
ref: 13127
SHAFT-TRANSMISSION IN
131271283
€ 269.00
13128
131281241
ref: 13128
SHAFT-TRANSMISSION OU
131281241
€ 204.00
13144
131441320
ref: 13144
SPROCKET-OUTPUT,16T
131441320
€ 41.00
13260
132601681
ref: 13260
GEAR,INPUT 2ND,17T
€ 110.00
13260A
132601685
ref: 13260A
GEAR,OUTPUT LOW,36T
€ 150.50
13260B
132601686
ref: 13260B
GEAR,OUTPUT 2ND,33T
132601686
€ 145.50
13260C
132601875
ref: 13260C
GEAR,INPUT 5TH,20T
€ 126.50
13260D
132601876
ref: 13260D
GEAR,INPUT TOP,21T
€ 159.50
13260E
132601879
ref: 13260E
GEAR,INPUT 3RD&4TH,18
€ 160.00
13260F
132601880
ref: 13260F
GEAR,OUTPUT 3RD,28T
132601880
€ 147.00
13260G
132601881
ref: 13260G
GEAR,OUTPUT 4TH,28T
€ 145.50
13260H
132601882
ref: 13260H
GEAR,OUTPUT 5TH,24T
€ 157.50
13260I
132601977
ref: 13260I
GEAR OUTPUT TOP23T
€ 177.00
92022
920221109
ref: 92022
WASHER,25.3X33X1
920221109
€ 4.00
92022A
92022112
ref: 92022A
WASHER,20.5X30X1,STEE
92022112
€ 6.00
92028
920281735
ref: 92028
BUSHING,INPUT 5TH GEA
920281735
€ 17.00
92028A
920281739
ref: 92028A
BUSHING,OUTPUT,2ND
920281739
€ 17.00
92028B
920281915
ref: 92028B
BUSHING,INPUT TOP GEA
920281915
€ 18.00
92028C
920281968
ref: 92028C
BUSHING,OUTPUT,3RD&4T
€ 27.50
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
92033026
€ 6.00
92033B
920331249
ref: 92033B
RING-SNAP,T=1.5
920331249
€ 3.00
92045
920451357
ref: 92045
BEARING-BALL,DAC2557N
€ 118.00
92046
920461219
ref: 92046
BEARING-NEEDLE,K20X24
920461219
€ 13.00
92046A
920461303
ref: 92046A
BEARING-NEEDLE,PK20X2
920461303
€ 22.00
92139
921391090
ref: 92139
BUSHING,27X34X18.6
921391090
€ 24.00
92152
921521218
ref: 92152
COLLAR,SPROCKET
921521218
€ 17.00
92200
922001065
ref: 92200
WASHER
922001065
€ 4.50
92200A
922001239
ref: 92200A
WASHER,INPUT TOP&5TH
922001239
€ 5.00
92200B
922001375
ref: 92200B
WASHER,20.5X31X1.5
922001375
€ 3.00
92200C
922001457
ref: 92200C
WASHER,T=2.0
922001457
€ 2.50
92200D
922001522
ref: 92200D
WASHER,OUTPUT 4TH
922001522
€ 3.50
92200E
922001523
ref: 92200E
WASHER,OUTPUT 3RD
922001523
€ 4.50
92200F
922001524
ref: 92200F
WASHER,INPUT
€ 2.50
92210
922101098
ref: 92210
NUT,SPROCKET
922101098
€ 24.50
