OIL PUMP
ZX900D1 NINJA ZX9R 1998 FG ST

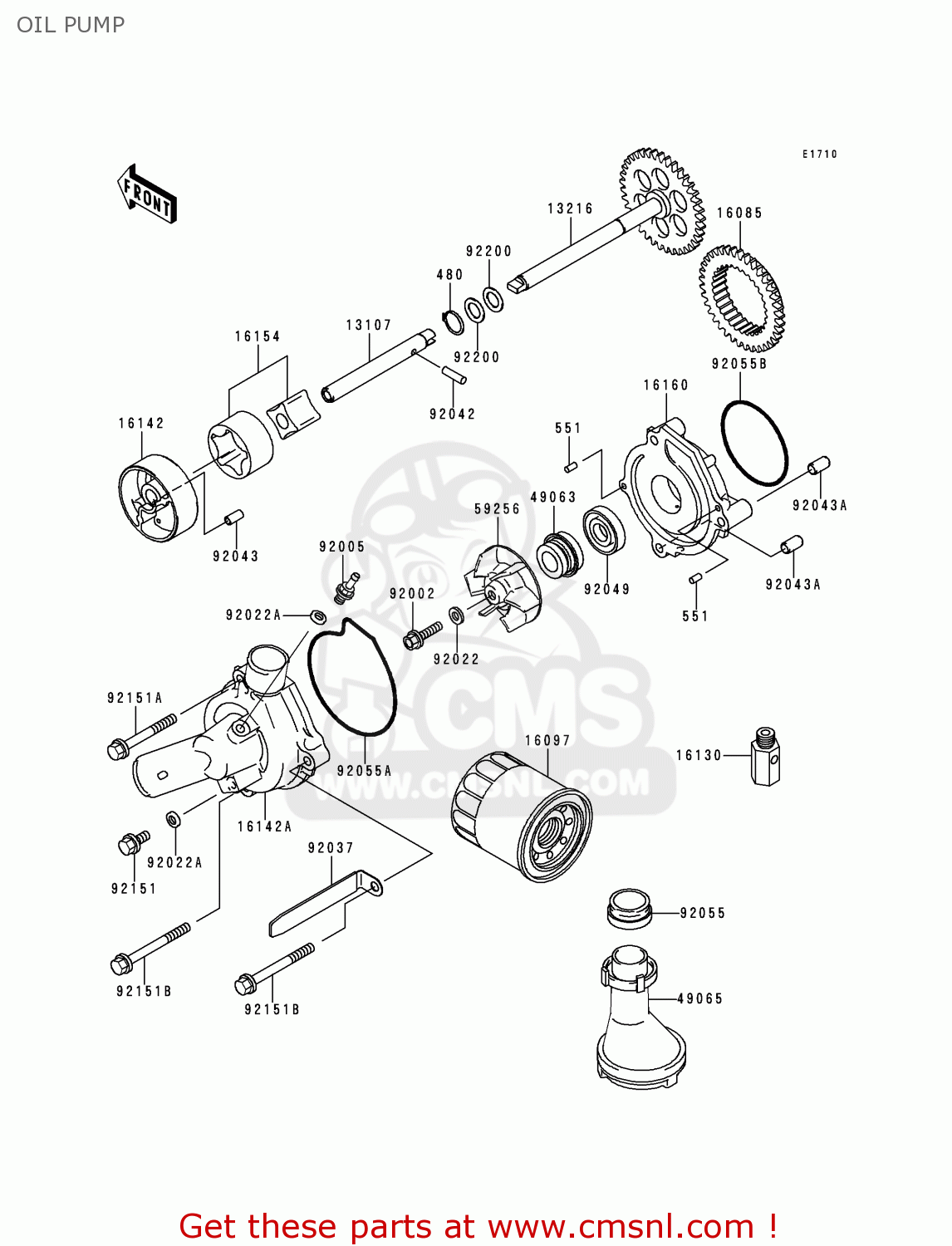

Oil pump diagram ZX900D1 NINJA ZX9R 1998 FG ST
OIL PUMP ZX900D1 NINJA ZX9R 1998 FG ST
×
prices are in EUR
ref
part #
description
quantity
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
€ 0.50
13107
131071378
ref: 13107
SHAFT,OIL PUMP
€ 19.00
13216
132161168
ref: 13216
GEAR-COMP,OIL PUMP,37
€ 84.00
16085
160851305
ref: 16085
GEAR,OIL PUMP,37T
€ 102.50
16097
160971067
ref: 16097
FILTER-ASSY-OIL
€ 10.50
16130
161301058
ref: 16130
VALVE-ASSY-RELIEF
€ 30.00
16142
161421146
ref: 16142
COVER-PUMP,OIL
€ 33.50
16142A
161421147
ref: 16142A
COVER-PUMP,WATER
€ 97.50
16154
161541115
ref: 16154
ROTOR-PUMP
€ 51.00
16160
161601280
ref: 16160
BODY,OIL PUMP
€ 111.00
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
49065
490651078
ref: 49065
FILTER-OIL
€ 12.50
59256
592561074
ref: 59256
IMPELLER
€ 32.50
92002
920021154
ref: 92002
BOLT,6X22
€ 3.00
92005
920051337
ref: 92005
FITTING
€ 17.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92037
920371679
ref: 92037
CLAMP
€ 3.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92049
920491336
ref: 92049
SEAL-OIL,OIL PUMP
€ 20.50
92055
920551503
ref: 92055
RING-O,OIL FILTER
€ 6.50
92055A
920551571
ref: 92055A
RING-O,WATER PUMP COV
€ 9.50
92055B
920553018
ref: 92055B
RING-O,59.6X2.4
€ 4.00
92151
921511133
ref: 92151
BOLT,6X12
€ 1.50
92151A
921511234
ref: 92151A
BOLT,6X50
€ 1.50
92151B
921511235
ref: 92151B
BOLT,6X60
€ 2.00
92200
922001009
ref: 92200
WASHER
€ 3.00
