Genuine ZX Kawasaki Parts delivered quickly!


COWLING

ZX900B4 NINJA ZX9R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

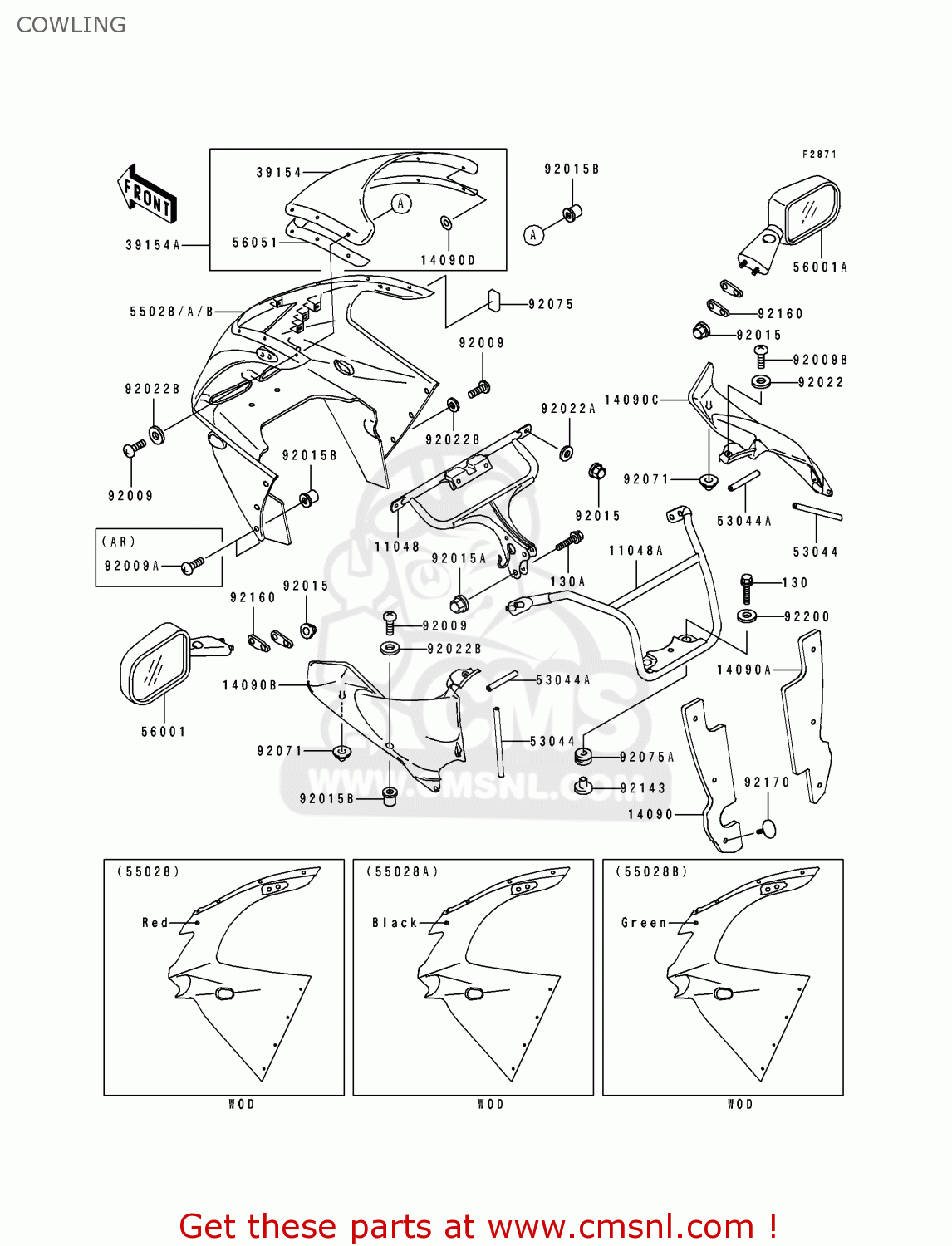

Cowling diagram ZX900B4 NINJA ZX9R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

COWLING ZX900B4 NINJA ZX9R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING ZX900B4 NINJA ZX9R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING ZX900B4 NINJA ZX9R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11048
110481847
ref: 11048
BRACKET,UPP COWLING
110481847
€ 161.50
11048A
110481961
ref: 11048A
BRACKET,MIRROR
110481961
€ 106.50
14090
140901385
ref: 14090
COVER,HEAT GUARD,LH
140901385
€ 15.00
14090A
140901386
ref: 14090A
COVER,HEAT GUARD,RH
140901386
€ 15.00
14090B
14090149911
ref: 14090B
COVER,INNER COWLING,L
14090149911
€ 141.00
14090C
14090150011
ref: 14090C
COVER,INNER COWLING,R
14090150011
€ 134.50
14090D
140901505
ref: 14090D
COVER
140901505
€ 2.00
39154
391541124
ref: 39154
WINDSHIELD
€ 306.50
39154A
391545005
ref: 39154A
WINDSHIELD
391545005
€ 306.50
53044
530441137
ref: 53044
TRIM
530441137
€ 7.00
53044A
530441279
ref: 53044A
TRIM
530441279
€ 5.50
55028
550281314A5
ref: 55028
EUFGFRGRNLNRSDUK
COWLING,UPP,C.P.RED
€ 703.50
55028A
550281314B5
ref: 55028A
COWLING,UPP,BLACK
€ 761.00
55028B
5502813147F
ref: 55028B
COWLING,UPP,L.GREEN
€ 678.00
56001
56001144110
ref: 56001
MIRROR-ASSY,LH,BLACK
56001144110
€ 103.50
56001A
56001144210
ref: 56001A
MIRROR-ASSY,RH,BLACK
56001144210
€ 103.50
56051
560511115
ref: 56051
MARK,WINDSHIELD
€ 90.00
92009
920091654
ref: 92009
AR
SCREW
920091654
€ 0.50
92009
920091654
ref: 92009
EUFGFRGRITNLNRSDSPST
SCREW
920091654
€ 0.50
92009A
920091656
ref: 92009A
AR
SCREW
920091656
€ 2.50
92009B
920091662
ref: 92009B
SCREW
920091662
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
130
130J0630
ref: 130
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
130A
130J0830
ref: 130A
BOLT-FLANGED,8X30
130J0830
€ 2.50
92022A
920221344
ref: 92022A
WASHER,7X16X1.2
920221344
€ 2.50
92022B
920221521
ref: 92022B
AR
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022B
920221521
ref: 92022B
EUFGFRGRITNLNRSDSPST
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
920711222
ref: 92071
GROMMET
920711222
€ 4.00
92075
920751902
ref: 92075
DAMPER
920751902
€ 3.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
92075209
€ 3.00
92143
921431515
ref: 92143
COLLAR
921431515
€ 13.50
92160
921601089
ref: 92160
DAMPER,MIRROR
921601089
€ 4.50
92170
921701442
ref: 92170
CLAMP
921701442
€ 2.50
92200
922001087
ref: 92200
WASHER,6.5X22X1.6
922001087
€ 2.00
