FRONT FORK(ZX900-B1/B2)

ZX900B2 NINJA ZX9R 1995 EU UK FR NL AR FG GR IT NR SD SP ST

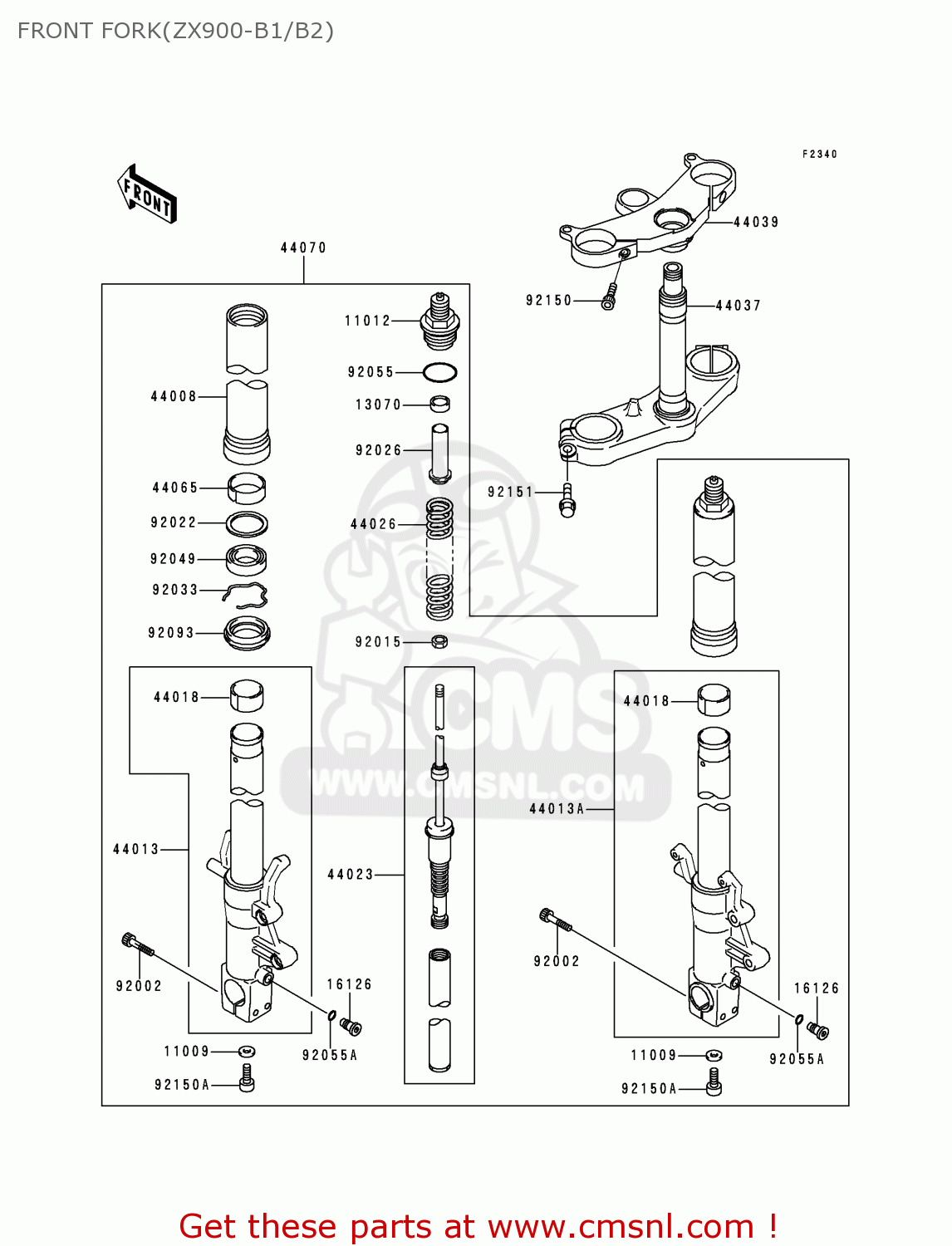

Front fork(zx900-b1/b2) diagram ZX900B2 NINJA ZX9R 1995 EU UK FR NL AR FG GR IT NR SD SP ST

FRONT FORK(ZX900-B1/B2) ZX900B2 NINJA ZX9R 1995 EU UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK(ZX900-B1/B2) ZX900B2 NINJA ZX9R 1995 EU UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK(ZX900-B1/B2) ZX900B2 NINJA ZX9R 1995 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
11012
110121748
ref: 11012
CAP,FORK TOP
110121748
€ 83.50
13070
130701236
ref: 13070
GUIDE,FORK
130701236
€ 6.00
16126
161261261
ref: 16126
VALVE,FORK
€ 91.00
44008
440081032JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 726.00
44013
440131395GD
ref: 44013
PIPE-FORK INNER,LH,G.
€ 332.50
44013A
440131396GD
ref: 44013A
PIPE-FORK INNER,RH,G.
€ 296.50
44018
440181054
ref: 44018
PISTON-FORK
440181054
€ 33.00
44023
440231094
ref: 44023
CYLINDER-COMP-FORK
€ 287.00
44026
440261558
ref: 44026
SPRING-FRONT FORK
€ 57.50
44037
440371318
ref: 44037
HOLDER-FORK UNDER
€ 453.00
44039
440391245
ref: 44039
HOLDER-FORK UPPER
440391245
€ 198.50
44065
440651096
ref: 44065
BUSHING-FRONT FORK,FO
440651096
€ 17.50
44070
440705173GD
ref: 44070
DAMPER-ASSY,FORK,G.GR
€ 2,388.00
92002
920021847
ref: 92002
BOLT,SOCKET,8X45
€ 3.00
92015
920151795
ref: 92015
NUT
€ 3.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261448
ref: 92026
SPACER,FORK
€ 14.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
920491356
€ 13.00
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92055A
920551201
ref: 92055A
RING-O,AND
920551201
€ 1.00
92093
920931359
ref: 92093
SEAL,FORK OUTER TUBE
920931359
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501398
ref: 92150A
BOLT,12X22
921501398
€ 5.50
92151
921511171
ref: 92151
BOLT
921511171
€ 5.50
