FRONT FORK
ZX900A2 NINJA 1985 USA CALIFORNIA CANADA

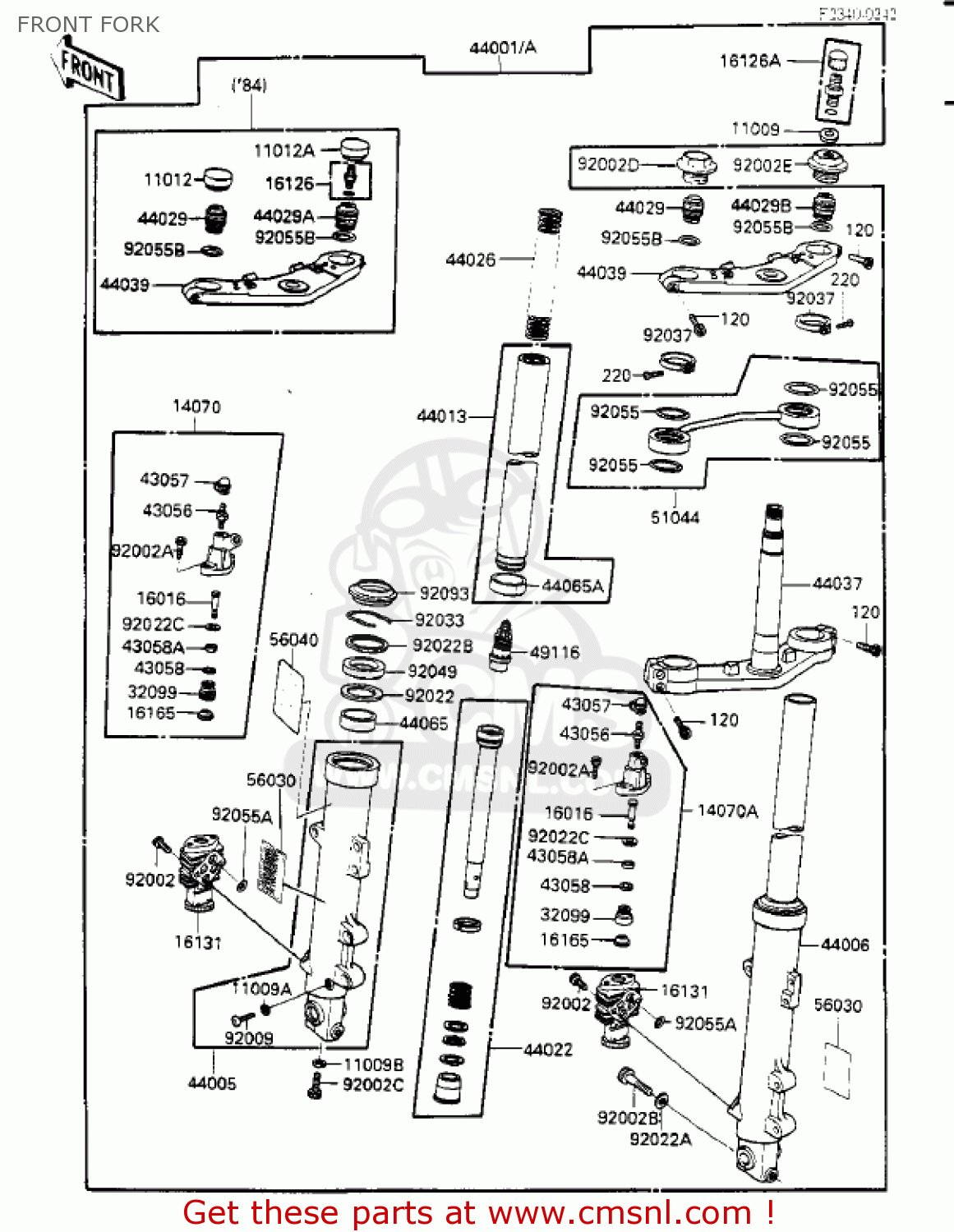

Front fork diagram ZX900A2 NINJA 1985 USA CALIFORNIA CANADA
FRONT FORK ZX900A2 NINJA 1985 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091477
ref: 11009
GASKET (NAS)
€ 2.50
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11012
110121404
ref: 11012
CAP,FORK
€ 10.50
11012A
110121413
ref: 11012A
CAP,FORK
€ 10.00
14070
140701056
ref: 14070
BODY-BREATHER,ANTI-DI
€ 165.00
14070A
140701057
ref: 14070A
BODY-BREATHER,ANTI-DI
€ 165.00
16016
160161063
ref: 16016
PLUNGER,ANTI-DIVE
€ 22.00
16126
161261050
ref: 16126
VALVE AIR
€ 22.00
16126A
161261052
ref: 16126A
VALVE,AIR
€ 22.00
16131
161311057
ref: 16131
BODY-VALVE
€ 150.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
€ 2.50
44001
440011523
ref: 44001
FORK-FRONT
€ 1,621.00
44001A
440011564
ref: 44001A
FORK-FRONT
€ 3,020.50
44005
440051217
ref: 44005
PIPE-LEFT FORK OUTER
€ 329.50
44006
440061217
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131219
ref: 44013
PIPE-FORK INNER
€ 296.00
44022
440221167
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261277
ref: 44026
SPRING-FRONT FORK
€ 54.00
44029
440291109
ref: 44029
SEAT-FORK SPRING,LH
€ 27.00
44029A
440291114
ref: 44029A
SEAT-FORK SPRING,RH
€ 41.50
44029B
440291114
ref: 44029B
SEAT-FORK SPRING,RH
€ 41.50
44037
440371167
ref: 44037
HOLDER-FORK UNDER
€ 276.00
44039
440391103
ref: 44039
HOLDER-FORK UPPER
€ 203.50
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
€ 17.00
44065A
920281126
ref: 44065A
BUSHING-FRONT FORK,IN
€ 31.50
49116
491161055
ref: 49116
VALVE-ASSY,FORK
€ 80.00
51044
510441059
ref: 51044
TUBE-ASSY,AIR,FORK
€ 64.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
€ 2.50
56040
560401110
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92002
920021166
ref: 92002
BOLT,SOCKET,6X16
€ 4.50
92002A
920021289
ref: 92002A
BOLT,SOCKET,5X12
€ 2.50
92002B
920021316
ref: 92002B
BOLT
€ 3.50
92002C
920021317
ref: 92002C
BOLT
€ 4.50
92002D
920021419
ref: 92002D
BOLT,FORK TOP,LH
€ 31.00
92002E
920021420
ref: 92002E
BOLT,FORK TOP,RH
€ 33.00
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
920221599
ref: 92022B
WASHER,FORK OUTER PIP
€ 4.50
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371277
ref: 92037
CLAMP,FRONT FORK
€ 6.00
92049
920491178
ref: 92049
SEAL-OIL,FORK
€ 18.50
92055
920551369
ref: 92055
RING-O,ROD
€ 6.50
92055A
920551201
ref: 92055A
RING-O,AND
€ 1.00
92055B
920551250
ref: 92055B
RING-O,FORK SPRING SE
€ 2.50
92093
920931162
ref: 92093
SEAL,FORK
€ 18.00
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
220
220E0414
ref: 220
SCREW-PAN-CROS
€ 2.00
