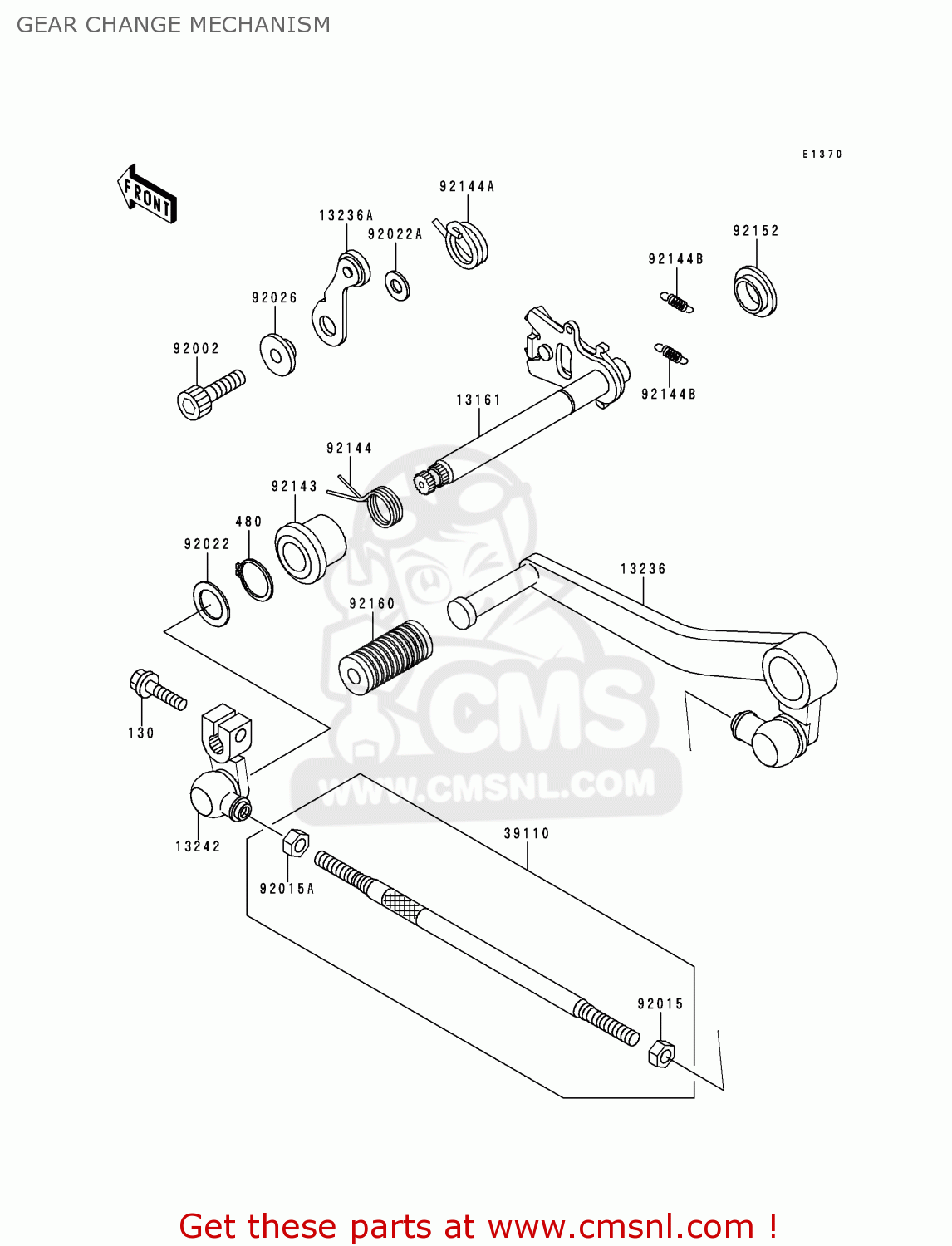

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611223
ref: 13161

LEVER-COMP-CHANGE SHA

€ 68.50

13236

132361204
ref: 13236

LEVER-COMP,CHANGE PED

€ 47.00

13236A

132361253
ref: 13236A

LEVER-COMP,POSITION

€ 7.50

13242

132421278
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 26.00

39110

391101100
ref: 39110

ROD-ASSY-TIE

€ 12.50

92002

920021778
ref: 92002

BOLT,SOCKET,6X16

€ 3.00

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92143

921431498
ref: 92143

COLLAR,RETURN SPRING

€ 7.00

92144

921441628
ref: 92144

SPRING,CHANGE SHAFT R

€ 6.50

92144A

921441873
ref: 92144A

SPRING,LEVER POSITION

€ 5.00

92144B

921441975
ref: 92144B

SPRING,CHANGE LEVER

€ 3.00

92152

921521075
ref: 92152

COLLAR

€ 2.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
