Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR

ZX750P4 NINJA ZX7R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

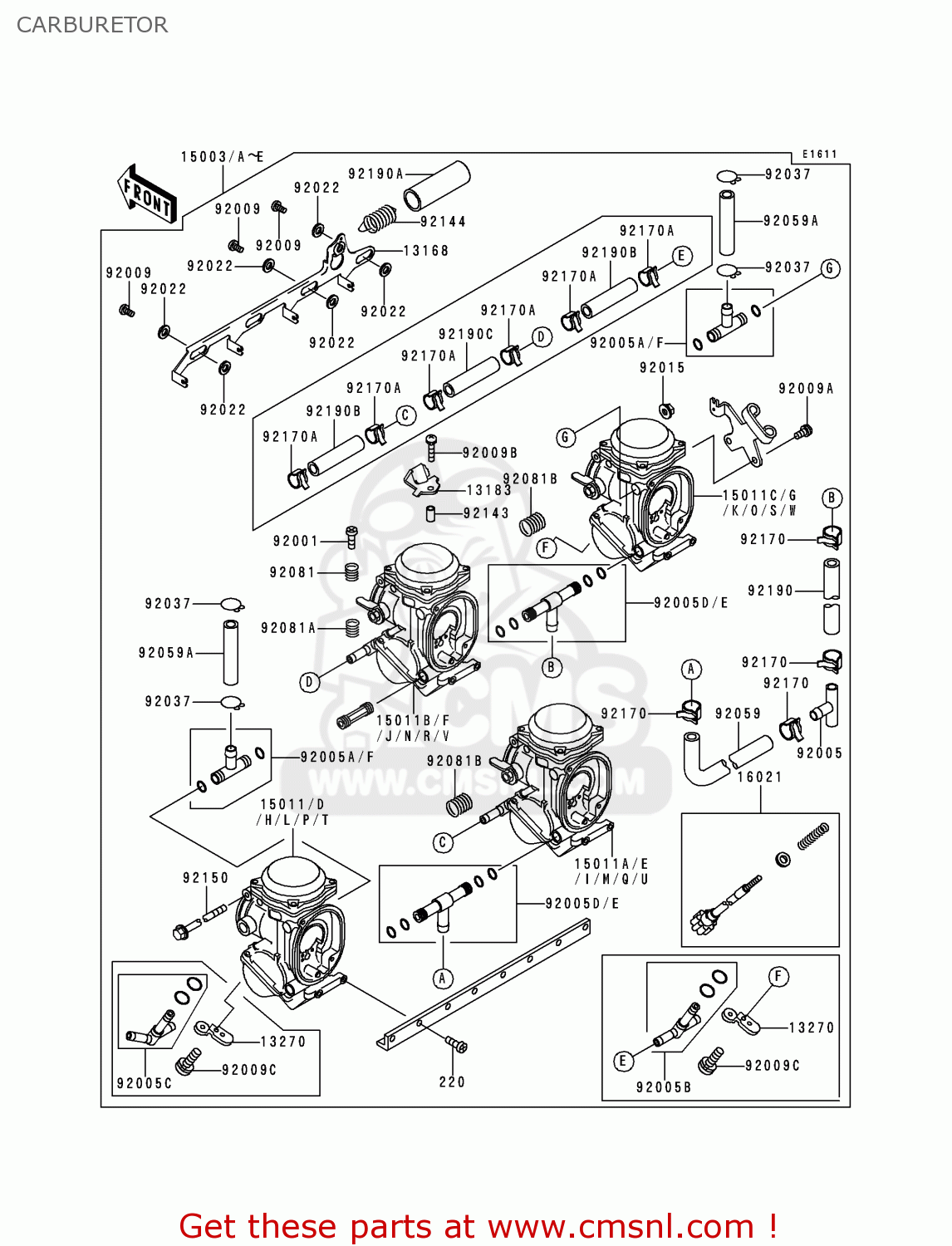

Carburetor diagram ZX750P4 NINJA ZX7R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR ZX750P4 NINJA ZX7R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR ZX750P4 NINJA ZX7R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR ZX750P4 NINJA ZX7R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13168
131681593
ref: 13168
LEVER,STARTER
€ 88.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
131831592
€ 26.00
13270
132701080
ref: 13270
ARFGFRITNLSTUK
PLATE,FITTING STAY
132701080
€ 4.50
15003
150031207
ref: 15003
EUGRNRSP
CARBURETOR-ASSY
€ 2,146.50
15003B
150031262
ref: 15003B
ARFGITNLUK
CARBURETOR-ASSY
€ 2,190.50
15003C
150031263
ref: 15003C
SD
CARBURETOR-ASSY
€ 1,912.50
15003D
150031264
ref: 15003D
ST
CARBURETOR-ASSY
€ 2,807.00
15003E
150031441
ref: 15003E
FR
CARBURETOR-ASSY
€ 2,190.50
15011
150111211
ref: 15011
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 655.50
15011A
150111212
ref: 15011A
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 655.50
15011B
150111213
ref: 15011B
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 655.50
15011C
150111214
ref: 15011C
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 655.50
15011H
150111219
ref: 15011H
ARFGITNLUK
CARBURETOR,LH,OUTSIDE
€ 655.50
15011I
150111220
ref: 15011I
ARFGITNLUK
CARBURETOR,LH,INSIDE
€ 856.50
15011J
150111221
ref: 15011J
ARFGITNLUK
CARBURETOR,RH,INSIDE
€ 655.50
15011K
150111222
ref: 15011K
ARFGITNLUK
CARBURETOR,RH,OUTSIDE
€ 655.50
15011L
150111223
ref: 15011L
SD
CARBURETOR,LH,OUTSIDE
€ 655.50
15011M
150111224
ref: 15011M
SD
CARBURETOR,LH,INSIDE
€ 584.00
15011N
150111225
ref: 15011N
SD
CARBURETOR,RH,INSIDE
€ 584.00
15011O
150111226
ref: 15011O
SD
CARBURETOR,RH,OUTSIDE
€ 584.00
15011P
150111227
ref: 15011P
ST
CARBURETOR,LH,OUTSIDE
€ 912.00
15011Q
150111228
ref: 15011Q
ST
CARBURETOR,LH,INSIDE
€ 912.00
15011R
150111229
ref: 15011R
ST
CARBURETOR,RH,INSIDE
€ 912.00
15011S
150111230
ref: 15011S
ST
CARBURETOR,RH,OUTSIDE
€ 912.00
15011T
150111490
ref: 15011T
FR
CARBURETOR,LH,OUTSIDE
€ 935.00
15011U
150111491
ref: 15011U
FR
CARBURETOR,LH,INSIDE
€ 935.00
15011V
150111492
ref: 15011V
FR
CARBURETOR,RH,INSIDE
€ 935.00
15011W
150111493
ref: 15011W
FR
CARBURETOR,RH,OUTSIDE
€ 935.00
16021
160211190
ref: 16021
SCREW-THROTTLE STOP
160211190
€ 81.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051272
ref: 92005
FITTING,T-TYPE
920051272
€ 15.50
92005A
920051288
ref: 92005A
AREUFGGRITNLNRSDSPST
FITTING
920051288
€ 22.00
92005B
920051290
ref: 92005B
ARFGFRITNLSTUK
FITTING
920051290
€ 28.00
92005C
920051291
ref: 92005C
ARFGFRITNLSTUK
FITTING
920051291
€ 26.50
92005D
920051306
ref: 92005D
AREUFGGRITNLNRSDSPST
FITTING
920051306
€ 19.00
92005E
920051338
ref: 92005E
FR
FITTING
920051338
€ 17.00
92005F
920051347
ref: 92005F
FR
FITTING
920051347
€ 18.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091597
ref: 92009A
SCREW
920091597
€ 4.50
92009B
920091632
ref: 92009B
SCREW
920091632
€ 4.00
92009C
920091704
ref: 92009C
ARFGFRITNLSTUK
SCREW
920091704
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371194
ref: 92037
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92059
920591029
ref: 92059
TUBE,FUEL,7.3X12.5X20
920591029
€ 18.50
92059A
920591738
ref: 92059A
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92144
921441518
ref: 92144
SPRING,STARTER LEVER
921441518
€ 14.50
92150
921501416
ref: 92150
BOLT
921501416
€ 22.00
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701504
ref: 92170A
ARFGFRITNLSTUK
CLAMP
921701504
€ 3.00
92190
921901053
ref: 92190
TUBE,7.3X12.5X80
€ 3.50
92190A
921901157
ref: 92190A
TUBE,STARTER SPRING
€ 4.50
92190B
921901530
ref: 92190B
ARFGFRITNLSTUK
TUBE,WATER
€ 7.50
92190C
921901531
ref: 92190C
ARFGFRITNLSTUK
TUBE,WATER
€ 7.50
