ENGINE COVER(S)

ZX750P3 NINJA ZX7R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

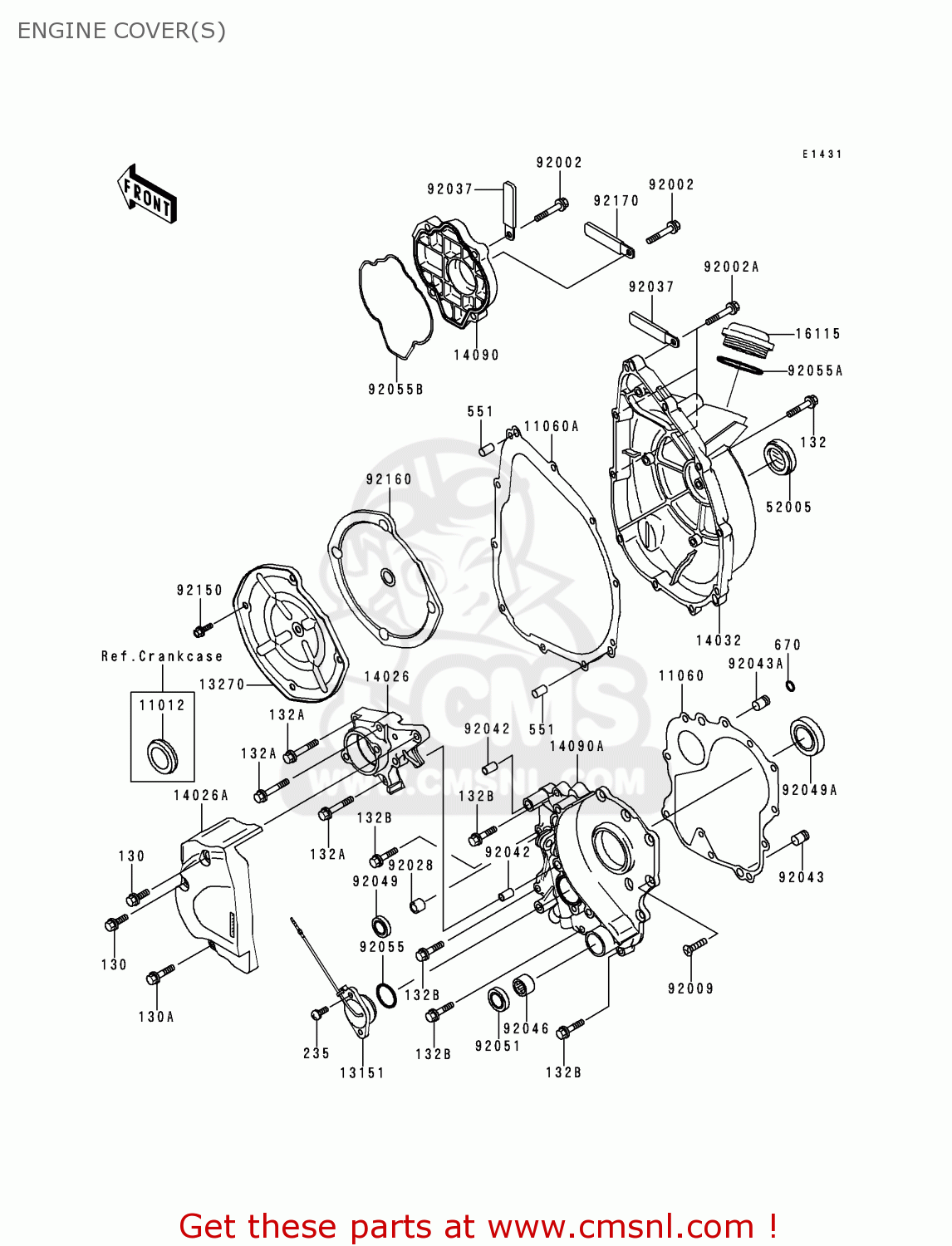

Engine cover(s) diagram ZX750P3 NINJA ZX7R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST

ENGINE COVER(S) ZX750P3 NINJA ZX7R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZX750P3 NINJA ZX7R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZX750P3 NINJA ZX7R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132A
132J0635
ref: 132A
BOLT-FLANGED-SMALL
132J0635
€ 2.50
132B
132Y0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.50
235
235C0516
ref: 235
SCREW-PAN-WP-CROS
€ 1.00
551
551A0814
ref: 551
PIN-DOWEL,8X14
551A0814
€ 0.50
670
670B1505
ref: 670
O RING,5MM
670B1505
€ 1.00
11012
110121770
ref: 11012
CAP,LH
110121770
€ 9.00
11060
110601703
ref: 11060
GASKET,TRANSMISSION C (NAS)
110601703
€ 40.00
11060A
110601704
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601704
€ 21.00
13151
131511081
ref: 13151
SWITCH-COMP
131511081
€ 20.00
13270
132701580
ref: 13270
PLATE,CLUTCH COVER (NAS)
€ 8.50
14026
140261228
ref: 14026
COVER-CHAIN,FR
140261228
€ 80.50
14026A
140261229
ref: 14026A
COVER-CHAIN,RR
140261229
€ 95.00
14032
140321427
ref: 14032
COVER-CLUTCH
140321427
€ 185.50
14090
140901630
ref: 14090
COVER,PULSING
140901630
€ 20.00
14090A
140901632
ref: 14090A
COVER,TRANSMISSION
€ 146.50
16115
161151064
ref: 16115
CAP-OIL FILLER
161151064
€ 5.00
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021534
ref: 92002A
BOLT,6X30
920021534
€ 4.00
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92028
920281750
ref: 92028
BUSHING,8X12X10
920281750
€ 4.00
92037
920371877
ref: 92037
CLAMP
920371877
€ 3.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431456
ref: 92043A
PIN
920431456
€ 6.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491361
ref: 92049A
SEAL-OIL
920491361
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055091
ref: 92055
0 RING
92055091
€ 4.00
92055A
920551295
ref: 92055A
RING-O,38MM
920551295
€ 11.00
92055B
920551543
ref: 92055B
RING-O,PULSING COVER
920551543
€ 10.50
92150
921501406
ref: 92150
BOLT
921501406
€ 2.00
92160
921601702
ref: 92160
DAMPER,CLUTCH COVER
921601702
€ 15.00
92170
921701514
ref: 92170
CLAMP
921701514
€ 2.50
