FRONT WHEEL

ZX750P2 NINJA ZX7R 1997 USA CALIFORNIA CANADA

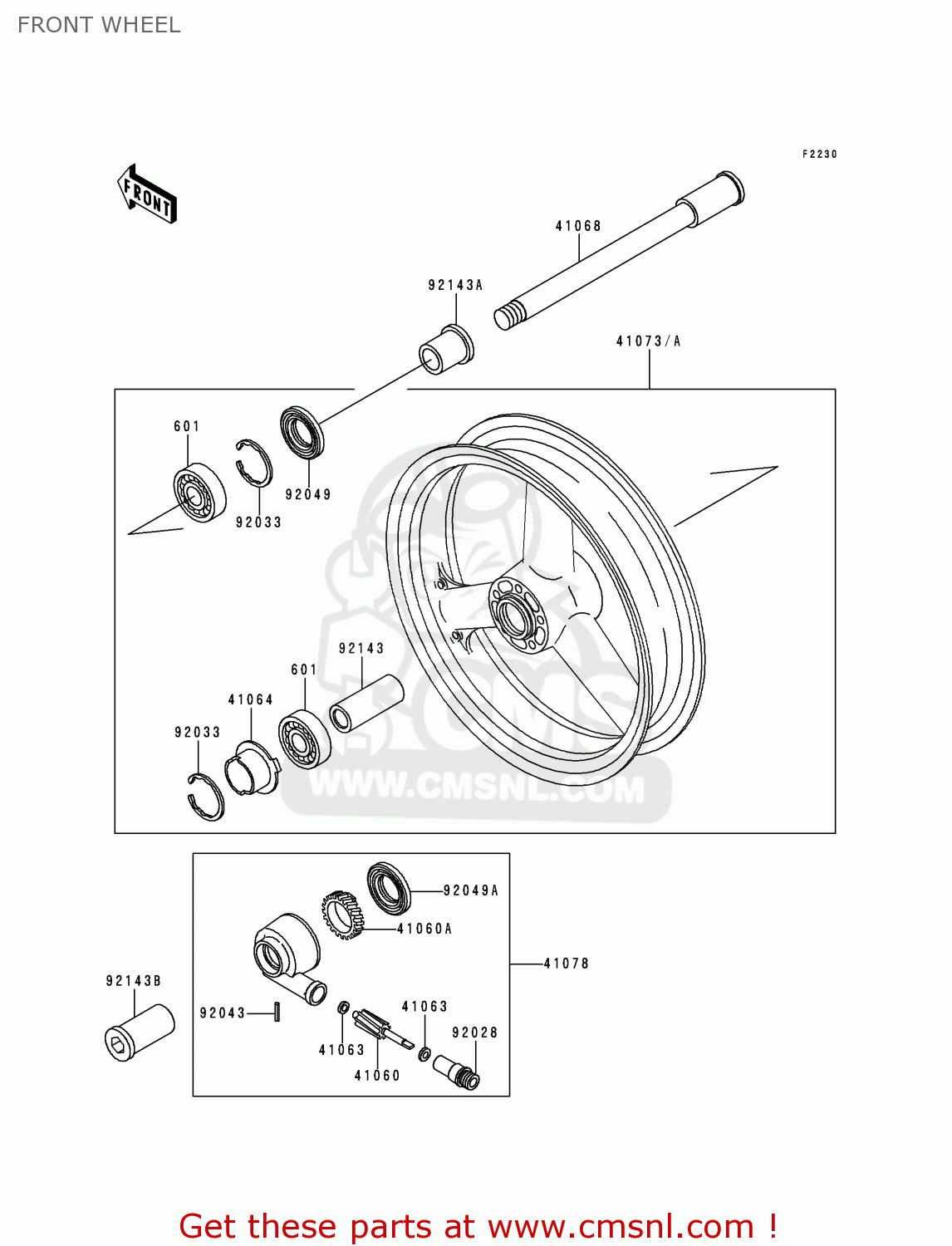

Front wheel diagram ZX750P2 NINJA ZX7R 1997 USA CALIFORNIA CANADA

FRONT WHEEL ZX750P2 NINJA ZX7R 1997 USA CALIFORNIA CANADA

FRONT WHEEL ZX750P2 NINJA ZX7R 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 26.00

41060

410601140
ref: 41060

GEAR-METER SCREW,9T

€ 20.50

41060A

410601141
ref: 41060A

GEAR-METER SCREW,24T

€ 25.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641055
ref: 41064

RECEIVER-SPEEDOMETER

€ 10.00

41068

410681327
ref: 41068

AXLE,FR

€ 61.50

41073

410731496DH
ref: 41073

WHEEL-ASSY,FR,P.C.GRA

€ 775.00

41073A

410731496F8
ref: 41073A

WHEEL-ASSY,FR,J.S.VIO

€ 814.00

41078

410781082
ref: 41078

CASE-ASSY-METER GEAR

€ 105.50

92028

920281634
ref: 92028

BUSHING,METER GEAR CA

€ 11.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92043

920431454
ref: 92043

PIN,SPRING,3X18

€ 2.50

92049

920491377
ref: 92049

SEAL-OIL,BJN 32 47 5

€ 9.50

92049A

920491378
ref: 92049A

SEAL-OIL,BJN-C2 35 52

€ 9.00

92143

921431476
ref: 92143

COLLAR,FR HUB,L=94

€ 22.50

92143A

921431477
ref: 92143A

COLLAR,FR AXLE,RH,L=1

€ 22.00

92143B

921431478
ref: 92143B

COLLAR,FR AXLE,LH,L=4

€ 32.50
