FUEL TANK(ZX750-P1∼P3)

ZX750P1 NINJA ZX7R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

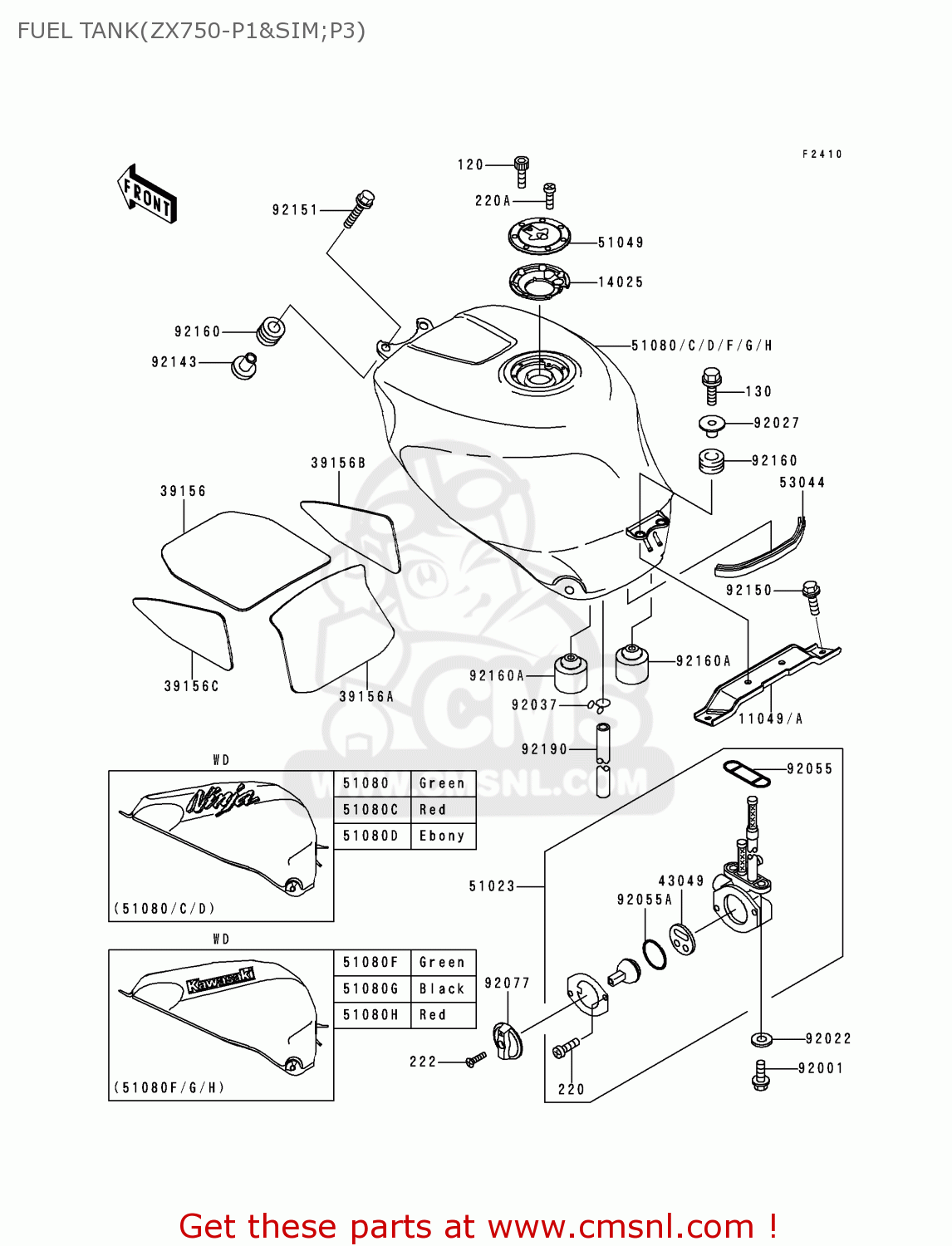

Fuel tank(zx750-p1∼p3) diagram ZX750P1 NINJA ZX7R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

FUEL TANK(ZX750-P1∼P3) ZX750P1 NINJA ZX7R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FUEL TANK(ZX750-P1∼P3) ZX750P1 NINJA ZX7R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FUEL TANK(ZX750-P1∼P3) ZX750P1 NINJA ZX7R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
11049
110491338
ref: 11049
BRACKET,FUEL TANK,RR
€ 22.50
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
39156
391561312
ref: 39156
PAD,FUEL TANK,FR
391561312
€ 13.50
39156A
391561313
ref: 39156A
PAD,FUEL TANK,RR
391561313
€ 12.00
39156B
391561314
ref: 39156B
PAD,FUEL TANK,SIDE,RH
391561314
€ 9.00
39156C
391561315
ref: 39156C
PAD,FUEL TANK,SIDE,LH
391561315
€ 9.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
430491066
€ 5.00
51023
510231221
ref: 51023
TAP-ASSY,FUEL
€ 74.50
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
51080
5108052637F
ref: 51080
TANK-COMP-FUEL,L.GREE
€ 950.50
51080C
510805272B1
ref: 51080C
TANK-COMP-FUEL,F.RED
€ 864.00
53044
530441296
ref: 53044
TRIM
530441296
€ 8.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92055A
920551419
ref: 92055A
RING-O,TAP LEVER
920551419
€ 3.00
92077
920771120
ref: 92077
KNOB,FUEL TAP
920771120
€ 9.00
92143
921431515
ref: 92143
COLLAR
921431515
€ 13.50
92150
921501633
ref: 92150
BOLT,FLANGED,6X20
921501633
€ 2.50
92151
921511105
ref: 92151
BOLT
921511105
€ 2.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601513
ref: 92160A
DAMPER
921601513
€ 4.50
92190
921901418
ref: 92190
TUBE,DRAIN
921901418
€ 13.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
222
222C0412
ref: 222
SCREW-CSK-RD-CROS
222C0412
€ 1.50
