CARBURETOR PARTS

ZX750M1 NINJA ZX7R 1993 USA CALIFORNIA CANADA

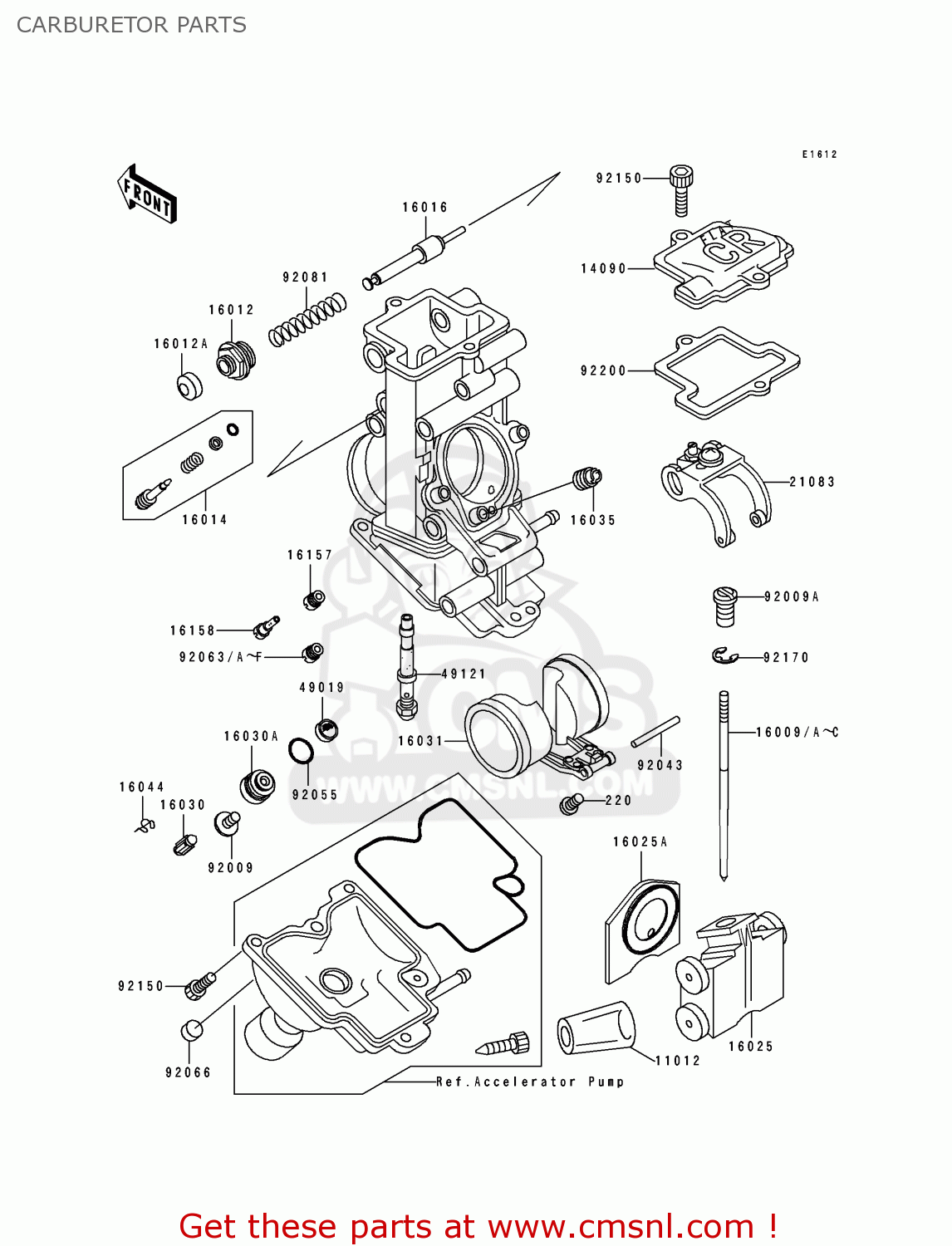

Carburetor parts diagram ZX750M1 NINJA ZX7R 1993 USA CALIFORNIA CANADA

CARBURETOR PARTS ZX750M1 NINJA ZX7R 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX750M1 NINJA ZX7R 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX750M1 NINJA ZX7R 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
14090
140901150
ref: 14090
COVER,CHAMBER TOP
€ 39.00
16009
160091780
ref: 16009
CN
NEEDLE-JET,N1MA,OUTSI
€ 20.00
16009A
160091781
ref: 16009A
CN
NEEDLE-JET,N1HC,INSID
160091781
€ 20.00
16009B
160091782
ref: 16009B
CAUS
JET,NEEDLE,#N1NA,OUTSIDE
€ 20.00
16009C
160091783
ref: 16009C
CAUS
JET,NEEDLE,#N1GC,INSIDE
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141075
ref: 16014
SCREW-PILOT AIR
160141075
€ 13.50
16016
160161081
ref: 16016
PLUNGER, STARTER
€ 28.00
16025
160251177
ref: 16025
VALVE-THROTTLE
160251177
€ 424.50
16025A
160251178
ref: 16025A
VALVE-THROTTLE
€ 202.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301073
ref: 16030A
SEAT-VALVE,FLOAT
160301073
€ 44.50
16031
160311072
ref: 16031
FLOAT
€ 37.50
16035
160351064
ref: 16035
JET-AIR,#140
€ 10.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16157
161571061
ref: 16157
JET-STARTER,#55
161571061
€ 14.50
16158
161581051
ref: 16158
JET-SLOW,#42
161581051
€ 12.50
21083
210831095
ref: 21083
ARM,THROTTLE VALVE
€ 219.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
49121
491211057
ref: 49121
NOZZLE-MAIN
€ 20.50
92009
920091550
ref: 92009
SCREW,4X8
920091550
€ 2.50
92009A
920091630
ref: 92009A
SCREW,NEEDLE
920091630
€ 9.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551425
ref: 92055
RING-O,VALVE SEAT
920551425
€ 4.50
92063
920631008
ref: 92063
JET-MAIN,#100
920631008
€ 9.00
92063A
920631094
ref: 92063A
JET-MAIN,#70
€ 8.00
92063B
920631388
ref: 92063B
JET-MAIN,#180
920631388
€ 10.50
92063C
920631390
ref: 92063C
JET-MAIN,#185
920631390
€ 9.00
92063D
920631391
ref: 92063D
JET-MAIN,#190
920631391
€ 10.50
92063E
920631392
ref: 92063E
JET-MAIN,#195
920631392
€ 8.00
92063F
920631401
ref: 92063F
JET-MAIN,#200
920631401
€ 8.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92150
921501427
ref: 92150
BOLT,SOCKET,4X10
€ 6.00
92170
921701204
ref: 92170
CLAMP,JET NEEDLE
921701204
€ 2.00
92200
922001116
ref: 92200
GASKET,MIXING CHAMBER (NAS)
922001116
€ 9.50
