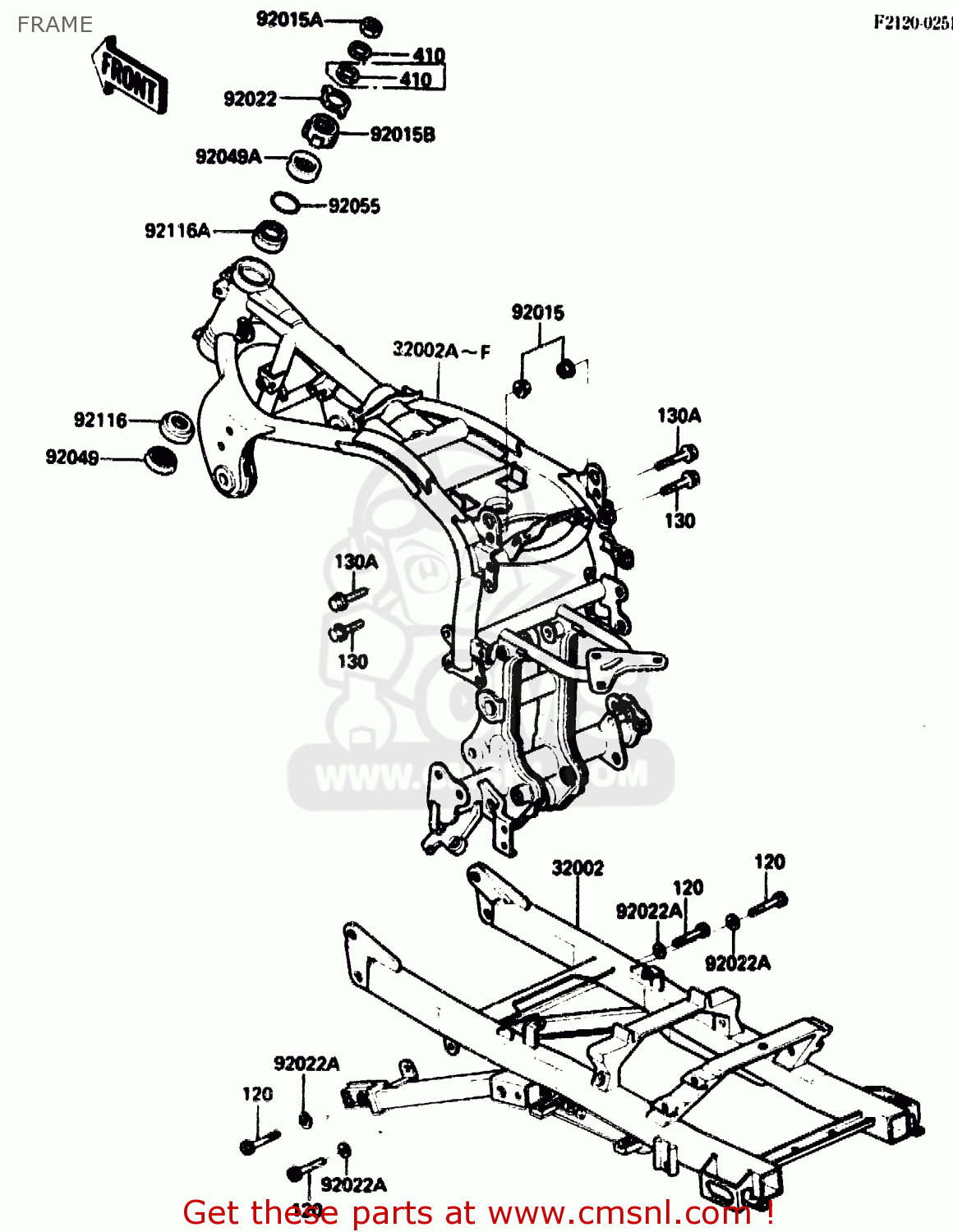

FRAME

ref

part #

description

quantity

32002

32002171210
ref: 32002

FRAME-COMP,AL,RR

€ 826.00

32002A

320021771
ref: 32002A
EU, FR, GR, IT, NR,

FRAME-COMP,FR

€ 1,039.50

32002B

320021772
ref: 32002B
WG (SUBSTITUTES 3200

FRAME-COMP,FR

€ 972.00

32002C

320021773
ref: 32002C
SD (SUBSTITUTES 3200

FRAME-COMP,FR

€ 717.00

32002D

320021842
ref: 32002D
EU, FR, GR, IT, NR,

FRAME-COMP,FR

€ 1,039.50

32002E

320021843
ref: 32002E
WG

FRAME-COMP,FR

€ 972.00

32002F

320021845
ref: 32002F
SD

FRAME-COMP,FR

€ 872.50

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151404
ref: 92015A

NUT,18MM

€ 15.50

92015B

920151546
ref: 92015B

NUT,25MM,T=12

€ 14.50

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92022A

920221595
ref: 92022A

WASHER,8.5X16X2.5

€ 1.00

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92055

920551160
ref: 92055

RING-0,24.7MM

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

120

120P0825
ref: 120

BOLT,SOCKET,8X25

€ 1.50

130

130G0820
ref: 130

BOLT,FLANGED,8X20

€ 0.50

130A

130G0825
ref: 130A

BOLT,FLANGED,8X25

€ 0.50

410

410F1800
ref: 410
EU, FR, GR, IT, NR,

W-PLAIN-S

€ 3.00

410

410F1800
ref: 410
WG

W-PLAIN-S

€ 3.00

all assemblies
