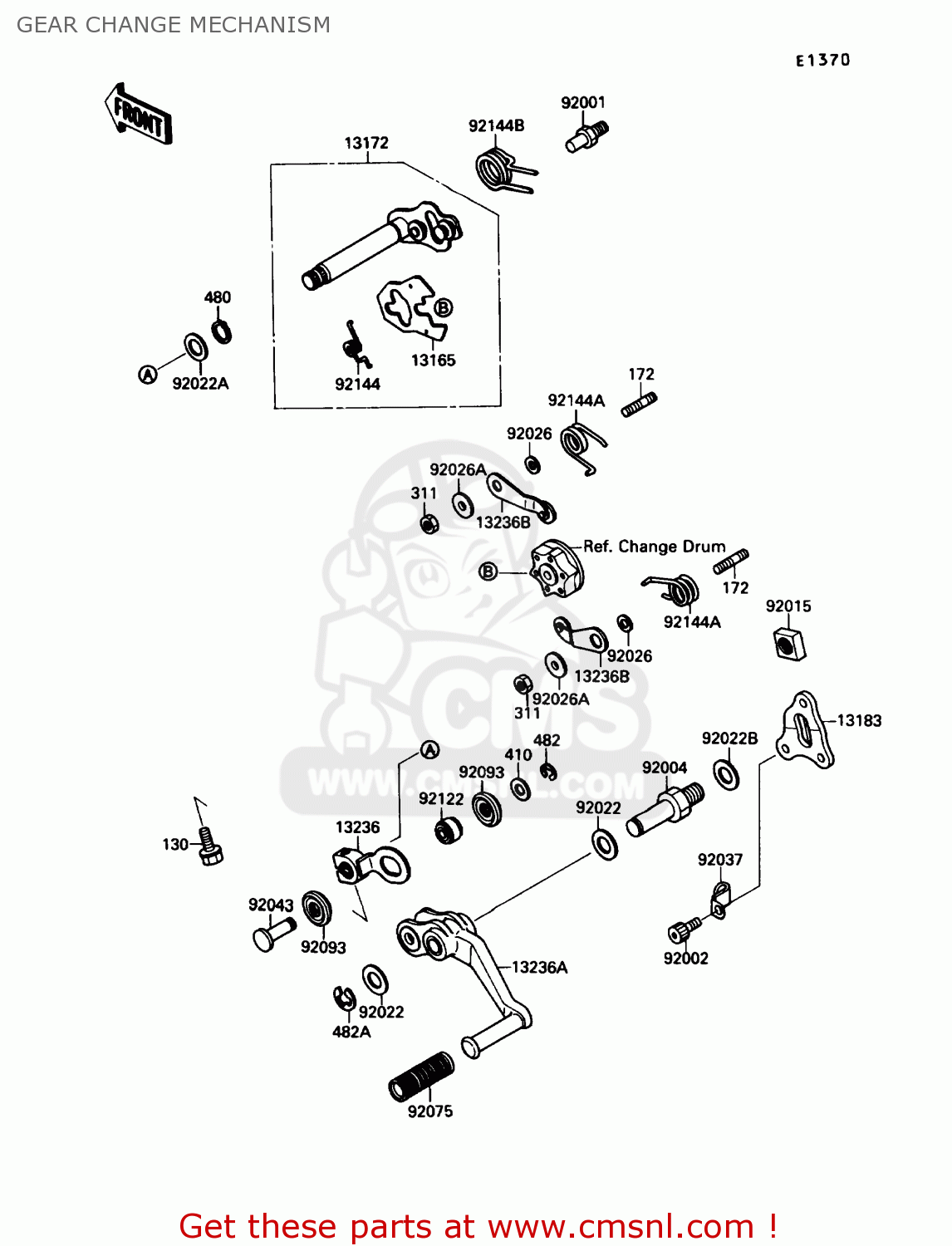

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

410

410D0800
ref: 410

WASHER-PLAIN,8MM

€ 2.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

482

482K6000
ref: 482

CIRCLIP-TYPE-E,6MM

€ 2.00

482A

482L9000
ref: 482A

CIRCLIP-TYPE-E

€ 2.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13172

131721064
ref: 13172

SHAFT-ASSY-CHANGE

€ 72.00

13183

131831026
ref: 13183

PLATE

€ 10.50

13236

132361147
ref: 13236

LEVER-COMP,CHANGE LIN

€ 18.50

13236A

132361148
ref: 13236A

LEVER-COMP,CHANGE PED

€ 44.00

13236B

132361149
ref: 13236B

LEVER-COMP,POSITION

€ 11.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021592
ref: 92002

BOLT,6X12

€ 2.50

92004

920041163
ref: 92004

STUD,CHANGE PEDAL,PIV

€ 10.00

92015

920151605
ref: 92015

NUT,12MM

€ 4.50

92022

920221065
ref: 92022

WASHER,12.3X22X1.6

€ 2.50

92022A

920221496
ref: 92022A

WASHER,13.3X20X1

€ 2.50

92022B

920221862
ref: 92022B

WASHER,12.3X25X3.2

€ 4.00

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92037

920371877
ref: 92037

CLAMP

€ 3.00

92043

920431324
ref: 92043

PIN

€ 4.00

92075

13157004
ref: 92075

RUBBER-CHANGE PEDAL

€ 4.00

92093

920931220
ref: 92093

SEAL

€ 4.00

92122

921221140
ref: 92122

ROLLER

€ 5.50

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441030
ref: 92144A

SPRING,NEWTRAL LEVER

€ 3.00

92144B

921441074
ref: 92144B

SPRING,CHANGE PEDAL R

€ 6.50
