CRANKCASE BOLT PATTERN

ZX750F2 NINJA 750R 1988 USA CALIFORNIA CANADA

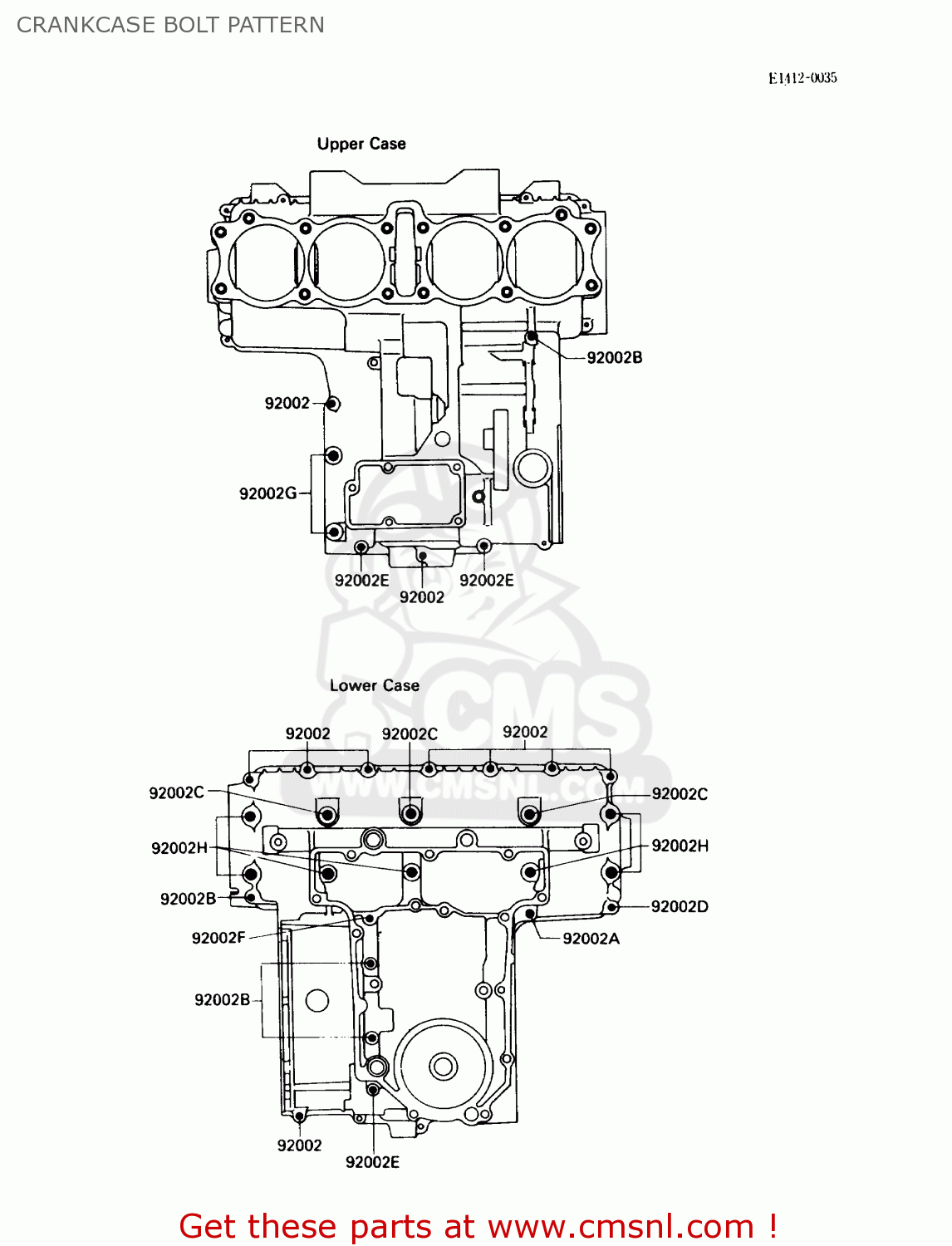

Crankcase bolt pattern diagram ZX750F2 NINJA 750R 1988 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750F2 NINJA 750R 1988 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750F2 NINJA 750R 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021055
ref: 92002B

BOLT,6X90

€ 3.00

92002C

920021057
ref: 92002C

BOLT,8X90

€ 6.50

92002D

920021138
ref: 92002D

BOLT,6X30

€ 3.00

92002E

920021791
ref: 92002E

BOLT,6X110

€ 3.50

92002F

920021792
ref: 92002F

BOLT,6X130

€ 4.00

92002G

920021793
ref: 92002G

BOLT,8X70

€ 3.50

92002H

920021794
ref: 92002H

BOLT,8X83

€ 4.50
