FRONT MASTER CYLINDER

ZX750A3 GPZ750 1985 USA CALIFORNIA CANADA

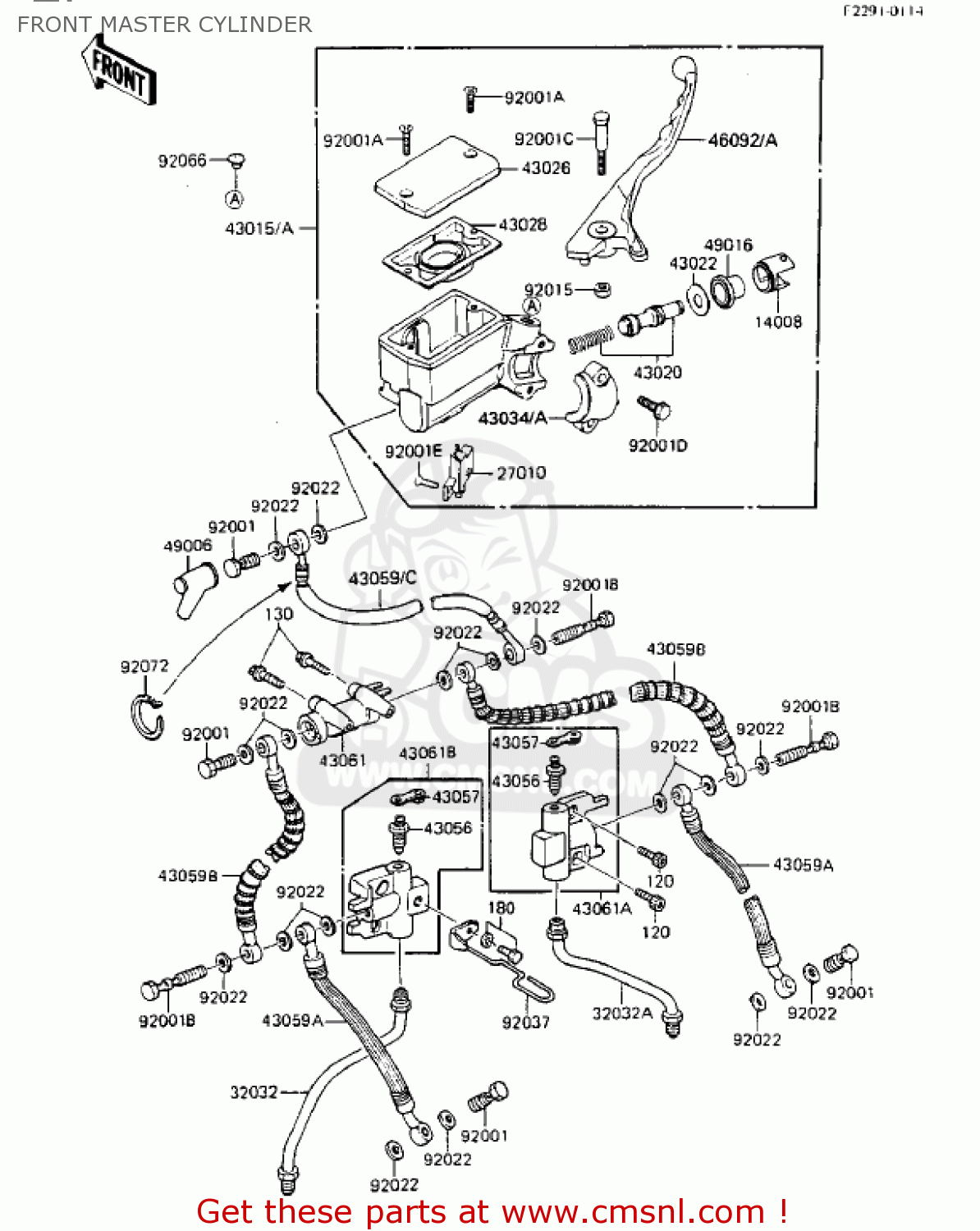

Front master cylinder diagram ZX750A3 GPZ750 1985 USA CALIFORNIA CANADA

FRONT MASTER CYLINDER ZX750A3 GPZ750 1985 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER ZX750A3 GPZ750 1985 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER ZX750A3 GPZ750 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14008
140081035
ref: 14008
LINER,PISTON
140081035
€ 8.00
27010
270101056
ref: 27010
SWITCH,BRAKE
270101056
€ 24.50
32032
320331061
ref: 32032
PIPE,BRAKE,FR,LH
320331061
€ 15.00
32032A
320331062
ref: 32032A
PIPE,BRAKE,FR,RH
320331062
€ 15.00
43015
430151085
ref: 43015
CYLINDER-ASSY-MASTER,
€ 275.00
43015A
430151089
ref: 43015A
CYLINDER-ASSY-MASTER
€ 277.00
43020
430201079
ref: 43020
PISTON-COMP-BRAKE
430201079
€ 59.00
43022
430221009
ref: 43022
STOPPER-BRAKE,PISTON
430221009
€ 3.50
43026
430261017
ref: 43026
CAP-BRAKE,FR
€ 26.50
43028
430281029
ref: 43028
DIAPHRAGM,MASTER CYLI
430281029
€ 17.50
43034
430341001
ref: 43034
HOLDER-BRAKE,MASTER C
430341001
€ 20.50
43034A
430341013
ref: 43034A
HOLDER-BRAKE,MASTER C
430341013
€ 20.00
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43059
430591163
ref: 43059
HOSE-BRAKE,FR,L=310,W
430591163
€ 62.00
43059A
430591164
ref: 43059A
HOSE-BRAKE,FR,L=186
430591164
€ 61.50
43059B
430591167
ref: 43059B
HOSE-BRAKE,L=325
€ 62.00
43059C
430591252
ref: 43059C
HOSE-BRAKE,FR,L=340,W
€ 56.50
43061
430611004
ref: 43061
JOINT-BRAKE
430611004
€ 51.50
43061A
430611005
ref: 43061A
JOINT-BRAKE,FR,RH
430611005
€ 36.50
43061B
430611006
ref: 43061B
JOINT-BRAKE,FR,LH
430611006
€ 38.00
46092
460921026
ref: 46092
LEVER-GRIP,FRONT BRAK
460921026
€ 15.00
46092A
460921027
ref: 46092A
LEVER-GRIP,FRONT BRAK
460921027
€ 22.00
49006
490061041
ref: 49006
BOOT,DUST
490061041
€ 7.50
49016
490161041
ref: 49016
COVER-SEAL,BRAKE PIST
490161041
€ 8.50
92001
920021888
ref: 92001
BOLT,OIL,L=23
920021888
€ 3.50
92001A
920011055
ref: 92001A
SCREW,COUNTERSUNK HED
920011055
€ 3.50
92001B
920021909
ref: 92001B
BOLT
920021909
€ 8.50
92001C
920011512
ref: 92001C
BOLT,6X37.3,BLACK
920011512
€ 5.50
92001D
920011513
ref: 92001D
BOLT,BOLT,6X25,W/WASH
€ 3.00
92001E
920011532
ref: 92001E
SCREW-COUNTERSUNK
920011532
€ 2.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
920371393
ref: 92037
CLAMP,BRAKE HOSE,LH,B
920371393
€ 10.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
920661077
€ 3.00
92072
92072056
ref: 92072
BAND,RUBBER
92072056
€ 3.00
120
120S0614
ref: 120
BOLT-SOCKET,6X14,BLAC
120S0614
€ 2.50
130
130G0660
ref: 130
BOLT-FLANGED,6X60
130G0660
€ 3.00
180
180C0612
ref: 180
BOLT-UPSET-WS
180C0612
€ 2.50
