STARTER MOTOR

ZX636D6F NINJA ZX6R 2006 USA CALIFORNIA CANADA

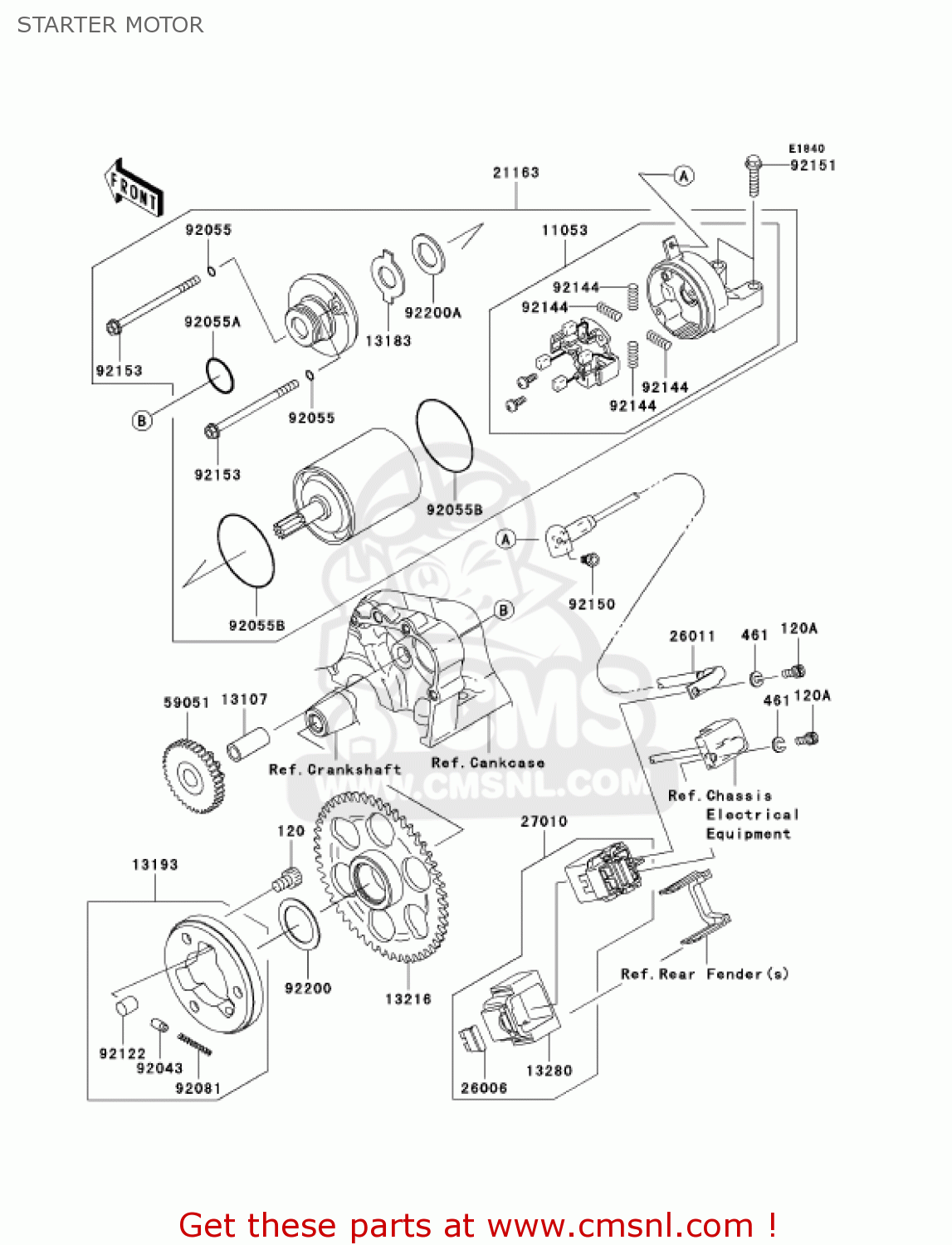

Starter motor diagram ZX636D6F NINJA ZX6R 2006 USA CALIFORNIA CANADA

STARTER MOTOR ZX636D6F NINJA ZX6R 2006 USA CALIFORNIA CANADA
STARTER MOTOR ZX636D6F NINJA ZX6R 2006 USA CALIFORNIA CANADA
STARTER MOTOR ZX636D6F NINJA ZX6R 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0812
ref: 120
BOLT,SOCKET,8X12
120P0812
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
120S0510
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
11053
110530224
ref: 11053
BRACKET,STARTER
110530224
€ 148.00
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
131071176
€ 6.50
13183
131831460
ref: 13183
PLATE
€ 9.00
13193
131930001
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 129.50
13216
132160011
ref: 13216
GEAR-COMP,ONEWAY CLUT
€ 149.50
13280
132800109
ref: 13280
HOLDER,SWITCH
132800109
€ 9.00
21163
211630006
ref: 21163
STARTER-ELECTRIC
€ 667.50
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260110065
ref: 26011
WIRE-LEAD
€ 58.00
27010
270100030
ref: 27010
SWITCH,MAGNETIC
270100030
€ 119.00
59051
590511413
ref: 59051
GEAR-SPUR,IDLE
€ 51.00
92043
92043132
ref: 92043
PIN
92043132
€ 4.00
92055
920550013
ref: 92055
RING-O,STARTER
€ 8.50
92055A
920551262
ref: 92055A
RING-O,24.4X3.1
920551262
€ 8.50
92055B
920551455
ref: 92055B
RING-O
€ 9.50
92081
92081159
ref: 92081
SPRING, COIL
92081159
€ 2.50
92122
92122006
ref: 92122
ROLLER
92122006
€ 4.00
92144
921441423
ref: 92144
SPRING,BRUSH
921441423
€ 3.00
92150
921501305
ref: 92150
BOLT
€ 3.00
92151
921511930
ref: 92151
BOLT,6X25
921511930
€ 2.00
92153
921530405
ref: 92153
BOLT
€ 15.50
92200
922000168
ref: 92200
WASHER,28.5X40.0X1.0
€ 2.50
92200A
922001019
ref: 92200A
WASHER
922001019
€ 5.00
