TRANSMISSION
ZX600J4 ZZR600 2005 USA CALIFORNIA

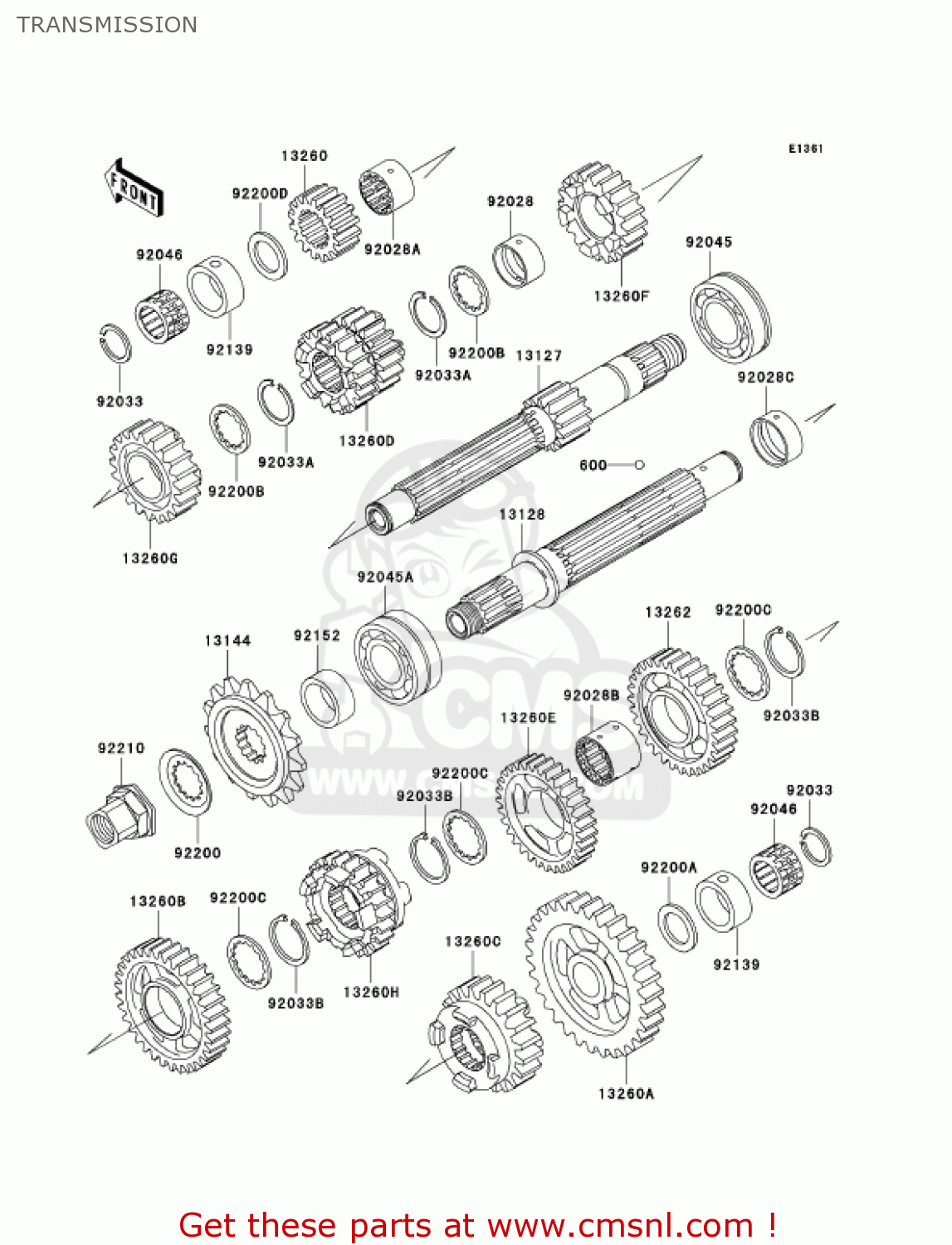

Transmission diagram ZX600J4 ZZR600 2005 USA CALIFORNIA
TRANSMISSION ZX600J4 ZZR600 2005 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271298
ref: 13127
SHAFT-TRANSMISSION IN
€ 221.50
13128
131281264
ref: 13128
SHAFT-TRANSMISSION OU
€ 232.00
13144
131441288
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.50
13260
132601452
ref: 13260
GEAR,INPUT 2ND,16T
€ 107.00
13260A
132601456
ref: 13260A
GEAR,OUTPUT LOW,38T
€ 128.00
13260B
132601568
ref: 13260B
GEAR,OUTPUT 2ND,33T
€ 152.00
13260C
132601979
ref: 13260C
GEAR,OUTPUT 5TH,28T
€ 168.00
13260D
132601980
ref: 13260D
GEAR,INPUT 3RD&4TH,19
€ 168.00
13260E
132601981
ref: 13260E
GEAR,OUTPUT 4TH,29T
€ 168.00
13260F
132601982
ref: 13260F
GEAR,INPUT 5TH,23T
€ 168.00
13260G
132601983
ref: 13260G
GEAR,INPUT TOP,24T
€ 168.00
13260H
132601984
ref: 13260H
GEAR,OUTPUT TOP,26T
€ 168.00
13262
132621058
ref: 13262
GEAR,OUTPUT 3RD,31T
€ 169.50
92028
920281735
ref: 92028
BUSHING,INPUT 5TH GEA
€ 17.00
92028A
920281736
ref: 92028A
BUSHING,INPUT TOP GEA
€ 26.50
92028B
920281738
ref: 92028B
BUSHING,OUTPUT,3RD&4T
€ 26.50
92028C
920281739
ref: 92028C
BUSHING,OUTPUT,2ND
€ 17.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
920450009
ref: 92045
BEARING-BALL,HR6205C3
€ 28.00
92045A
92045035
ref: 92045A
BEARING-BALL,83993SH2
€ 66.50
92046
920461303
ref: 92046
BEARING-NEEDLE,PK20X2
€ 22.00
92139
921391090
ref: 92139
BUSHING,27X34X18.6
€ 24.00
92152
921520192
ref: 92152
COLLAR,25X32X13
€ 8.50
92200
922001065
ref: 92200
WASHER
€ 4.50
92200A
922001238
ref: 92200A
WASHER,20.3X30X2.3
€ 3.50
92200B
922001239
ref: 92200B
WASHER,INPUT TOP&5TH
€ 5.00
92200C
922001240
ref: 92200C
WASHER,2ND,3RD,4TH
€ 7.00
92200D
922001613
ref: 92200D
WASHER,20.3X33X1.0
€ 4.00
92210
922101098
ref: 92210
NUT,SPROCKET
€ 24.50
