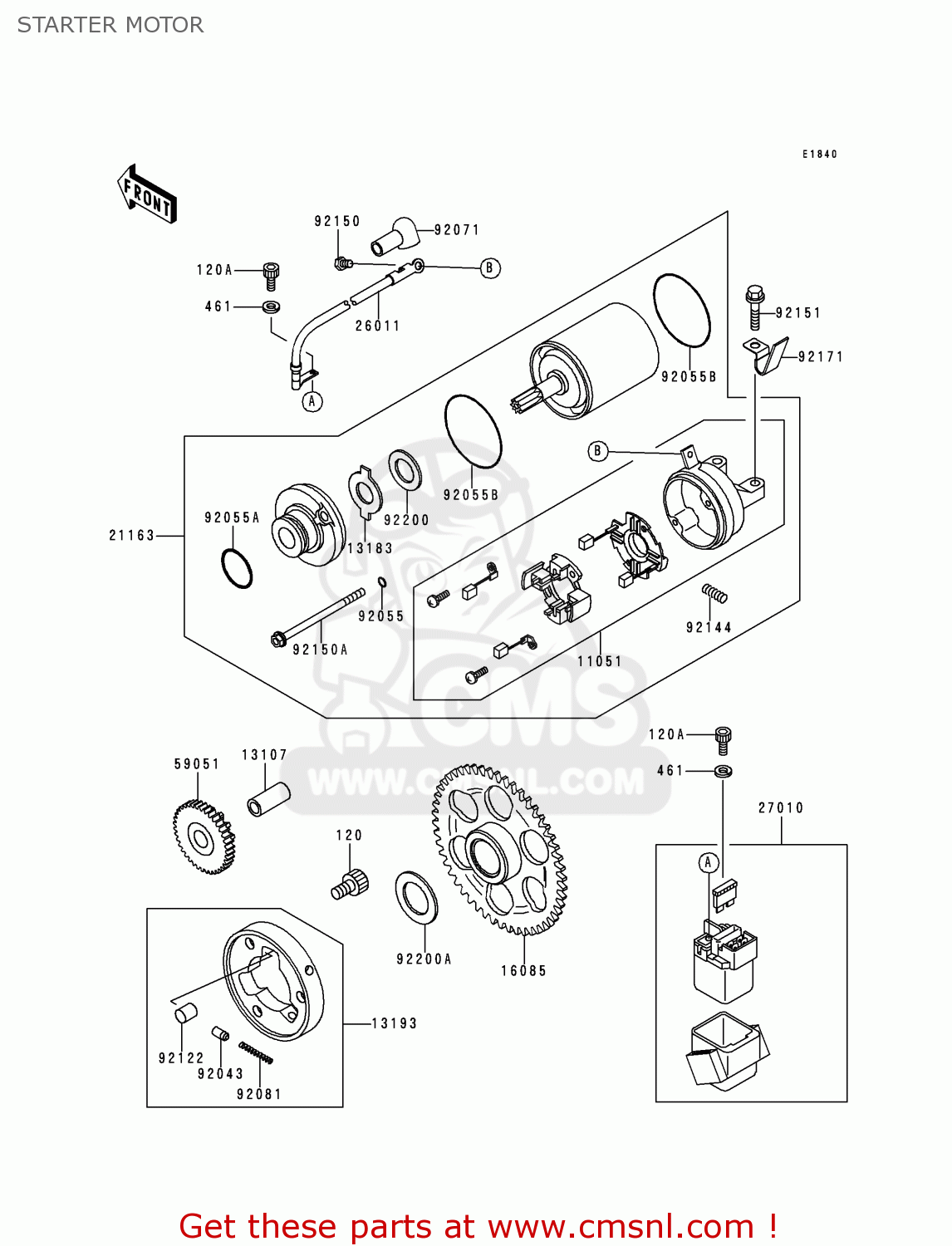

STARTER MOTOR

ref

part #

description

quantity

120

120P0812
ref: 120

BOLT,SOCKET,8X12

€ 2.50

120A

120S0510
ref: 120A

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

11051

110511916
ref: 11051

BRACKET,STARTER MOTOR

€ 110.50

13107

131071176
ref: 13107

SHAFT,7.8X12X26.5

€ 6.50

13183

131831460
ref: 13183

PLATE

€ 9.00

13193

131931066
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 129.50

16085

160851166
ref: 16085

GEAR,ONEWAY CLUTCH,65

€ 121.00

21163

211631304
ref: 21163

STARTER-ELECTRIC

€ 653.00

26011

260111694
ref: 26011

WIRE-LEAD,STARTER

€ 54.00

27010

270101380
ref: 27010

SWITCH

€ 117.50

59051

590511200
ref: 59051

GEAR-SPUR,IDLE,48T&14

€ 57.00

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551261
ref: 92055

RING-O,4.5MM

€ 2.00

92055A

920551262
ref: 92055A

RING-O,24.4X3.1

€ 8.50

92055B

920551455
ref: 92055B

RING-O

€ 9.50

92071

920711182
ref: 92071

GROMMET,TERMINAL

€ 8.00

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

92144

921441423
ref: 92144

SPRING,BRUSH

€ 3.00

92150

921501305
ref: 92150

BOLT

€ 3.00

92150A

921501326
ref: 92150A

BOLT

€ 12.50

92151

921511130
ref: 92151

BOLT,6X25

€ 2.00

92171

921711238
ref: 92171

CLAMP

€ 3.00

92200

922001019
ref: 92200

WASHER

€ 5.00

92200A

922001393
ref: 92200A

WASHER,27.5X38X1.0

€ 2.50
