SWINGARM

ZX600H2 NINJA ZX6R 1999 FG ST

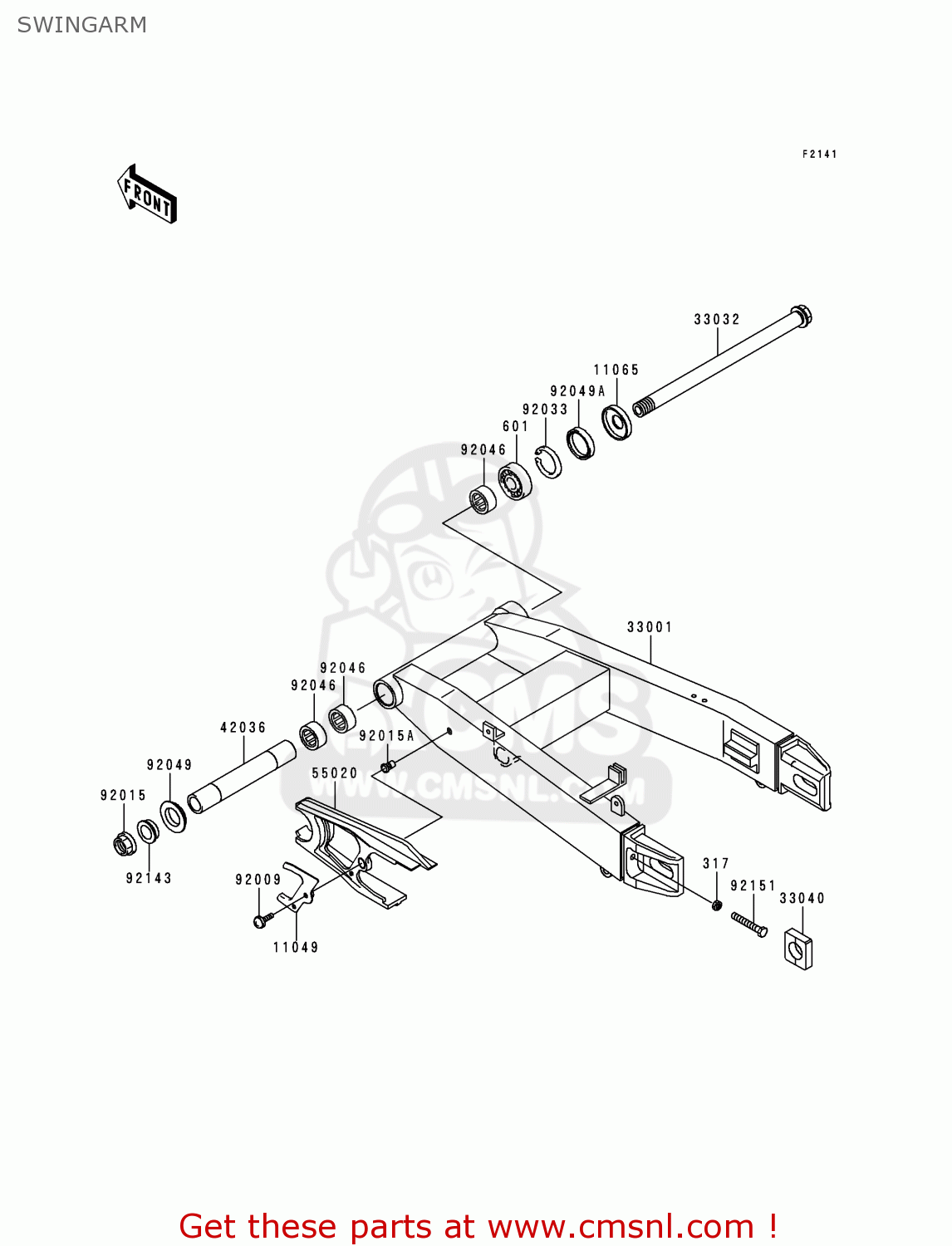

Swingarm diagram ZX600H2 NINJA ZX6R 1999 FG ST

SWINGARM ZX600H2 NINJA ZX6R 1999 FG ST
SWINGARM ZX600H2 NINJA ZX6R 1999 FG ST
SWINGARM ZX600H2 NINJA ZX6R 1999 FG ST
prices are in EUR
ref
part #
description
quantity
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
317G0800
€ 0.50
601
601A6004
ref: 601
BEARING-BALL,#6004
601A6004
€ 13.00
11049
110491234
ref: 11049
BRACKET,CHAIN GUARD
€ 10.00
11065
110651100
ref: 11065
CAP,SWING ARM PIVOT
110651100
€ 4.50
33001
330011548TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 906.50
33032
330321191
ref: 33032
SHAFT-SWING ARM
€ 68.00
33040
330401114
ref: 33040
ADJUSTER-CHAIN
330401114
€ 13.50
42036
420361283
ref: 42036
SLEEVE,SWING ARM,L=21
420361283
€ 62.00
55020
550201656
ref: 55020
GUARD,CHAIN
550201656
€ 33.50
92009
920091664
ref: 92009
SCREW
920091664
€ 2.50
92015
920151724
ref: 92015
NUT,FLANGED,20MM
920151724
€ 10.50
92015A
920151792
ref: 92015A
NUT,POP,6MM,L=16.5
920151792
€ 3.00
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92049A
920491314
ref: 92049A
SEAL-OIL,MHSA25 42 6
920491314
€ 9.00
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
921431227
€ 7.50
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
