HEADLIGHT(S)

ZX600F3 NINJA ZX6R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

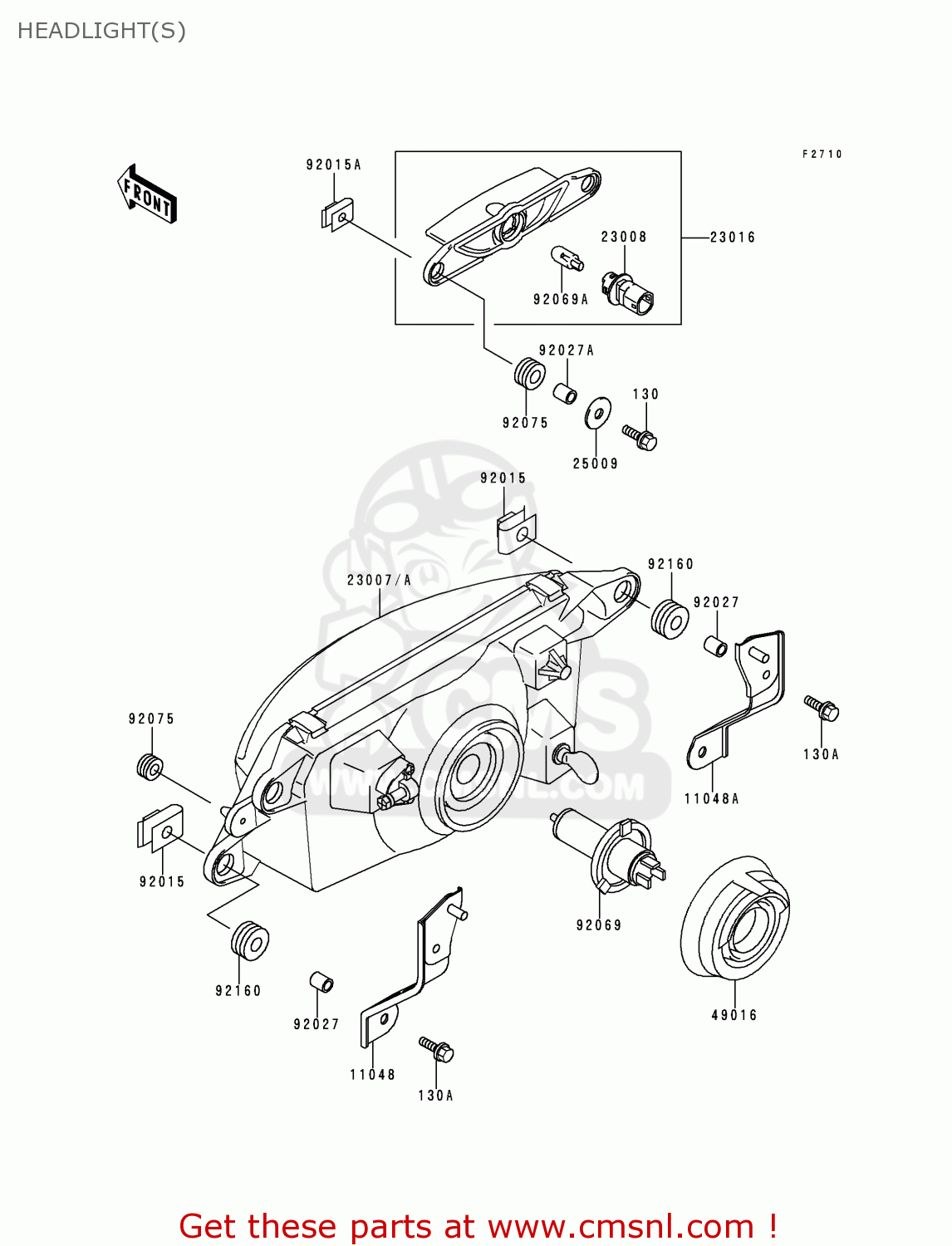

Headlight(s) diagram ZX600F3 NINJA ZX6R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0520
ref: 130

BOLT-FLANGED

€ 2.00

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

11048

110481895
ref: 11048

BRACKET,HEAD LAMP,LH

€ 20.00

11048A

110481896
ref: 11048A

BRACKET,HEAD LAMP,RH

€ 18.00

23007

230071312
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 290.00

23007A

230071327
ref: 23007A
AREUFGFRGRITNLNRSDSP

LENS-COMP,HEAD LAMP

€ 178.50

23008

230081526
ref: 23008

SOCKET-ASSY,POSITION

€ 18.00

23016

230161134
ref: 23016

LAMP-ASSY,POSITION

€ 94.00

25009

25009004
ref: 25009

WASHER,5.2X16X1.2T

€ 2.50

49016

490161135
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151798
ref: 92015A

NUT

€ 4.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92027A

920271923
ref: 92027A

COLLAR,5.6X8X8.8

€ 3.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92069A

920691016
ref: 92069A

BULB,12V 5W

€ 4.00

92075

920751912
ref: 92075

DAMPER

€ 3.50

92160

921601162
ref: 92160

DAMPER

€ 3.00
