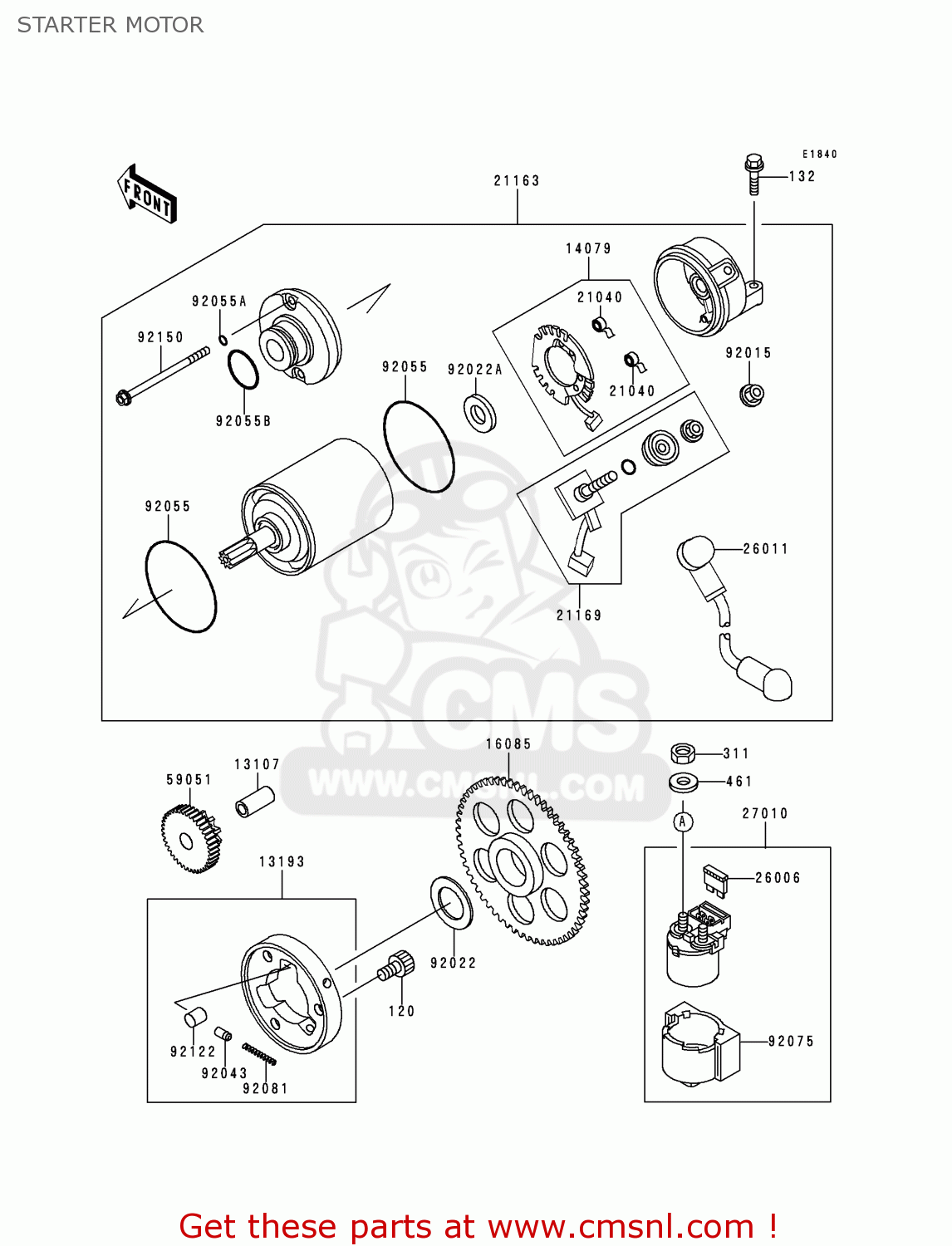

STARTER MOTOR

ref

part #

description

quantity

120

120P0814
ref: 120

BOLT-SOCKET,8X14

€ 3.00

132

132H0625
ref: 132

BOLT-FLANGED-SMALL,6X

€ 2.00

311

311H0600
ref: 311

NUT-HEX

€ 2.00

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

13107

131071176
ref: 13107

SHAFT,7.8X12X26.5

€ 6.50

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

14079

140791082
ref: 14079

HOLDER-ASSY,CARBON BR

€ 31.50

16085

160851224
ref: 16085

GEAR,ONEWAY CLUTCH

€ 87.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631211
ref: 21163

STARTER-ELECTRIC

€ 621.00

21169

211691058
ref: 21169

TERMINAL,STARTER

€ 44.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260111576
ref: 26011

WIRE-LEAD,STARTER MOT

€ 52.00

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

59051

590511232
ref: 59051

GEAR-SPUR,IDLE

€ 108.00

92015

920151623
ref: 92015

NUT

€ 3.00

92022

92022145
ref: 92022

WASHER-CLUTCH THRUST

€ 4.50

92022A

920222200
ref: 92022A

WASHER

€ 1.00

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

92150

921501237
ref: 92150

BOLT

€ 7.00

all assemblies
