OIL PUMP

ZX600E3 ZZR600 1995 EUROPE UK FR NL AR FG GR IT SD ST

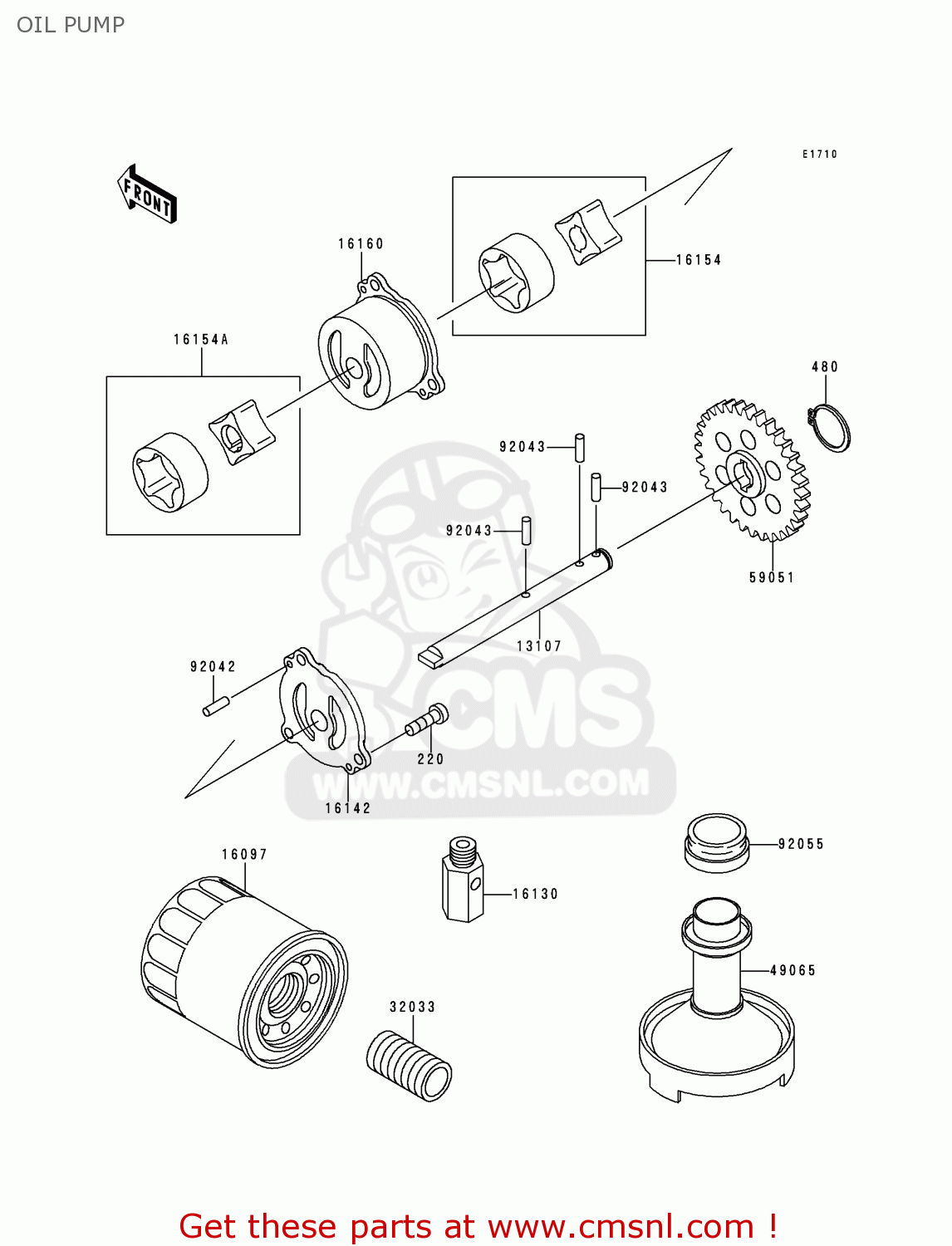

Oil pump diagram ZX600E3 ZZR600 1995 EUROPE UK FR NL AR FG GR IT SD ST

OIL PUMP ZX600E3 ZZR600 1995 EUROPE UK FR NL AR FG GR IT SD ST

OIL PUMP ZX600E3 ZZR600 1995 EUROPE UK FR NL AR FG GR IT SD ST

prices are in EUR

ref

part #

description

quantity

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13107

131071265
ref: 13107

SHAFT,OIL PUMP

€ 38.00

16097

160971063
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161421100
ref: 16142

COVER-PUMP

€ 32.00

16154

161541085
ref: 16154

ROTOR-PUMP,ENGINE

€ 49.00

16154A

161541086
ref: 16154A

ROTOR-PUMP,OIL COOLER

€ 49.00

16160

161601159
ref: 16160

BODY,OIL PUMP

€ 110.50

32033

320331535
ref: 32033

PIPE

€ 9.00

49065

490651056
ref: 49065

FILTER-OIL

€ 18.00

59051

590511308
ref: 59051

GEAR-SPUR,OIL PUMP

€ 44.00

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431444
ref: 92043

PIN,17.9X5.0

€ 2.50

92055

920551354
ref: 92055

RING-O,OIL FILTER

€ 6.50
