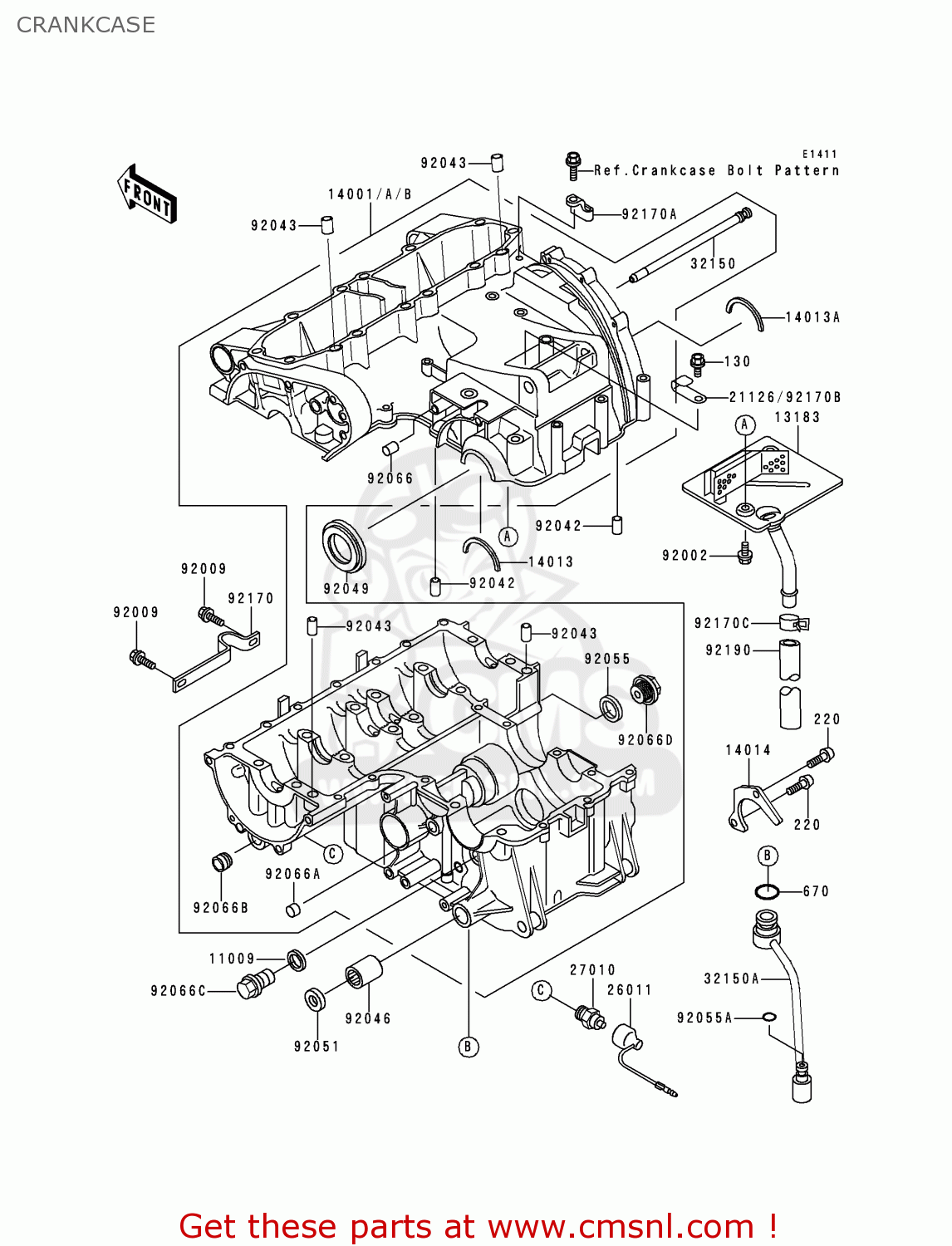

CRANKCASE

ref

part #

description

quantity

130

130V0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

670

670B2014
ref: 670

O RING,14MM

€ 1.00

11009

110091238
ref: 11009

GASKET,TENSIONER (NAS)

€ 2.50

13183

131831531
ref: 13183

PLATE,BREATHER

€ 49.00

14001A

140015333
ref: 14001A

SET-CRANKCASE

€ 1,752.50

14013

14013004
ref: 14013

RING-BEARING SETTING

€ 7.00

14013A

140131004
ref: 14013A

RING-POSITION,CRANK

€ 3.00

14014

140141102
ref: 14014

PLATE-POSITION

€ 9.00

26011

260111371
ref: 26011

WIRE-LEAD

€ 13.50

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

32150

321501619
ref: 32150

PIPE,OIL

€ 17.00

32150A

321501620
ref: 32150A

PIPE,OIL

€ 27.00

92002

920021449
ref: 92002

BOLT,6X10

€ 2.50

92009

920091603
ref: 92009

SCREW

€ 2.50

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92046

920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 19.50

92049

920491307
ref: 92049

SEAL-OIL,TC32528

€ 8.00

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

920551146
ref: 92055

RING-O

€ 5.50

92055A

920551343
ref: 92055A

RING-O,5.5X1.5

€ 3.00

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92066A

920661110
ref: 92066A

PLUG

€ 4.00

92066B

920661252
ref: 92066B

PLUG

€ 4.00

92066C

920661273
ref: 92066C

PLUG,14X8

€ 5.50

92066D

920661394
ref: 92066D

PLUG,MAIN GALLERY,18X

€ 7.00

92170

921701468
ref: 92170

CLAMP,OIL TUBE

€ 4.50

92170A

921701471
ref: 92170A

CLAMP

€ 3.00

92170B

921701524
ref: 92170B

CLAMP,WIRING HARNESS

€ 3.00

92170C

921702043
ref: 92170C

CLAMP

€ 1.00

92190

921901107
ref: 92190

TUBE,L=127

€ 4.50
