OIL COOLER

ZX600E12 ZZR600 2004 USA CALIFORNIA CANADA

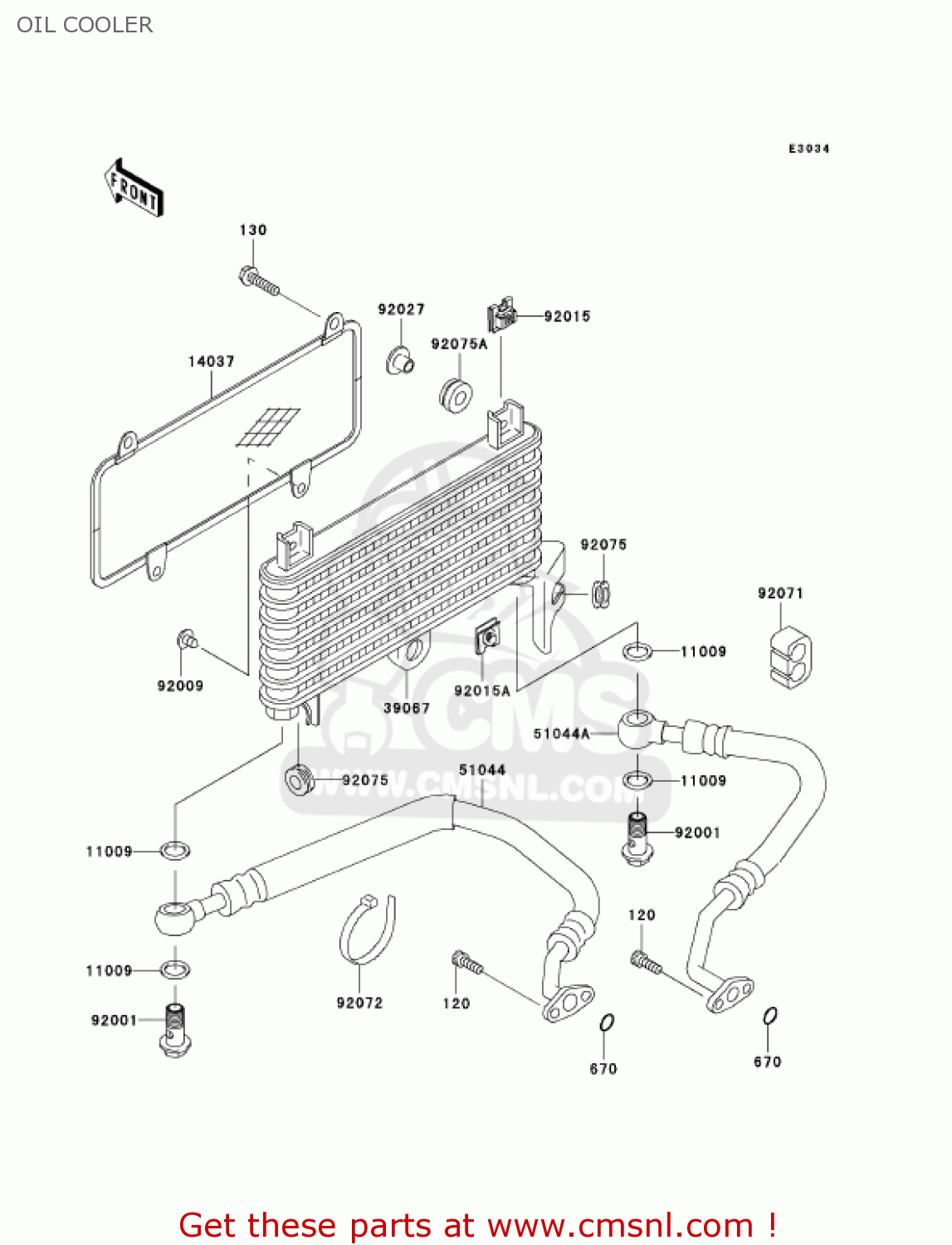

Oil cooler diagram ZX600E12 ZZR600 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

670

670B2010
ref: 670

O RING,10MM

€ 1.00

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

14037

140371174
ref: 14037

SCREEN,OIL COOLER

€ 39.00

39067

390671061
ref: 39067

COOLER-OIL

€ 531.50

51044

510441157
ref: 51044

TUBE-ASSY,LH

€ 115.00

51044A

510441158
ref: 51044A

TUBE-ASSY,RH

€ 121.00

92001

920011930
ref: 92001

BOLT,14X28.5

€ 6.50

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92071

920711216
ref: 92071

GROMMET

€ 4.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751942
ref: 92075

DAMPER,OIL COOLER

€ 3.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00
