RADIATOR

ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD

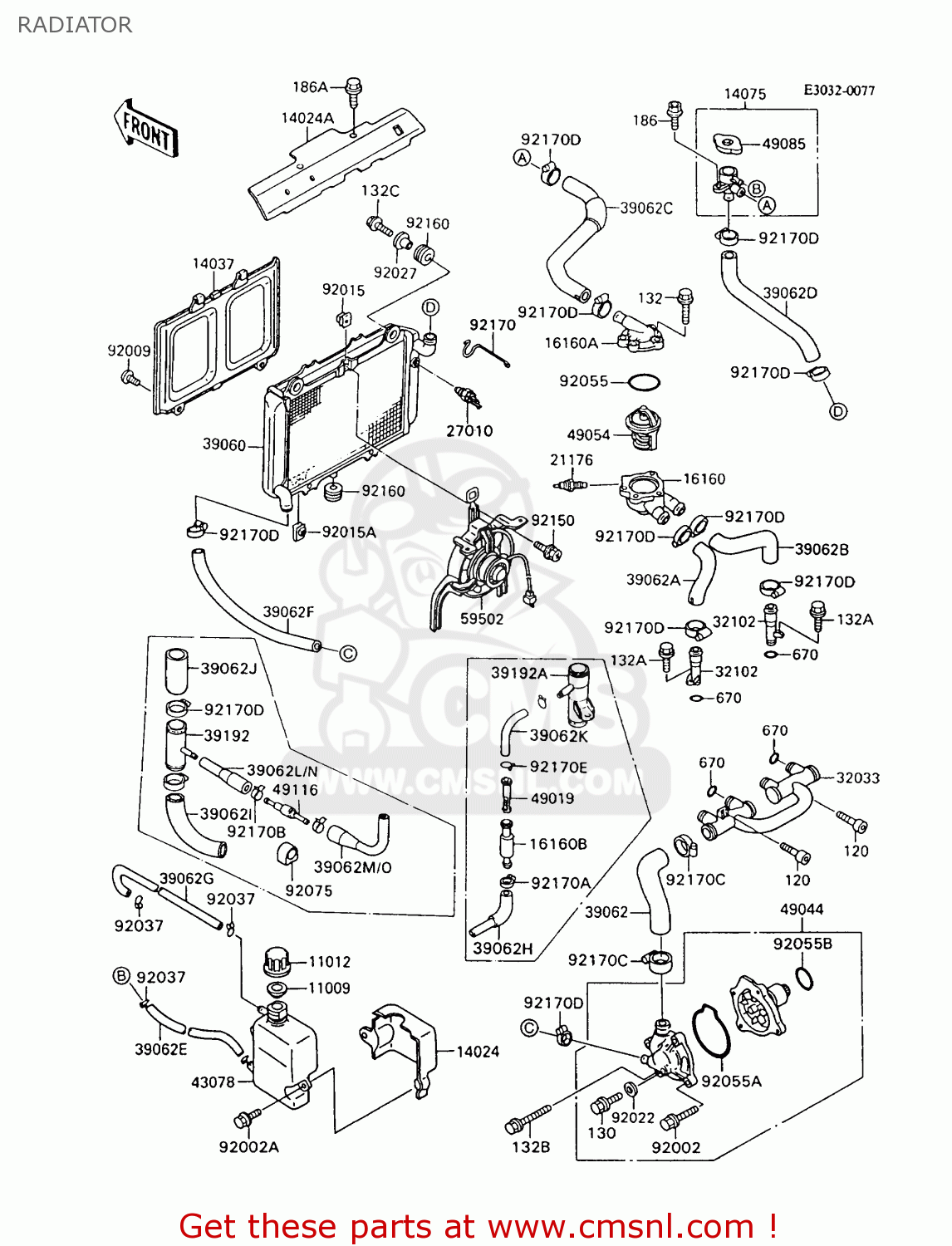

Radiator diagram ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD

RADIATOR ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD
RADIATOR ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD
RADIATOR ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241426
ref: 14024
COVER,RESERVOIR
140241426
€ 10.00
14024A
140241441
ref: 14024A
COVER
140241441
€ 17.00
14037
140371091
ref: 14037
SCREEN
140371091
€ 63.00
14075
140751061
ref: 14075
CAP-ASSY
140751061
€ 128.00
16160
161601112
ref: 16160
BODY,THERMOSTAT,LWR
161601112
€ 53.50
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
16160B
161601151
ref: 16160B
FGNLUK
BODY,FILTER
161601151
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
270101304
€ 63.00
32033
320331593
ref: 32033
PIPE
€ 91.50
32102
321021043
ref: 32102
FGNLUK
PIPE
321021043
€ 23.50
32102
321021043
ref: 32102
SD
PIPE
321021043
€ 23.50
39060
390601085
ref: 39060
RADIATOR
€ 576.50
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
390621111
€ 21.00
39062A
390621235
ref: 39062A
HOSE-COOLING,HEAD-THE
390621235
€ 12.00
39062B
390621236
ref: 39062B
HOSE-COOLING,HEAD-THE
390621236
€ 18.50
39062C
390621237
ref: 39062C
HOSE-COOLING,CAP-THER
390621237
€ 21.00
39062D
390621238
ref: 39062D
HOSE-COOLING,CAP-RADI
390621238
€ 15.50
39062E
390621240
ref: 39062E
HOSE-COOLING,RESERVOI
€ 18.00
39062F
390621256
ref: 39062F
SD
HOSE-COOLING,RADIATOR
390621256
€ 17.00
39062G
390621269
ref: 39062G
HOSE-COOLING
390621269
€ 18.00
39062H
390621314
ref: 39062H
FGNLUK
HOSE-COOLING
390621314
€ 7.50
39062I
390621346
ref: 39062I
FGNLUK
HOSE-COOLING
390621346
€ 14.00
39062J
390621348
ref: 39062J
FGNLUK
HOSE-COOLING
390621348
€ 17.00
39062K
390621349
ref: 39062K
FGNLUK
HOSE-COOLING
€ 3.50
39062N
390621568
ref: 39062N
FGNLUK
HOSE-COOLING
390621568
€ 5.00
39062O
390621578
ref: 39062O
FGNLUK
HOSE-COOLING
€ 3.50
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
39192
391921016
ref: 39192
FGNLUK
PIPE-WATER
€ 22.00
39192A
391921017
ref: 39192A
FGNLUK
PIPE-WATER
391921017
€ 19.50
43078
430781086
ref: 43078
RESERVOIR
430781086
€ 34.00
49019
490191068
ref: 49019
FGNLUK
FILTER-FUEL
490191068
€ 4.00
49044
490441054
ref: 49044
PUMP-WATER
490441054
€ 288.50
49054
490541059
ref: 49054
THERMOSTAT
490541059
€ 41.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
49116
491161081
ref: 49116
FGNLUK
VALVE-ASSY
491161081
€ 85.00
59502
595021081
ref: 59502
FAN-ASSY
595021081
€ 389.50
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92002A
920021720
ref: 92002A
BOLT,6X16
920021720
€ 2.50
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92055A
920551315
ref: 92055A
RING-O,WATER PUMP
920551315
€ 8.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
920551424
€ 4.00
92075
920751728
ref: 92075
FGNLUK
DAMPER,CARRIER
920751728
€ 5.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701074
ref: 92170
CLAMP
€ 6.00
92170A
921701118
ref: 92170A
FGNLUK
CLAMP
921701118
€ 5.00
92170B
921701201
ref: 92170B
FGNLUK
CLAMP
921701201
€ 3.50
92170C
921701284
ref: 92170C
CLAMP,CABLE
921701284
€ 7.50
92170D
921701285
ref: 92170D
SD
CLAMP,COOLING HOSE
921701285
€ 13.00
92170D
921701285
ref: 92170D
FGNLUK
CLAMP,COOLING HOSE
921701285
€ 13.00
92170E
921702042
ref: 92170E
FGNLUK
CLAMP
921702042
€ 1.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0825
ref: 132C
BOLT-FLANGED-SMALL
132J0825
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
