IGNITION SYSTEM

ZX600C6 NINJA 600R 1993 USA CALIFORNIA

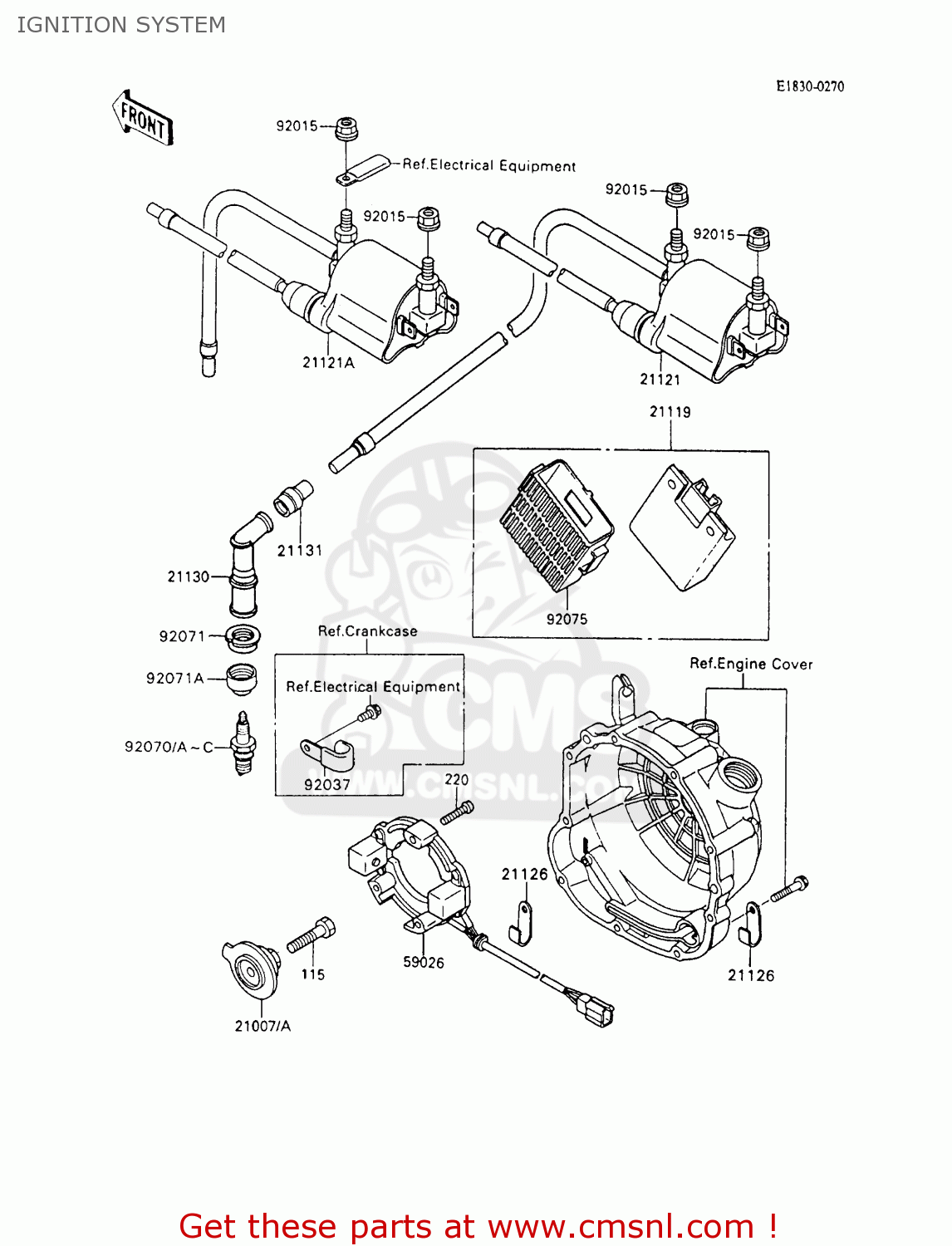

Ignition system diagram ZX600C6 NINJA 600R 1993 USA CALIFORNIA

IGNITION SYSTEM ZX600C6 NINJA 600R 1993 USA CALIFORNIA
IGNITION SYSTEM ZX600C6 NINJA 600R 1993 USA CALIFORNIA
IGNITION SYSTEM ZX600C6 NINJA 600R 1993 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
115
115G0835
ref: 115
BOLT HEX,HEAD,8X35
115G0835
€ 3.00
220
220B0525
ref: 220
SCREW-PAN-CROS,5X25
220B0525
€ 2.50
21007
210071135
ref: 21007
CA
PULSING COIL ROTOR
210071135
€ 12.00
21007A
210071159
ref: 21007A
US
ROTOR
€ 39.00
21119
211191167
ref: 21119
IGNITER
211191167
€ 476.50
21121
211211157
ref: 21121
COIL-IGNITION,#1&#4
€ 113.00
21121A
211211158
ref: 21121A
COIL-IGNITION,#2&#3
€ 113.00
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
21126008
€ 3.00
21130
211301068
ref: 21130
CAP-SPARK PLUG
211301068
€ 28.00
21131
21131005
ref: 21131
GROMMET,TENSION,ITALY
21131005
€ 4.00
59026
590261078
ref: 59026
COIL-PULSING
590261078
€ 135.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92070
920701011
ref: 92070
D8EA (NGK SPARKPLUG)
920701011
€ 4.00
92070A

ref: 92070A
92070B
920701034
ref: 92070B
D9EA (NGK SPARKPLUG)
920701034
€ 4.00
92070C

ref: 92070C
92071
920711144
ref: 92071
GROMMET
920711144
€ 5.50
92071A
920711184
ref: 92071A
GROMMET,PLUG CAP
920711184
€ 4.00
92075
920751504
ref: 92075
DAMPER,IGNITER
920751504
€ 23.50
