STARTER MOTOR
ZX600C3 NINJA 600R 1990 USA CALIFORNIA

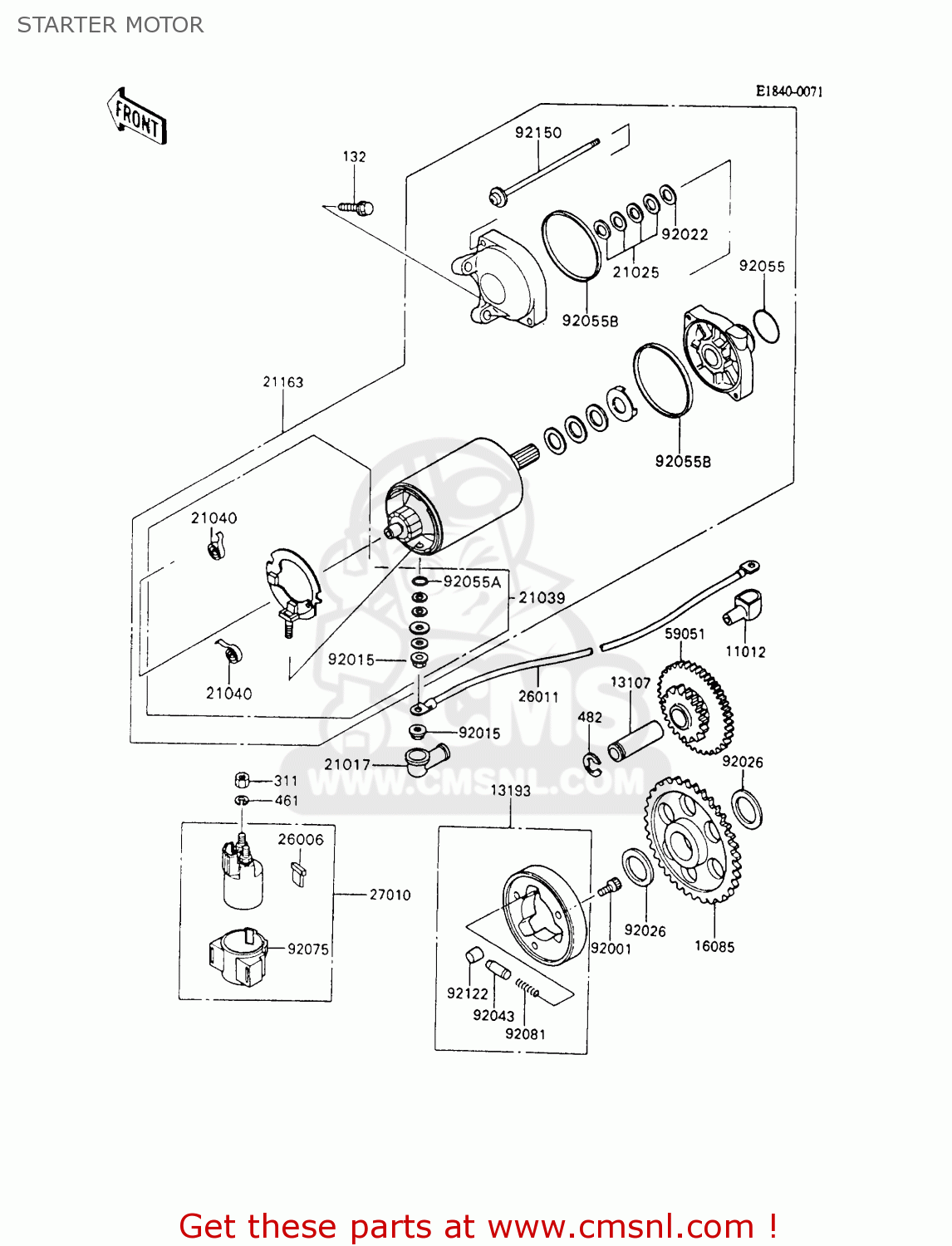

Starter motor diagram ZX600C3 NINJA 600R 1990 USA CALIFORNIA
STARTER MOTOR ZX600C3 NINJA 600R 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
482
482J0300
ref: 482
CIRCLIP-TYPE-E
€ 2.00
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13107
131071144
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
€ 97.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631158
ref: 21163
STARTER-ELECTRIC
€ 659.00
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
59051
590511138
ref: 59051
GEAR-SPUR,IDLE
€ 99.50
92001
920011424
ref: 92001
BOLT,SOCKET,8X10
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
92150
921501243
ref: 92150
BOLT
€ 6.00
