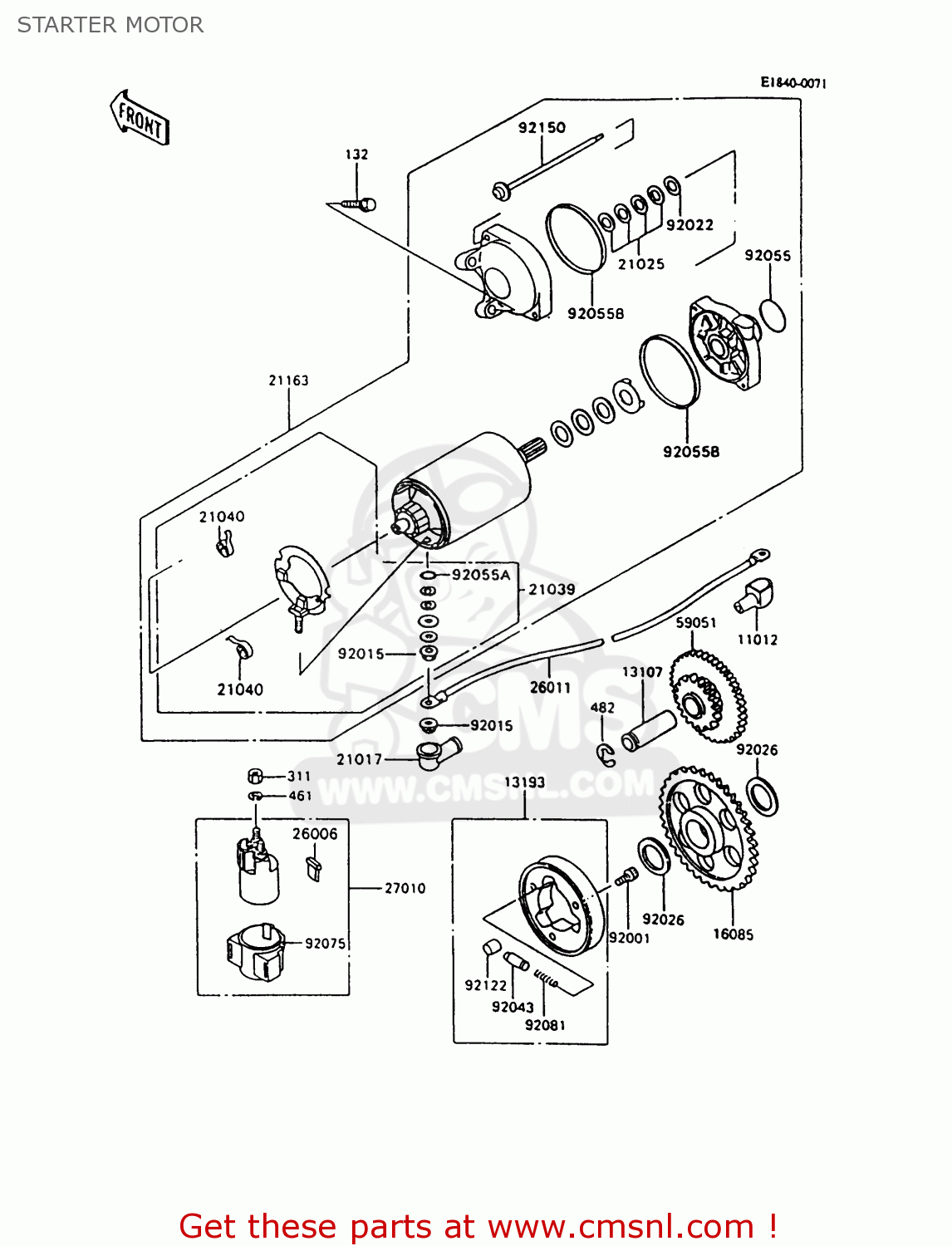

STARTER MOTOR

ref

part #

description

quantity

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

482

482J0300
ref: 482

CIRCLIP-TYPE-E

€ 2.00

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13107

131071144
ref: 13107

SHAFT,IDLE GEAR

€ 10.00

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

16085

160851030
ref: 16085

GEAR,ONEWAY CLUTCH

€ 97.50

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391062
ref: 21039

BRUSH,CARBON

€ 81.00

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211631158
ref: 21163

STARTER-ELECTRIC

€ 659.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260111251
ref: 26011

WIRE-LEAD,STARTER MOT

€ 55.50

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

59051

590511138
ref: 59051

GEAR-SPUR,IDLE

€ 99.50

92001

920011424
ref: 92001

BOLT,SOCKET,8X10

€ 3.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92026

920261025
ref: 92026

SPACER,25X36X3.2

€ 3.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551381
ref: 92055B

RING-O,STARTER MOTOR

€ 6.50

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

92150

921501243
ref: 92150

BOLT

€ 6.00

all assemblies
