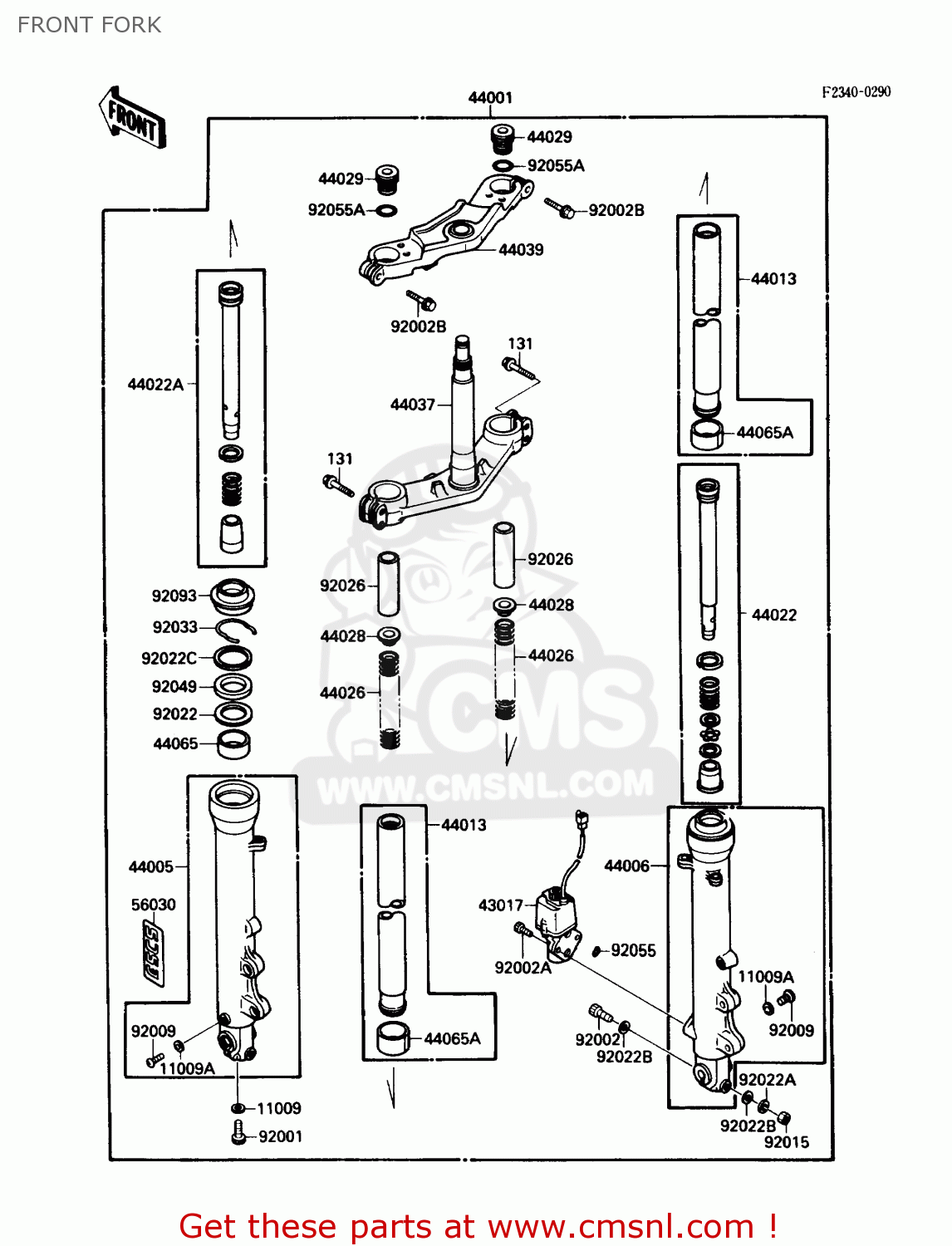

FRONT FORK

ref

part #

description

quantity

131

131G0840
ref: 131

BOLT, 8 X 40

€ 5.50

11009

110091127
ref: 11009

GASKET,FORK CYLID BOL (NAS)

€ 3.00

11009A

44045002
ref: 11009A

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

43017

430171067
ref: 43017

VALVE-COMP-BRAKE

€ 323.00

44001

440011653
ref: 44001

FORK-FRONT

€ 2,329.50

44005

440051259
ref: 44005

PIPE-LEFT FORK OUTER

€ 153.00

44006

440061256
ref: 44006

PIPE-RIGHT FORK OUTER

€ 153.00

44013

440131260
ref: 44013

PIPE-FORK INNER

€ 121.50

44022

440221203
ref: 44022

CYLINDER-FORK,RH

€ 85.00

44022A

440221207
ref: 44022A

CYLINDER-FORK

€ 74.00

44026

440261363
ref: 44026

SPRING-FRONT FORK

€ 39.50

44028

440281003
ref: 44028

GUIDE-FORK SPRING

€ 7.50

44029

440291126
ref: 44029

SEAT-FORK SPRING

€ 22.00

44037

440371213
ref: 44037

HOLDER-FORK UNDER

€ 209.00

44039

440391150
ref: 44039

HOLDER-FORK UPPER

€ 140.00

44065

440651012
ref: 44065

BUSHING,FORK OUT PIPE

€ 17.00

44065A

440651057
ref: 44065A

BUSHING,FRON.PIPE

€ 31.50

56030

560301095
ref: 56030

LABEL,ESCS MARK

€ 3.00

92001

920011309
ref: 92001

BOLT,FORK CYLINDER

€ 4.50

92002

920021163
ref: 92002

BOLT,8X60

€ 5.50

92002A

920021166
ref: 92002A

BOLT,SOCKET,6X16

€ 4.50

92002B

920021476
ref: 92002B

BOLT,FLANGED,8X40

€ 6.50

92009

920091324
ref: 92009

SCREW,4X8

€ 2.50

92015

920151400
ref: 92015

NUT,8MM

€ 3.00

92022

920221262
ref: 92022

WASHER,FORK OUTER PIP

€ 5.50

92022A

920221552
ref: 92022A

WASHER,SPRING,8MM

€ 2.50

92022B

920221554
ref: 92022B

WASHER,PLAIN,8MM

€ 3.00

92022C

920221599
ref: 92022C

WASHER,FORK OUTER PIP

€ 4.50

92026

920261258
ref: 92026

SPACER,L=40

€ 6.50

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92049

920491178
ref: 92049

SEAL-OIL,FORK

€ 18.50

92055

920551379
ref: 92055

RING-O

€ 1.00

92055A

920551380
ref: 92055A

RING-O,FORK TOP

€ 2.50

92093

920931162
ref: 92093

SEAL,FORK

€ 18.00

all assemblies
