FRONT FORK
ZX600B1 NINJA 600RX 1987 USA CALIFORNIA

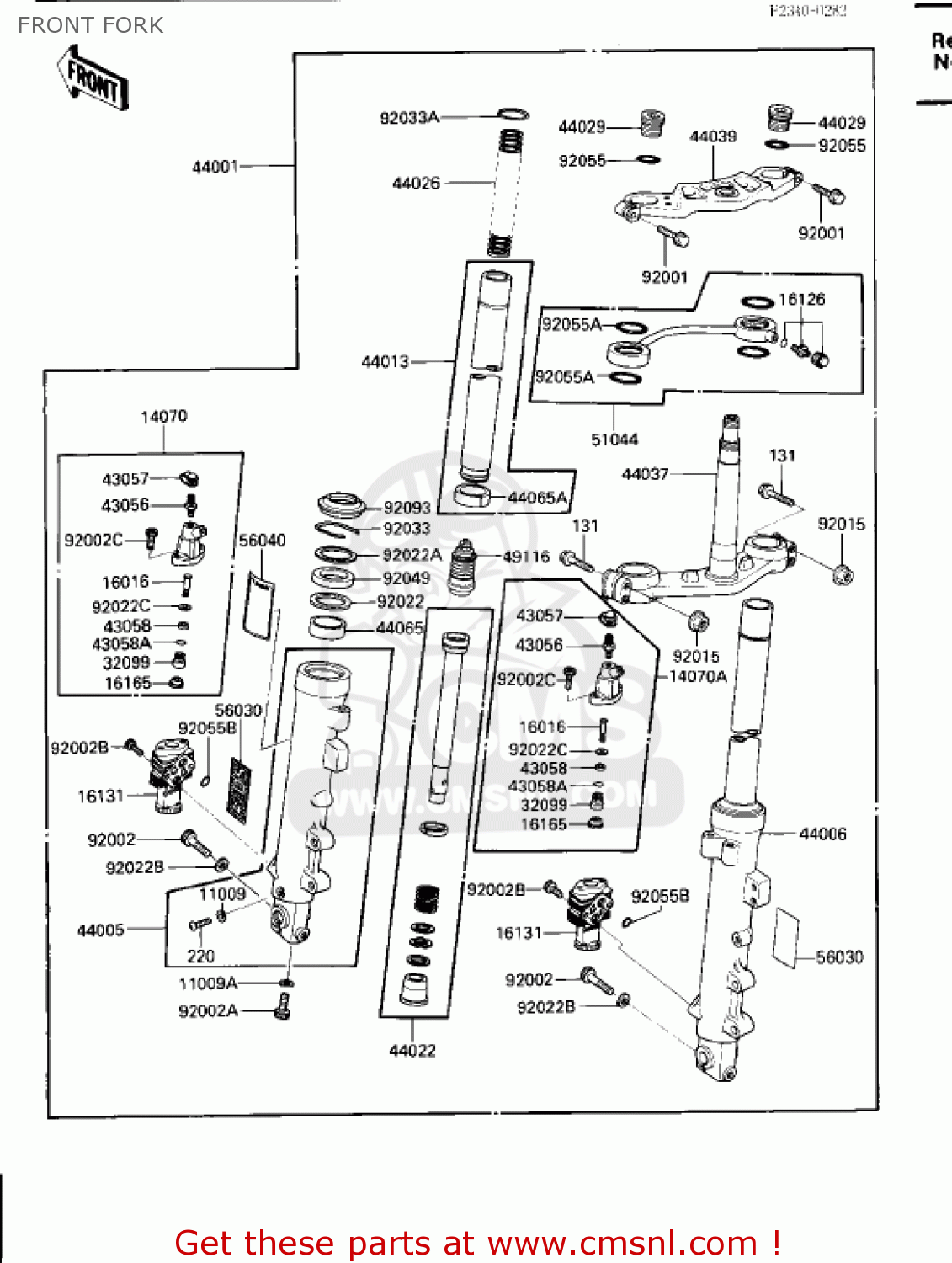

Front fork diagram ZX600B1 NINJA 600RX 1987 USA CALIFORNIA
FRONT FORK ZX600B1 NINJA 600RX 1987 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
14070
140701070
ref: 14070
BODY-BREATHER,ANTI-DI
€ 174.50
14070A
140701060
ref: 14070A
BODY-BREATHER,ANTI-DI
€ 174.50
16016
160161067
ref: 16016
PLUNGER,ANTI-DIVE
€ 23.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16131
161311058
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 133.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
€ 2.50
44001
440011664
ref: 44001
FRONT FORK
€ 884.00
44005
440051255
ref: 44005
FORK OUTER PIPE,LH
€ 194.00
44006
440061252
ref: 44006
FORK OUTER PIPE,RH
€ 194.00
44013
440131231
ref: 44013
PIPE-FORK INNER
€ 134.00
44022
440221181
ref: 44022
CYLINDER-FORK
€ 77.00
44026
440261302
ref: 44026
SPRING-FRONT FORK,K=0
€ 56.00
44029
440291121
ref: 44029
SEAT-FORK SPRING
€ 24.00
44037
440371209
ref: 44037
FORK HOLDER,UNDER
€ 198.00
44039
440391157
ref: 44039
HOLDER-FORK UPPER
€ 102.00
44065
440651051
ref: 44065
BUSHING-FRONT FORK
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
€ 20.00
49116
491161058
ref: 49116
VALVE-ASSY,FORK
€ 80.00
51044
510441069
ref: 51044
TUBE-ASSY
€ 73.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
€ 2.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011188
ref: 92001
BOLT,8X40
€ 5.50
92002
920021316
ref: 92002
BOLT
€ 3.50
92002A
920021317
ref: 92002A
BOLT
€ 4.50
92002B
920021564
ref: 92002B
BOLT
€ 5.50
92002C
920021565
ref: 92002C
BOLT
€ 6.00
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221524
ref: 92022A
WASHER,FORK OUTER PIP
€ 3.50
92022B
920221598
ref: 92022B
WASHER
€ 4.50
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92033A
920331202
ref: 92033A
RING-SNAP
€ 4.50
92049
920491372
ref: 92049
SEAL-OIL,FORK OUTER T
€ 15.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
€ 1.00
92093
920931314
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.50
131
130G0850
ref: 131
BOLT,8X50
€ 1.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
