CARBURETOR

ZX600A4 NINJA 600R 1988 UNITED KINGDOM FG

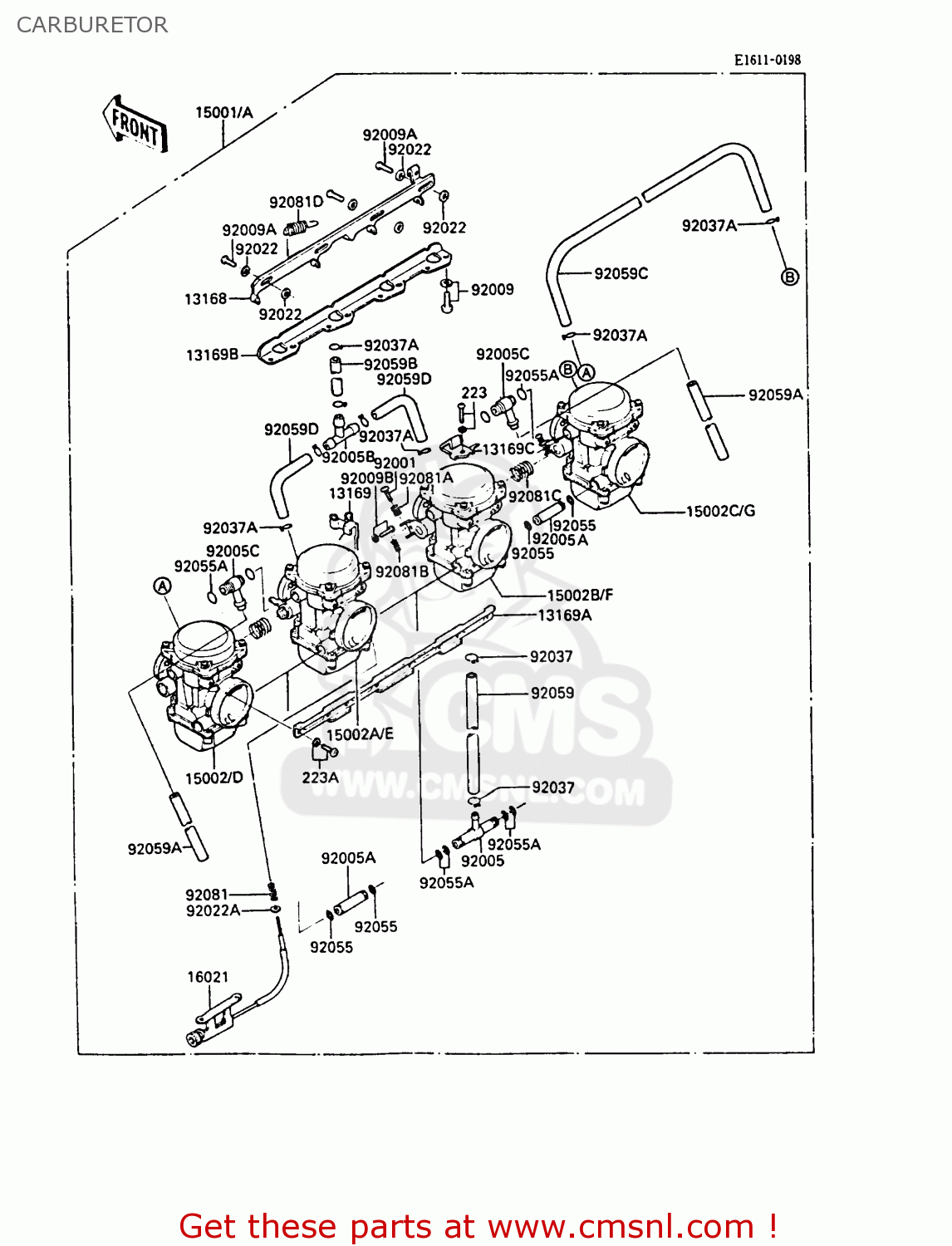

Carburetor diagram ZX600A4 NINJA 600R 1988 UNITED KINGDOM FG

CARBURETOR ZX600A4 NINJA 600R 1988 UNITED KINGDOM FG
CARBURETOR ZX600A4 NINJA 600R 1988 UNITED KINGDOM FG
CARBURETOR ZX600A4 NINJA 600R 1988 UNITED KINGDOM FG
prices are in EUR
ref
part #
description
quantity
13168
131681280
ref: 13168
LEVER,DL
131681280
€ 92.00
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
131691962
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13169B
131691964
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
13169C
131691965
ref: 13169C
PLATE,STARTER CABLE
131691965
€ 26.50
15001
150011155
ref: 15001
CARBURETOR-ASSY
€ 1,189.50
15002
150021225
ref: 15002
CARBURETOR,LH,OUTSIDE
€ 362.50
15002A
150021226
ref: 15002A
CARBURETOR,LH,INSIDE
€ 362.50
15002B
150021227
ref: 15002B
CARBURETOR,RH,INSIDE
€ 362.50
15002C
150021228
ref: 15002C
CARBURETOR,RH,OUTSIDE
€ 362.50
16021
160211114
ref: 16021
SCREW-THROTTLE STOP
160211114
€ 84.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005B
920051112
ref: 92005B
FITTING,FUEL,T-TYPE
920051112
€ 10.00
92005C
920051125
ref: 92005C
FITTING,T-TYPE
920051125
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92059A
920591376
ref: 92059A
TUBE,6.5X9.5X290
€ 20.50
92059B
920591378
ref: 92059B
TUBE,5X9X150
920591378
€ 16.50
92059C
920591626
ref: 92059C
TUBE,5X9X320
920591626
€ 16.50
92059D
920591627
ref: 92059D
TUBE,5X9X90
920591627
€ 7.00
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811913
ref: 92081D
SPRING,STARTER LEVER
920811913
€ 15.00
