TURN SIGNALS
ZX500B1 GPX500R 1988 AUSTRIA NR

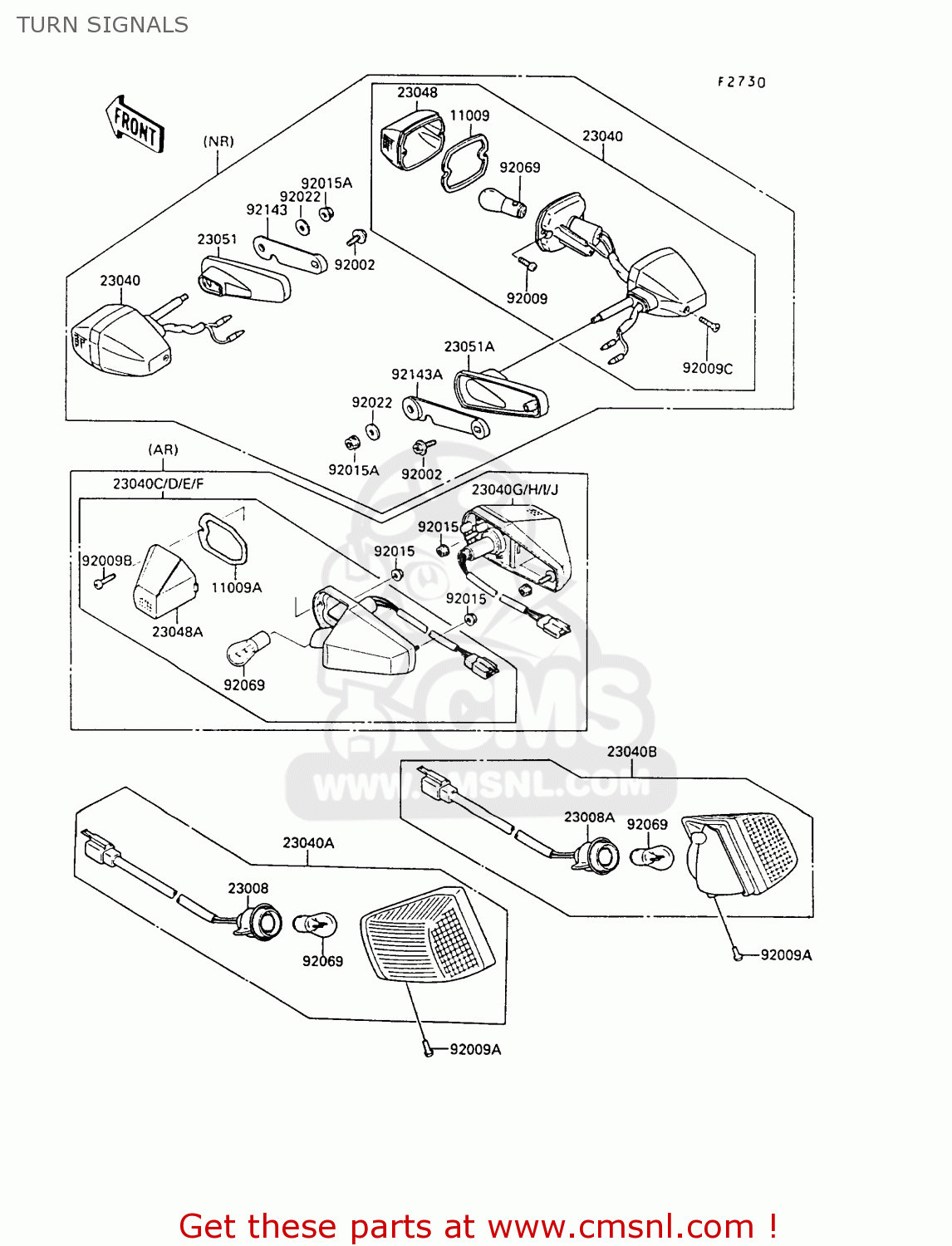

Turn signals diagram ZX500B1 GPX500R 1988 AUSTRIA NR
TURN SIGNALS ZX500B1 GPX500R 1988 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091402
ref: 11009
NR
GASKET,SIGNAL LAMP (NAS)
€ 3.50
11009A
110091620
ref: 11009A
AR
GASKET,SIGNAL LAMP (NAS)
€ 2.50
23008
230081351
ref: 23008
SOCKET-ASSY,SIGNAL LA
€ 12.50
23008A
230081352
ref: 23008A
SOCKET-ASSY,SIGNAL LA
€ 12.50
23040
230401159
ref: 23040
NR
LAMP-SIGNAL,FR
€ 41.50
23040A
230401170
ref: 23040A
LAMP-SIGNAL,RR,LH
€ 33.50
23040B
230401171
ref: 23040B
LAMP-SIGNAL,RR,RH
€ 14.50
23040C
230401175B1
ref: 23040C
AR
LAMP-SIGNAL,LH,F.RED
€ 20.00
23040D
230401175H8
ref: 23040D
AR
LAMP-SIGNAL,LH,EBONY
€ 33.00
23040F
230401175R1
ref: 23040F
AR
LAMP-SIGNAL,LH,P.A.WH
€ 23.50
23040G
230401176B1
ref: 23040G
AR
LAMP-SIGNAL,RH,F.RED
€ 15.50
23040H
230401176H8
ref: 23040H
AR
LAMP-SIGNAL,RH,EBONY
€ 33.00
23040J
230401176R1
ref: 23040J
AR
LAMP-SIGNAL,RH,P.A.WH
€ 11.50
23048
230481054
ref: 23048
NR
LENS-SIGNAL LAMP
€ 12.00
23048A
230481083
ref: 23048A
AR
LENS-SIGNAL LAMP
€ 10.50
23051
230511185
ref: 23051
NR
BRACKET-SIGNAL LAMP,F
€ 7.50
23051A
230511186
ref: 23051A
NR
BRACKET-SIGNAL LAMP,F
€ 7.50
92002
920021921
ref: 92002
NR
BOLT
€ 2.50
92009
920091115
ref: 92009
NR
SCREW,TAPPING,3X16
€ 2.00
92009A
920091197
ref: 92009A
SCREW
€ 2.50
92009B
920091297
ref: 92009B
AR
SCREW,TAPPING,4X20
€ 2.50
92009C
920091304
ref: 92009C
NR
SCREW,4X20
€ 3.00
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
NR
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
NR
WASHER,6.5X20X1.6
€ 1.00
92069
ref: 92069
92143
921431099
ref: 92143
NR
COLLAR,SIGNAL LAMP,FR
€ 3.00
92143A
921431102
ref: 92143A
NR
COLLAR,SIGNAL LAMP,FR
€ 3.00
