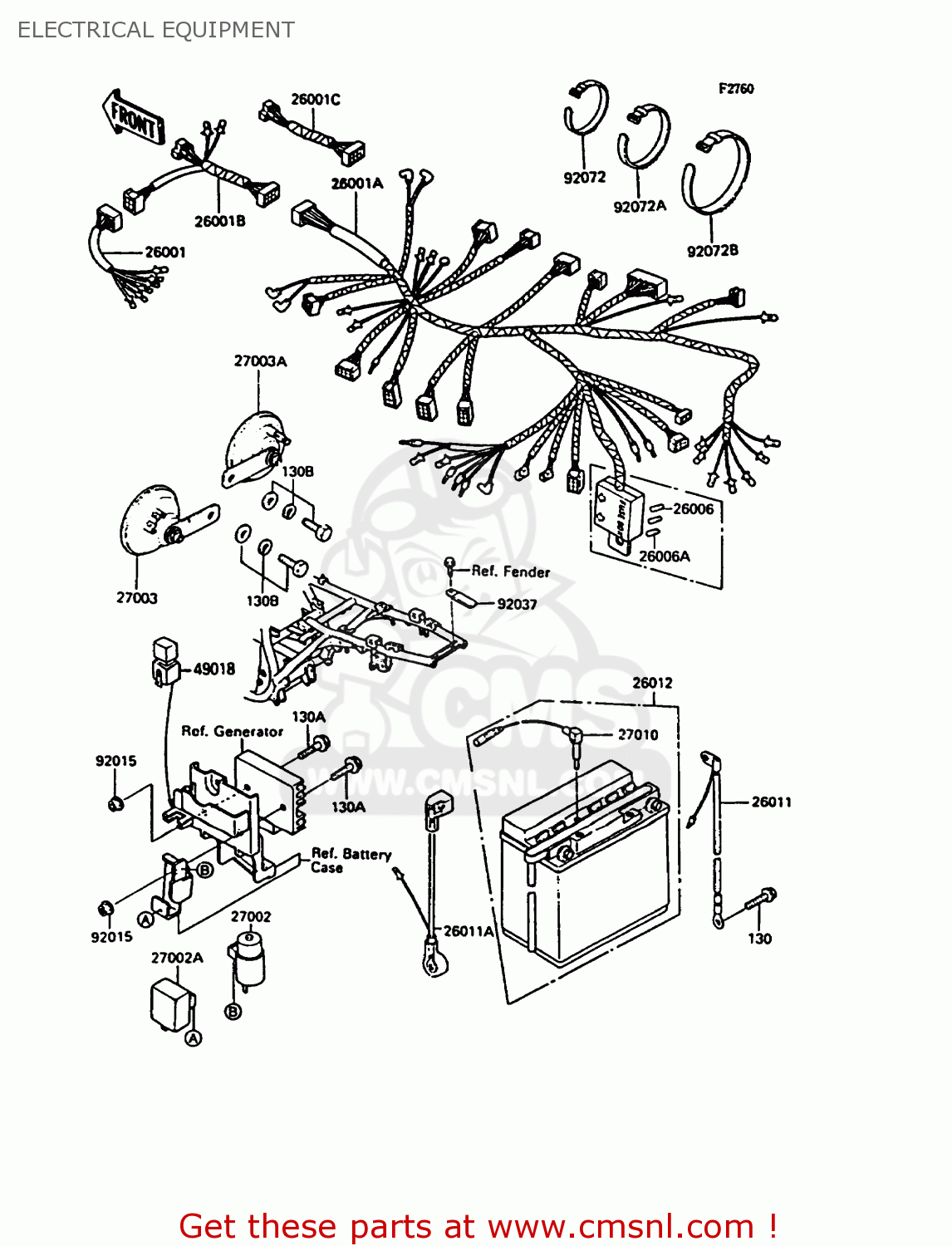

ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130B0625
ref: 130A

BOLT,FLANGED,6X25

€ 0.50

130B

130C0812
ref: 130B

BOLT-FLANGED,8X12,BLA

€ 0.50

26001

260011520
ref: 26001

HARNESS,SUB,FR SIGNAL

€ 23.50

26001A

260011582
ref: 26001A

HARNESS,MAIN

€ 214.00

26001B

260011654
ref: 26001B

HARNESS,HEAD

€ 24.50

26001C

260011793
ref: 26001C

HARNESS,IGNITER

€ 19.50

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

260111195
ref: 26011

WIRE-LEAD,BATTERY GRO

€ 14.50

26011A

260111255
ref: 26011A

WIRE-LEAD,BATTERY (+)

€ 20.00

26012

260121165
ref: 26012

BATTERY,12V 10AH,YB12

€ 90.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021053
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27003A

270031058
ref: 27003A

HORN,RH

€ 32.50

27010

270101177
ref: 27010

SWITCH,BATTERY,L=200

€ 32.50

49018

490181052
ref: 49018

DIODE

€ 35.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92072B

920721087
ref: 92072B

BAND,L=278

€ 3.50
