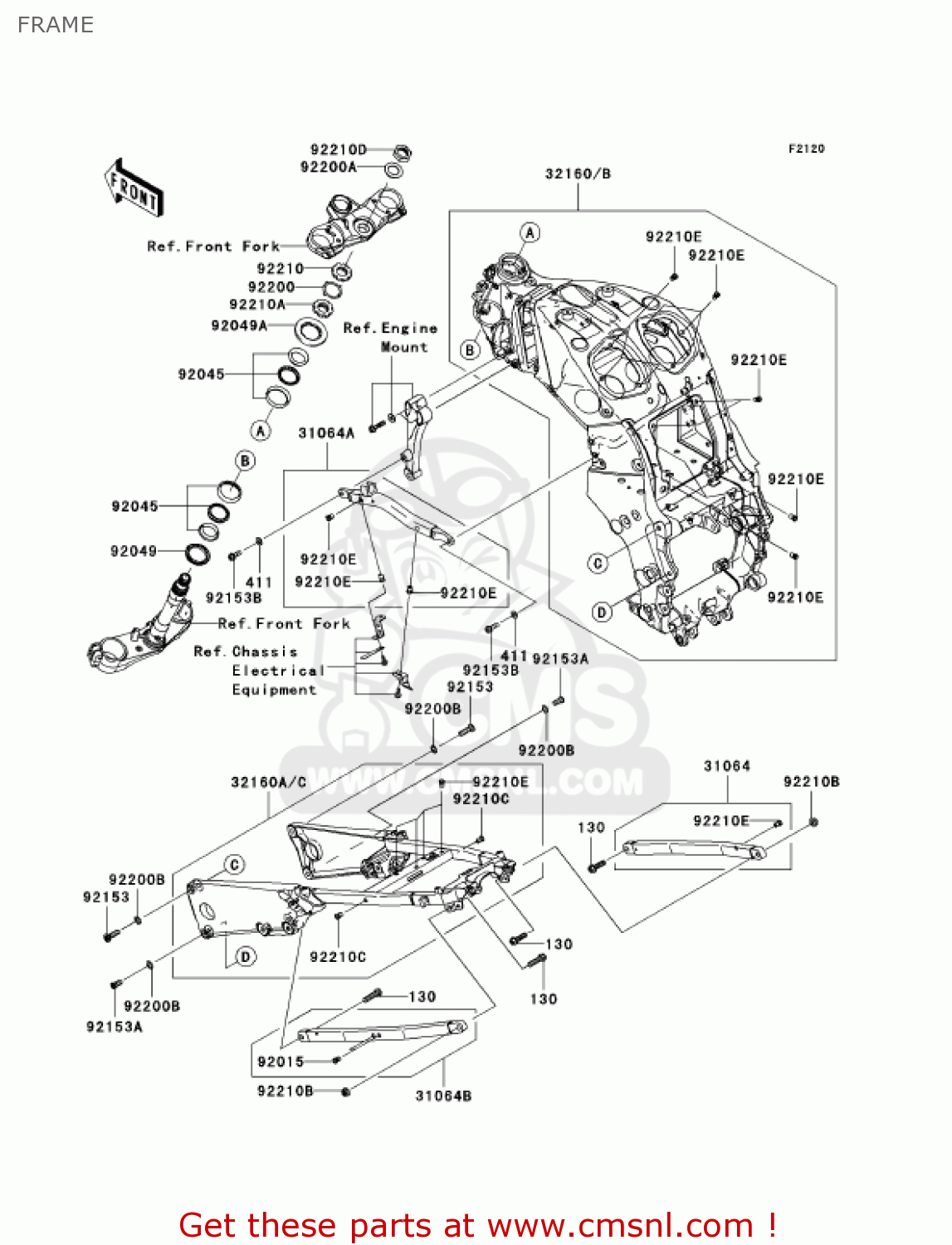

FRAME

ref

part #

description

quantity

130

130BA1040
ref: 130

BOLT-FLANGED,10X40

€ 2.00

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

31064

31064004511E
ref: 31064

PIPE-COMP,RR,RH,F.S.B

€ 103.50

31064A

31064005411E
ref: 31064A

PIPE-COMP,SUB FRAME,L

€ 130.50

31064B

31064006511E
ref: 31064B

PIPE-COMP,RR,LH,F.S.B

€ 109.00

32160B

32160021911E
ref: 32160B

FRAME-COMP,FR,F.S.BLA

€ 2,158.00

32160C

32160022211E
ref: 32160C

FRAME-COMP,RR,F.S.BLA

€ 621.00

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92045

920451384
ref: 92045

BEARING-BALL,SF07A17P

€ 48.50

92049

920490022
ref: 92049

SEAL-OIL,DS35X55X4

€ 11.50

92049A

920491382
ref: 92049A

SEAL-OIL,XMH 43 75 6.

€ 16.00

92153

921531699
ref: 92153

BOLT,SOCKET,10X35

€ 3.50

92153A

921531700
ref: 92153A

BOLT,SOCKET,10X22

€ 3.00

92153B

921531768
ref: 92153B

BOLT,FLANGED,8X25

€ 2.50

92200

922000281
ref: 92200

WASHER

€ 2.50

92200A

922000282
ref: 92200A

WASHER,25.5X42X2.3

€ 1.50

92200B

922000324
ref: 92200B

WASHER,11X18X1

€ 4.50

92210

922100095
ref: 92210

NUT,35MM

€ 13.00

92210A

922100096
ref: 92210A

NUT,35MM

€ 14.50

92210B

922100321
ref: 92210B

NUT,LOCK,FLANGED,10MM

€ 2.50

92210C

922100324
ref: 92210C

NUT,POP,6MM,L=16.5

€ 3.50

92210D

922101334
ref: 92210D

NUT,25MM

€ 21.50

92210E

922101397
ref: 92210E

AUT,POP,6MM,L=15

€ 3.00
