GEAR CHANGE MECHANISM

ZX1200A1 ZX12R 2000 USA CALIFORNIA CANADA

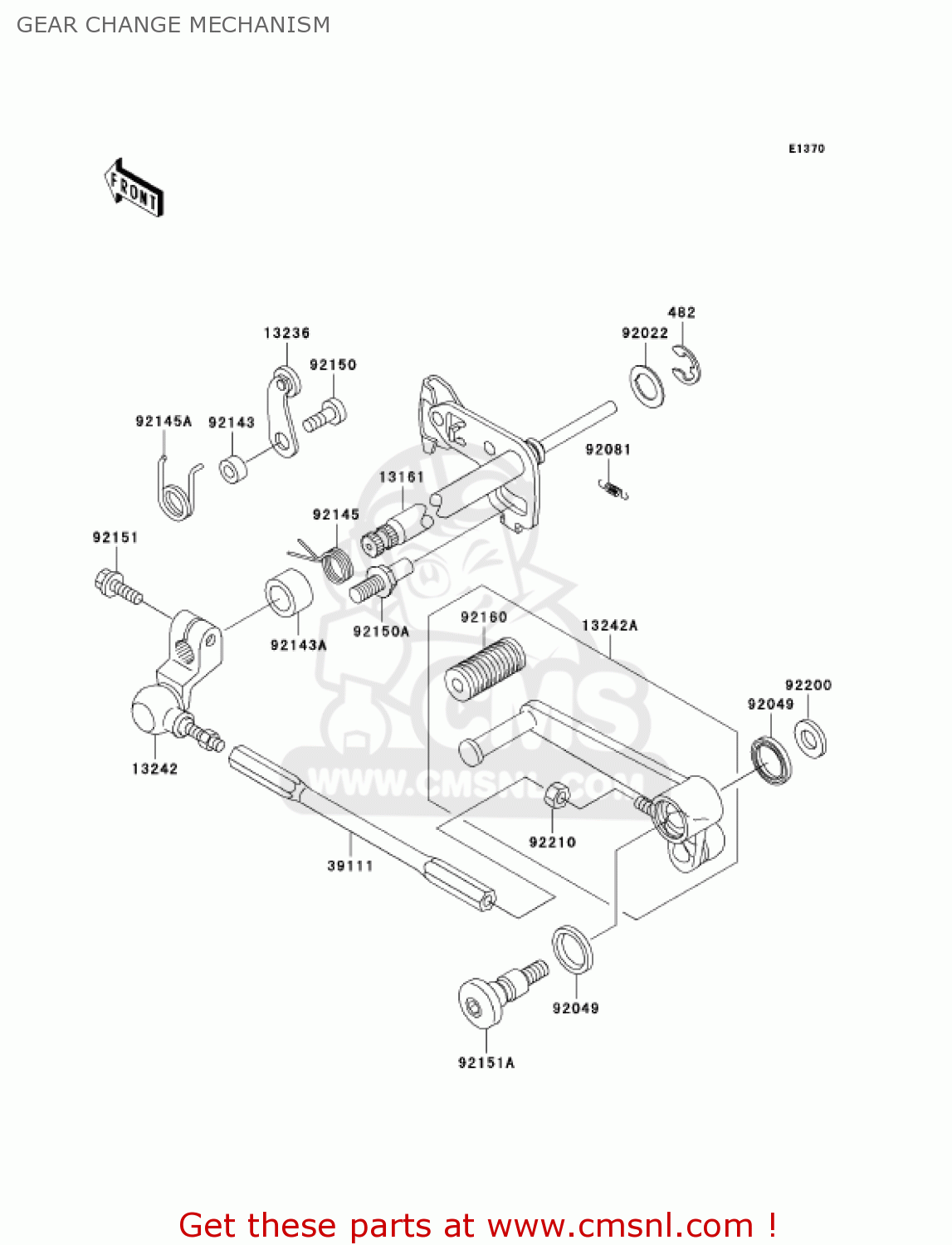

Gear change mechanism diagram ZX1200A1 ZX12R 2000 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX1200A1 ZX12R 2000 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1200A1 ZX12R 2000 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1200A1 ZX12R 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13161
131611258
ref: 13161
LEVER-COMP-CHANGE SHA
€ 65.00
13236
132361307
ref: 13236
LEVER-COMP,POSITION
132361307
€ 5.50
13242
132421348
ref: 13242
LEVER-ASSY-CHANGE,BOS
132421348
€ 37.50
13242A
132421363
ref: 13242A
LEVER-ASSY-CHANGE,PED
132421363
€ 76.00
39111
391111166
ref: 39111
ROD-TIE
€ 33.50
92022
920221628
ref: 92022
WASHER,CHANGE SHAFT
920221628
€ 4.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92081
920811708
ref: 92081
SPRING,PAWL RETURN
920811708
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92143A
921431733
ref: 92143A
COLLAR,13.2X19.9X12
921431733
€ 3.00
92145
921451122
ref: 92145
SPRING
921451122
€ 6.50
92145A
921451257
ref: 92145A
SPRING
€ 2.50
92150
921501737
ref: 92150
BOLT
921501737
€ 7.00
92150A
921501869
ref: 92150A
BOLT,RETURN SPRING
€ 7.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92151A
921511481
ref: 92151A
BOLT,CHANGE PEDAL
€ 11.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
92200
922003717
ref: 92200
WASHER,8.5X25X1.5
922003717
€ 3.00
92210
922101100
ref: 92210
NUT
922101100
€ 1.50
