CLUTCH
ZX1100F1 GPZ1100 1996 USA CALIFORNIA / ABS

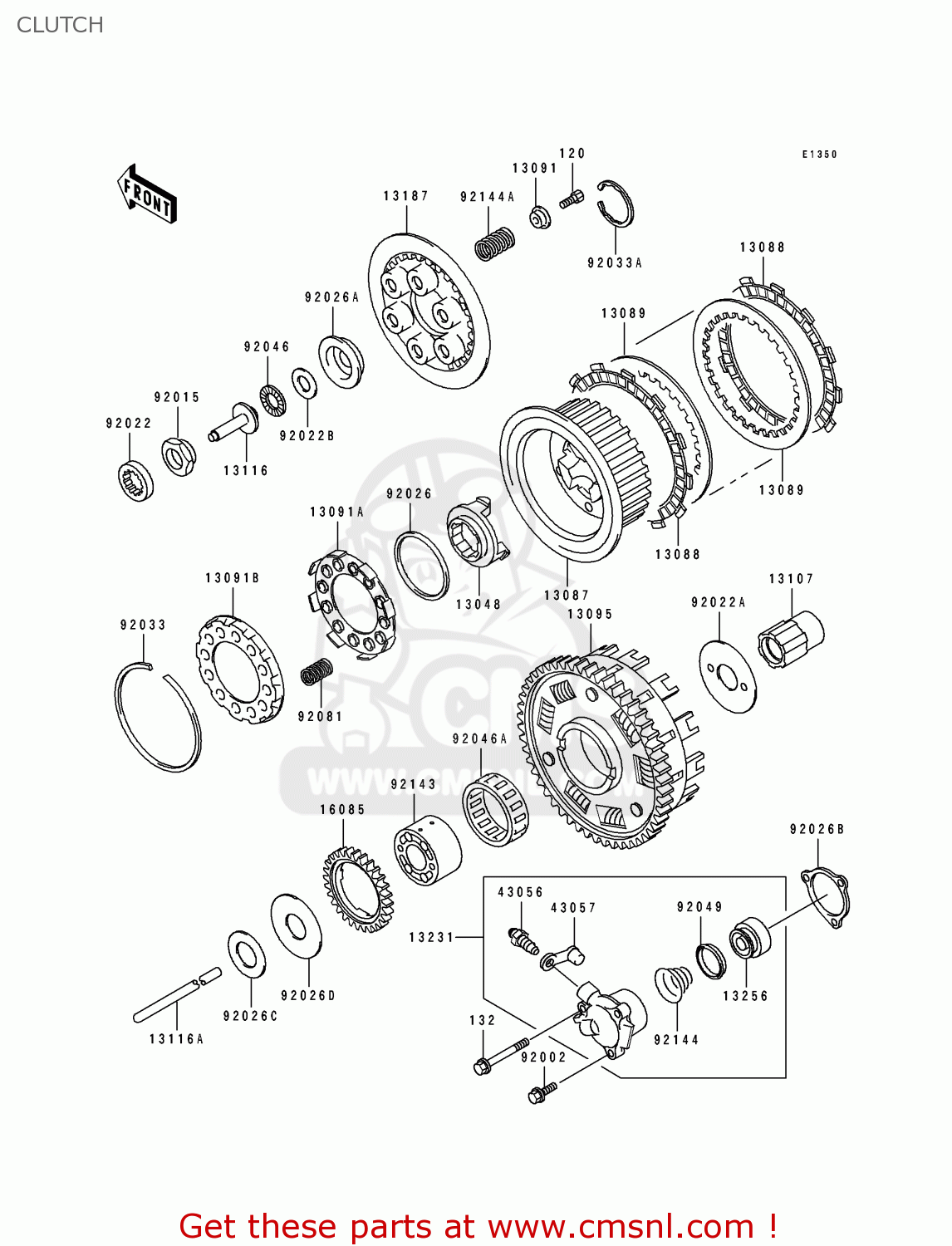

Clutch diagram ZX1100F1 GPZ1100 1996 USA CALIFORNIA / ABS
CLUTCH ZX1100F1 GPZ1100 1996 USA CALIFORNIA / ABS
×
prices are in EUR
ref
part #
description
quantity
120
120Q0625
ref: 120
BOLT,6X25
€ 1.00
132
132J0680
ref: 132
BOLT-FLANGED-SMALL
€ 4.00
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871121
ref: 13087
HUB-CLUTCH
€ 117.50
13088
130881107
ref: 13088
PLATE-FRICTION (NAS)
€ 18.00
13089
130891092
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951325
ref: 13095
HOUSING-COMP-CLUTCH
€ 477.50
13107
131071299
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
€ 26.50
13116A
131161140
ref: 13116A
ROD-PUSH,CLUTCH
€ 25.50
13187
131871069
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 64.00
13231
132311067
ref: 13231
RELEASE-ASSY-CLUTCH
€ 108.50
13256
132561052
ref: 13256
PISTON
€ 43.50
16085
160851235
ref: 16085
GEAR,OIL PUMP
€ 120.00
43056
430561052
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
92002
920021344
ref: 92002
BOLT,6X25
€ 1.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
€ 19.00
92026A
920261202
ref: 92026A
SPACER,CLUTCH
€ 31.50
92026B
920261263
ref: 92026B
SPACER,CLUTCH RELEASE
€ 11.50
92026C
920261306
ref: 92026C
SPACER
€ 12.50
92026D
920261307
ref: 92026D
SPACER
€ 12.50
92033
920331029
ref: 92033
RING-SNAP
€ 9.50
92033A
920331177
ref: 92033A
RING-SNAP,50MM
€ 6.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92046A
920461200
ref: 92046A
BEARING-NEEDLE,K550X6
€ 41.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92081
920811115
ref: 92081
SPRING,CLUTCH DAMPER
€ 4.50
92143
921431429
ref: 92143
COLLAR
€ 64.00
92144
921441084
ref: 92144
SPRING,CLUTCH RELEASE
€ 5.50
92144A
921441473
ref: 92144A
SPRING,CLUTCH
€ 5.50
