CHASSIS ELECTRICAL EQUIPMENT

ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA

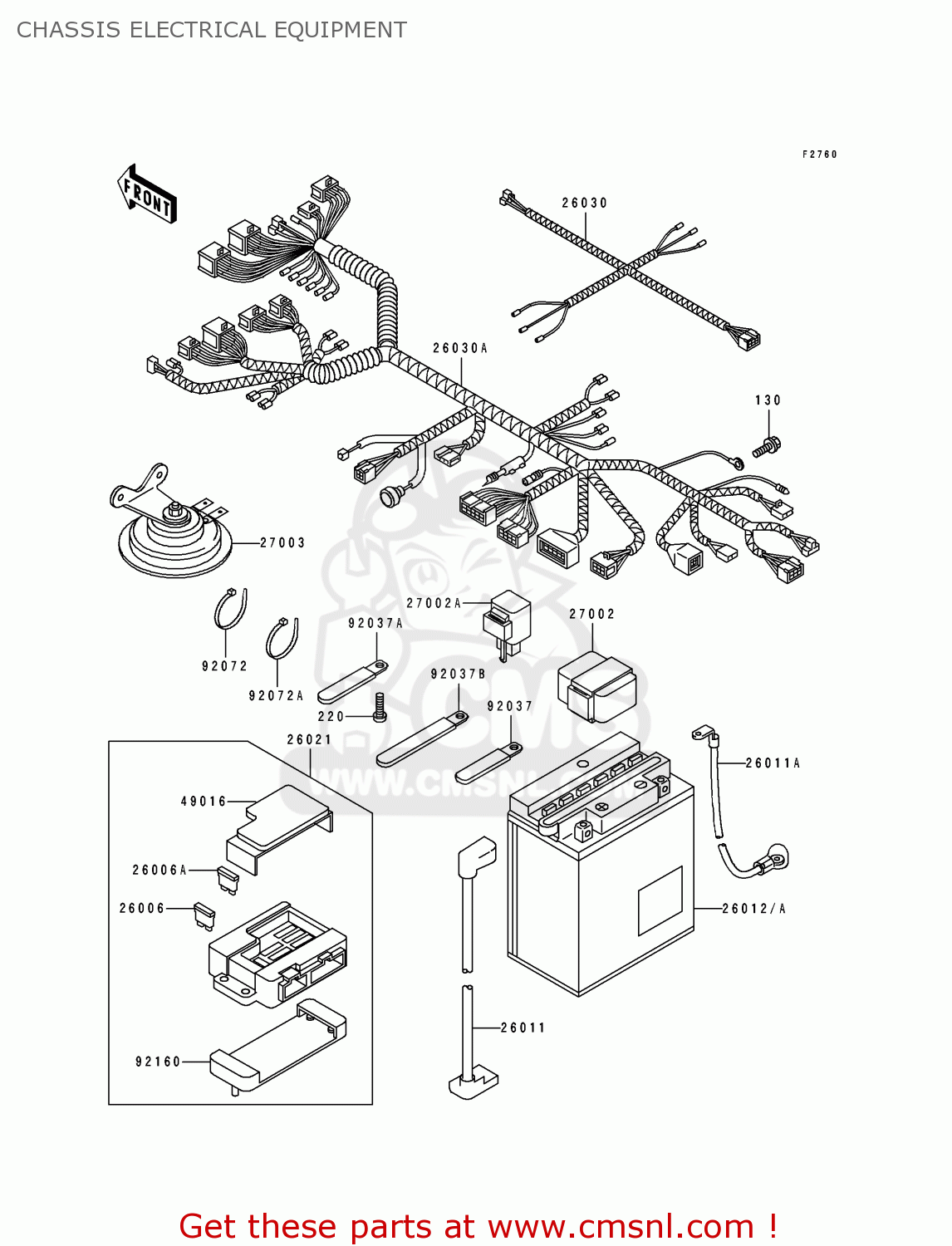

Chassis electrical equipment diagram ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
220
220C0510
ref: 220
SCREW-PAN-CROS
220C0510
€ 2.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111615
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 31.00
26011A
260111616
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 15.50
26012
260121279
ref: 26012
BATTERY,YTX14-BS,12V
€ 124.50
26021
260211096
ref: 26021
JUNCTION BOX
260211096
€ 112.00
26030
260301340
ref: 26030
HARNESS,FRONT
€ 44.50
26030A
260301342
ref: 26030A
HARNESS,MAIN
€ 245.00
27002
270021065
ref: 27002
RELAY-ASSY
270021065
€ 31.50
27002A
270021092
ref: 27002A
RELAY-ASSY,SIGNAL LAM
270021092
€ 49.50
27003
270031385
ref: 27003
HORN
€ 47.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
920371539
€ 3.00
92037B
920371993
ref: 92037B
CLAMP
920371993
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92160
921601650
ref: 92160
DAMPER,JUNCTION BOX
921601650
€ 9.50
