Genuine ZX Kawasaki Parts delivered quickly!


CLUTCH

ZX1100D8 NINJAZX11 2000 USA CALIFORNIA CANADA

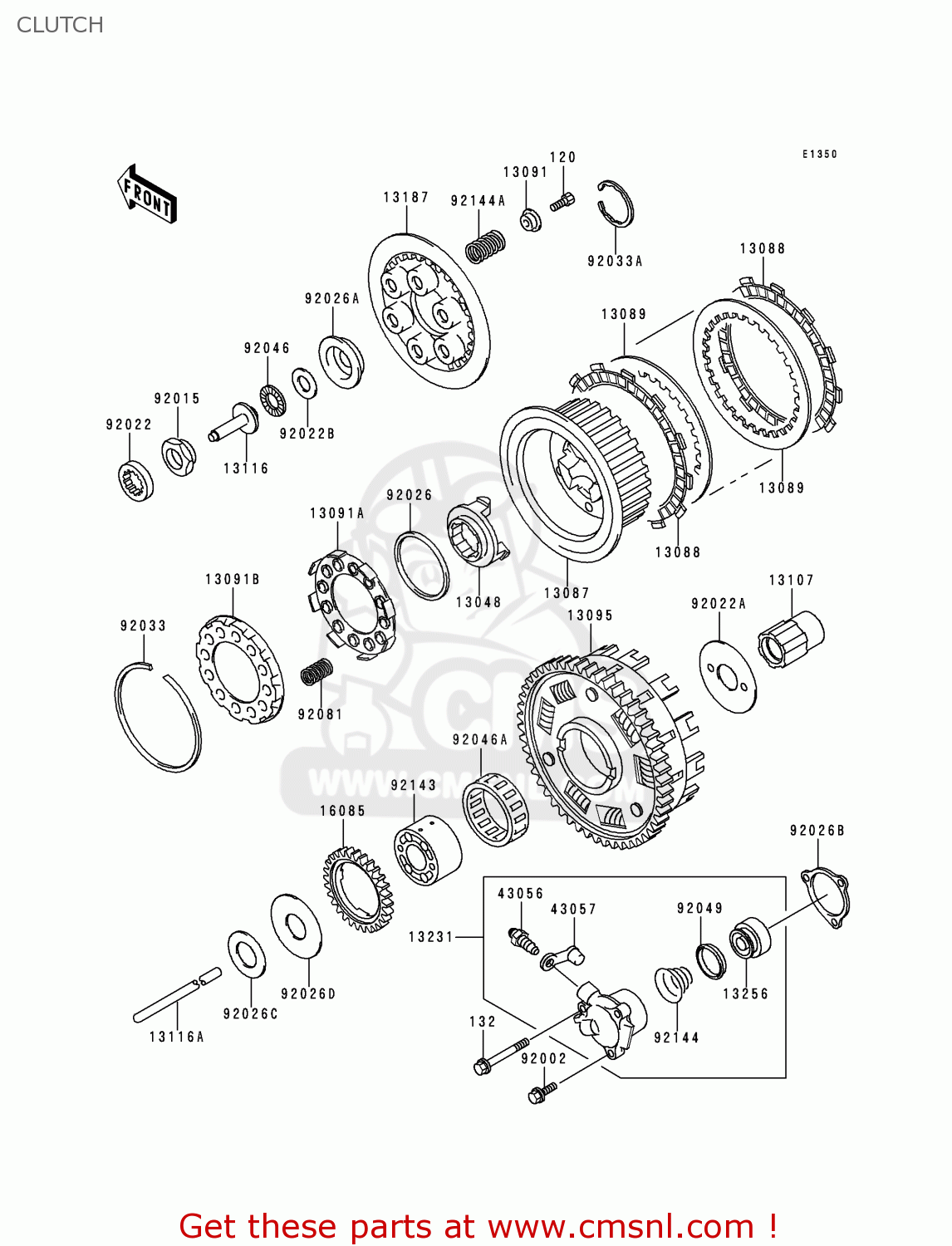

Clutch diagram ZX1100D8 NINJAZX11 2000 USA CALIFORNIA CANADA

CLUTCH ZX1100D8 NINJAZX11 2000 USA CALIFORNIA CANADA
CLUTCH ZX1100D8 NINJAZX11 2000 USA CALIFORNIA CANADA
CLUTCH ZX1100D8 NINJAZX11 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Q0625
ref: 120
BOLT,6X25
€ 1.00
132
132J0680
ref: 132
BOLT-FLANGED-SMALL
132J0680
€ 4.00
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871121
ref: 13087
HUB-CLUTCH
130871121
€ 117.50
13088
130881107
ref: 13088
PLATE-FRICTION (NAS)
130881107
€ 18.00
13089
130891092
ref: 13089
PLATE-CLUTCH (NAS)
130891092
€ 8.00
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
130911042
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951325
ref: 13095
HOUSING-COMP-CLUTCH
€ 477.50
13107
131071299
ref: 13107
SHAFT,CLUTCH
131071299
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161140
ref: 13116A
ROD-PUSH,CLUTCH
131161140
€ 25.50
13187
131871069
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871069
€ 64.00
13231
132311072
ref: 13231
RELEASE-ASSY-CLUTCH
132311072
€ 108.50
13256
132561052
ref: 13256
PISTON
132561052
€ 43.50
16085
160851235
ref: 16085
GEAR,OIL PUMP
160851235
€ 120.00
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
92002
920021344
ref: 92002
BOLT,6X25
920021344
€ 1.50
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261202
ref: 92026A
SPACER,CLUTCH
920261202
€ 31.50
92026B
920261263
ref: 92026B
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92026C
920261306
ref: 92026C
SPACER
920261306
€ 12.50
92026D
920261307
ref: 92026D
SPACER
920261307
€ 12.50
92033
920331029
ref: 92033
RING-SNAP
920331029
€ 9.50
92033A
920331177
ref: 92033A
RING-SNAP,50MM
920331177
€ 6.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92046A
920461200
ref: 92046A
BEARING-NEEDLE,K550X6
920461200
€ 41.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811115
ref: 92081
SPRING,CLUTCH DAMPER
920811115
€ 4.50
92143
921431429
ref: 92143
COLLAR
921431429
€ 64.00
92144
921441084
ref: 92144
SPRING,CLUTCH RELEASE
921441084
€ 5.50
92144A
921441473
ref: 92144A
SPRING,CLUTCH
921441473
€ 5.50
