FRAME

ZX1100D6 NINJAZX11 1998 USA CALIFORNIA CANADA

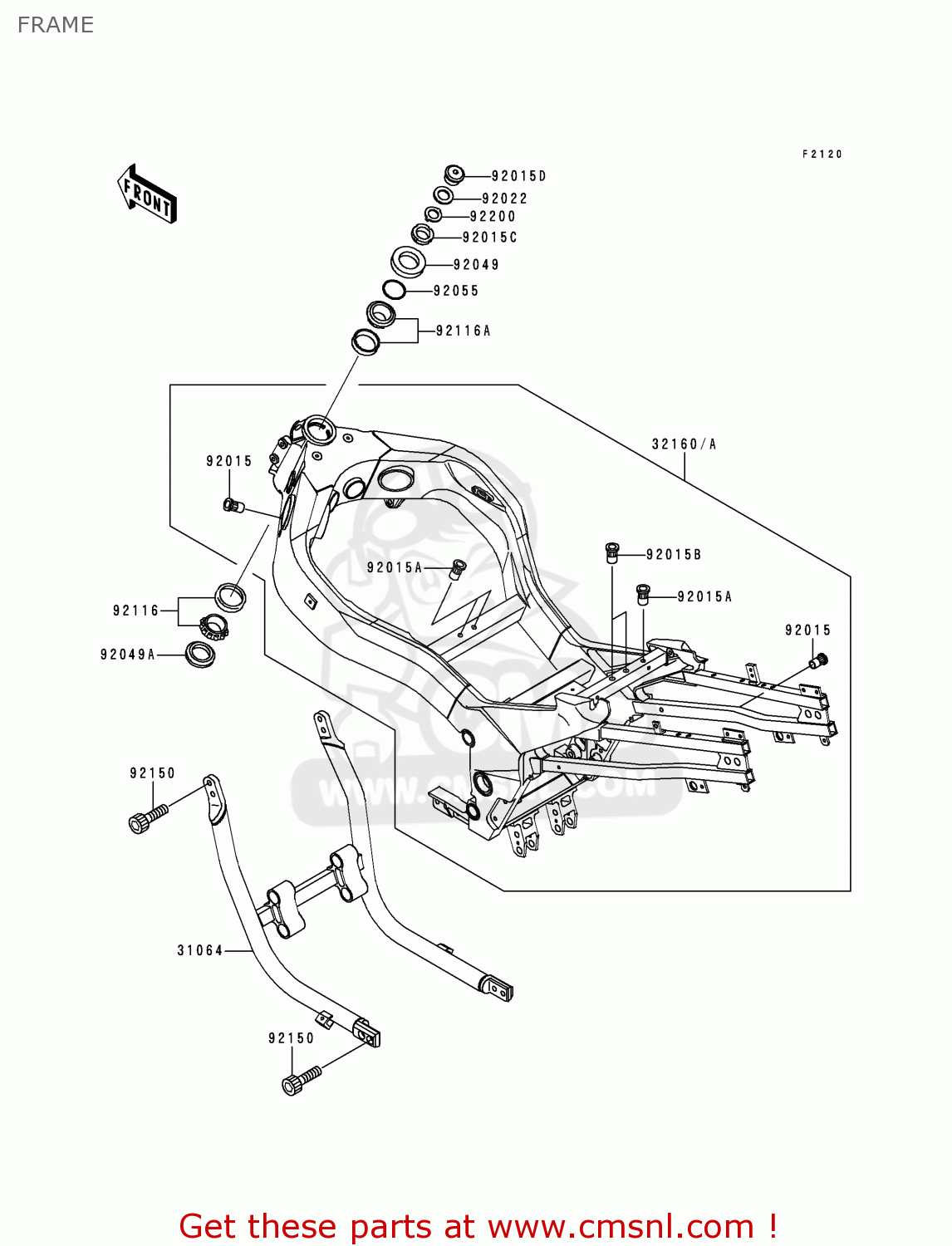

Frame diagram ZX1100D6 NINJAZX11 1998 USA CALIFORNIA CANADA

FRAME ZX1100D6 NINJAZX11 1998 USA CALIFORNIA CANADA

FRAME ZX1100D6 NINJAZX11 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

31064

31064114810
ref: 31064

PIPE-COMP,SIDE FRAME,

€ 297.50

32160

321601280GD
ref: 32160
CN

FRAME-COMP,G.GRAY

€ 1,930.00

32160A

321601280VZ
ref: 32160A
CAUS

FRAME-COMP,AL,SILVER

€ 3,177.50

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92015A

920151792
ref: 92015A

NUT,POP,6MM,L=16.5

€ 3.00

92015B

920151794
ref: 92015B

NUT,POP,8MM

€ 3.00

92015C

920151848
ref: 92015C

NUT,STEERING STEM,35M

€ 32.50

92015D

920151891
ref: 92015D

NUT,STEERING,25MM

€ 49.50

92022

92022250
ref: 92022

WASHER,PLAIN

€ 3.00

92049

920491382
ref: 92049

SEAL-OIL,XMH 43 75 6.

€ 16.00

92049A

920491383
ref: 92049A

SEAL-OIL,XMHE 43 55 4

€ 13.00

92055

920551452
ref: 92055

RING-O,34.5X2.0

€ 3.00

92116

921161072
ref: 92116

BEARING-ROLLER,32907J

€ 76.50

92116A

921161074
ref: 92116A

BEARING-ROLLER,32907J

€ 76.50

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92200

922001083
ref: 92200

WASHER,CLAW,25.5X40X2

€ 4.50
