FOOTRESTS

ZX1100D5 ZZR1100 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

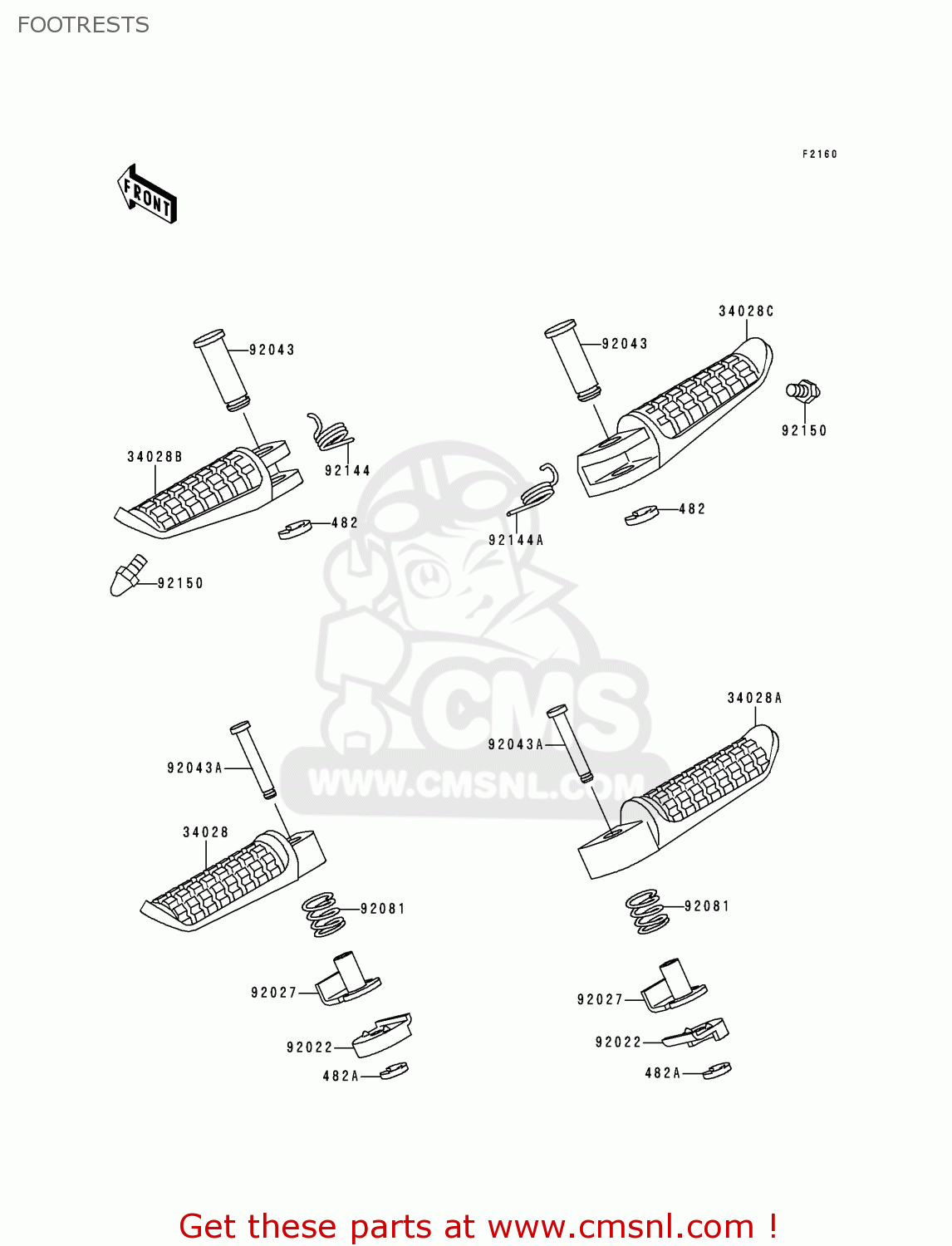

Footrests diagram ZX1100D5 ZZR1100 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

482A

482L5000
ref: 482A

CIRCLIP-TYPE-E,5MM

€ 1.00

34028

340281191
ref: 34028

STEP,RR,LH

€ 65.00

34028A

340281192
ref: 34028A

STEP,RR,RH

€ 65.00

34028B

340281334
ref: 34028B

STEP,FR,LH

€ 62.50

34028C

340281335
ref: 34028C

STEP,FR,RH

€ 67.00

92022

920221507
ref: 92022

WASHER,STEP,RR

€ 3.50

92027

920271732
ref: 92027

COLLAR,STEP

€ 7.00

92043

920431145
ref: 92043

PIN,12X42.5

€ 6.00

92043A

920431328
ref: 92043A

PIN

€ 3.50

92081

920811612
ref: 92081

SPRING,STEP,RR

€ 2.50

92144

921441567
ref: 92144

SPRING,STEP RETURN,LH

€ 4.00

92144A

921441568
ref: 92144A

SPRING,STEP RETURN,RH

€ 4.00

92150

921501114
ref: 92150

BOLT,BANK SENSOR

€ 7.50

FOOTRESTS

all assemblies
