CHASSIS ELECTRICAL EQUIPMENT

ZX1100D4 NINJAZX11 1996 USA CALIFORNIA CANADA

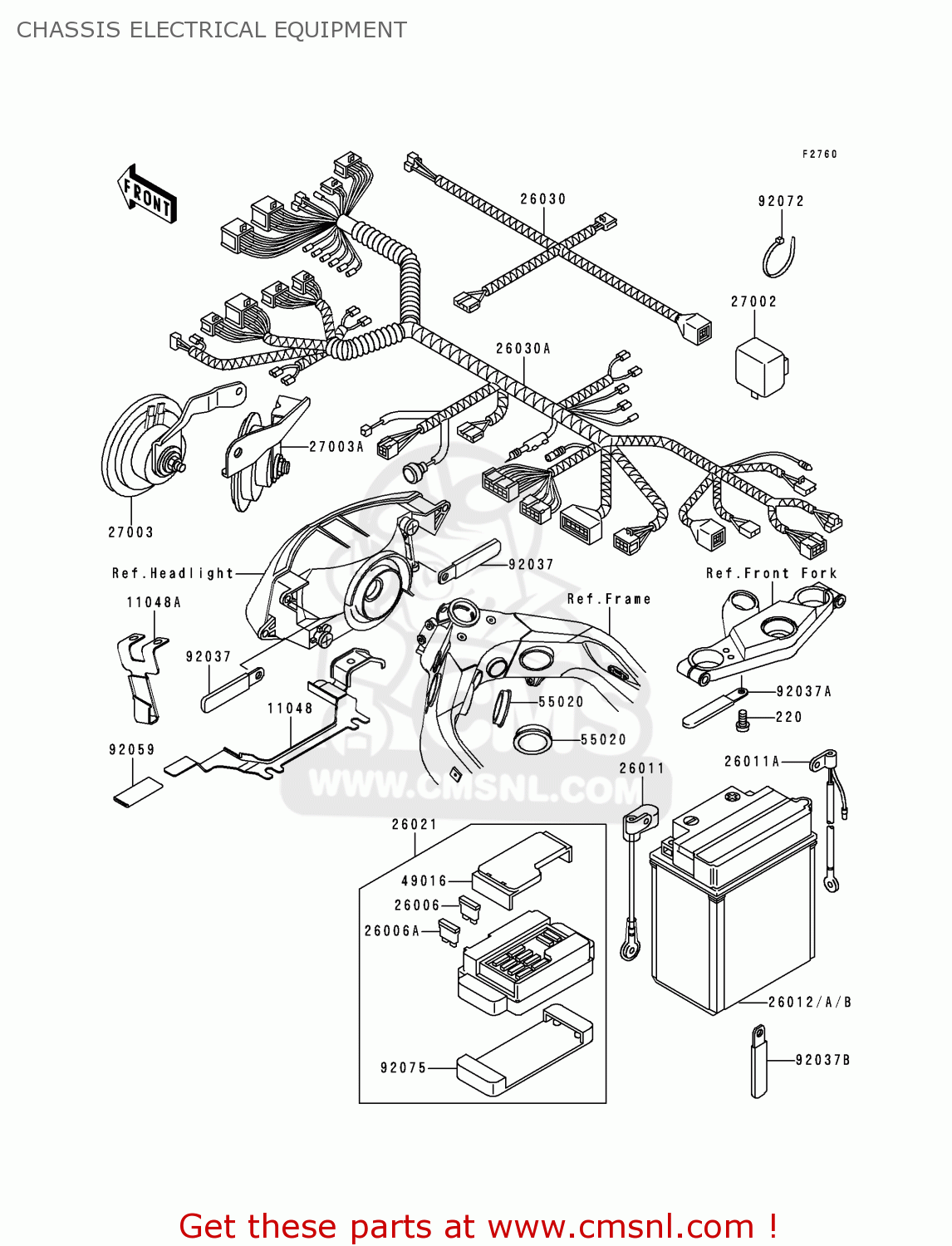

Chassis electrical equipment diagram ZX1100D4 NINJAZX11 1996 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX1100D4 NINJAZX11 1996 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1100D4 NINJAZX11 1996 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1100D4 NINJAZX11 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220C0510
ref: 220
SCREW-PAN-CROS
220C0510
€ 2.50
11048
110481193
ref: 11048
BRACKET,CLAMP
€ 22.00
11048A
110481241
ref: 11048A
BRACKET,RELAY
€ 9.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111563
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 17.50
26011A
260111564
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 29.50
26012
260121279
ref: 26012
CN
BATTERY,YTX14-BS,12V
€ 124.50
26012A
260121302
ref: 26012A
CAUS
BATTERY,YTX14-BS,12V
€ 124.50
26021
260211089
ref: 26021
JUNCTION BOX
260211089
€ 126.00
26030
260301006
ref: 26030
HARNESS,FRONT
€ 44.50
26030A
260301322
ref: 26030A
HARNESS,MAIN
€ 405.00
27002
270021092
ref: 27002
RELAY-ASSY,SIGNAL LAM
270021092
€ 49.50
27003
270031320
ref: 27003
HORN,LH
270031320
€ 58.50
27003A
270031363
ref: 27003A
HORN,RH
270031363
€ 55.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
55020
550201481
ref: 55020
GUARD,HARNESS
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
920371539
€ 3.00
92037B
920371993
ref: 92037B
CLAMP
920371993
€ 3.50
92059
920591637
ref: 92059
TUBE,11X12X40
920591637
€ 2.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
