CARBURETOR(ZX1100-D2/D3)

ZX1100D2 NINJAZX11 1994 USA CALIFORNIA CANADA

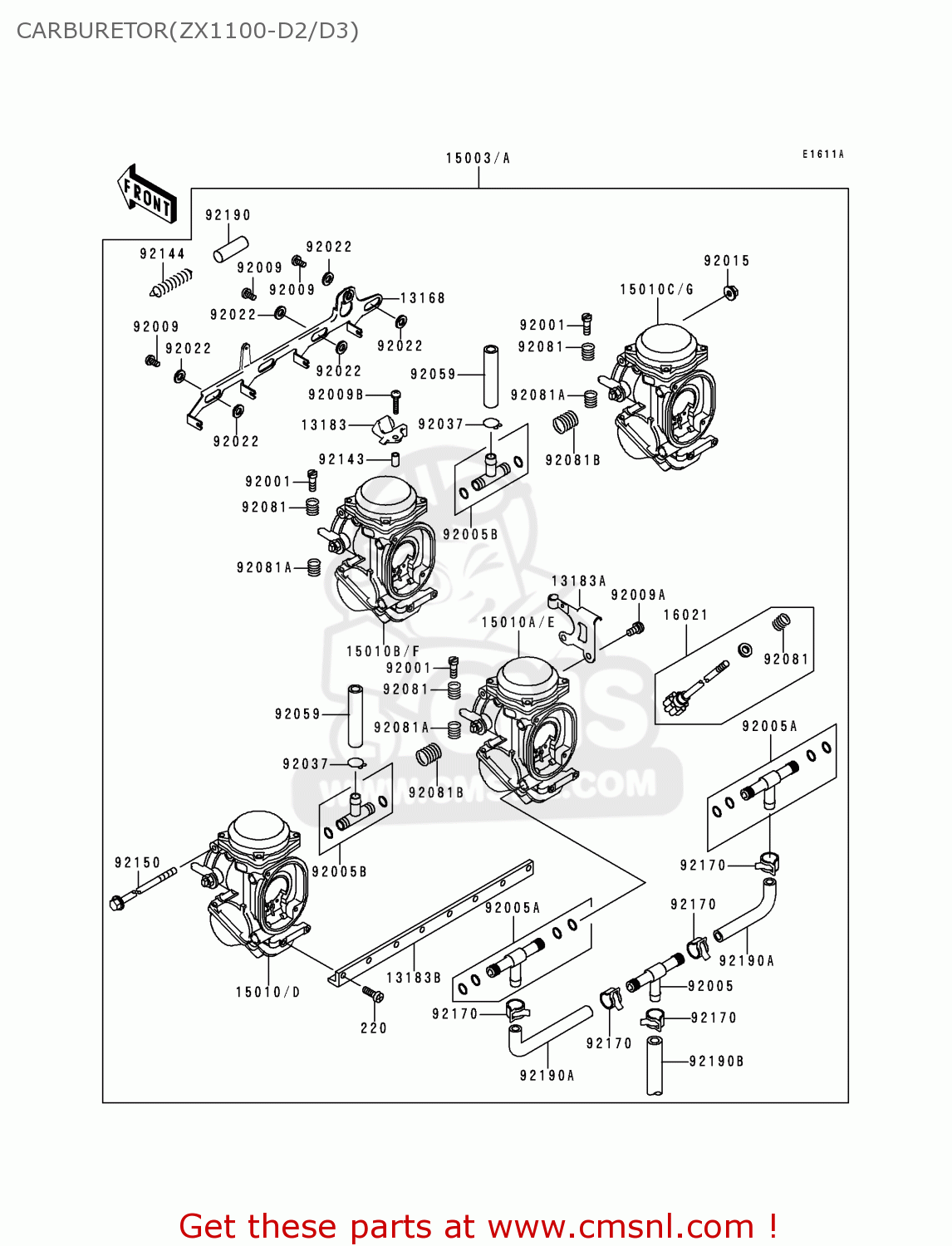

Carburetor(zx1100-d2/d3) diagram ZX1100D2 NINJAZX11 1994 USA CALIFORNIA CANADA

CARBURETOR(ZX1100-D2/D3) ZX1100D2 NINJAZX11 1994 USA CALIFORNIA CANADA
CARBURETOR(ZX1100-D2/D3) ZX1100D2 NINJAZX11 1994 USA CALIFORNIA CANADA
CARBURETOR(ZX1100-D2/D3) ZX1100D2 NINJAZX11 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
131831592
€ 26.00
13183A
131831606
ref: 13183A
PLATE,THROTTLE CABLE
€ 36.00
13183B
131831727
ref: 13183B
PLATE,CARBURETOR,LWR
€ 47.00
15003
150031178
ref: 15003
CN
CARBURETOR-ASSY
€ 0.00
15003A
150031182
ref: 15003A
CAUS
CARBURETOR ASSEMBLY
€ 1,332.50
15010
150101840
ref: 15010
CAUS
CARBURETOR,OUTSIDE,LH
€ 401.50
15010A
150101841
ref: 15010A
CAUS
CARBURETOR,INSIDE,LH
€ 401.50
15010B
150101842
ref: 15010B
CAUS
CARBURETOR,INSIDE,RH
€ 401.50
15010C
150101843
ref: 15010C
CAUS
CARBURETOR,OUTSIDE,RH
€ 393.50
15010D
150101880
ref: 15010D
CN
CARBURETOR,LH,OUTSIDE
€ 720.50
15010E
150101881
ref: 15010E
CN
CARBURETOR,LH,INSIDE
€ 720.50
15010F
150101882
ref: 15010F
CN
CARBURETOR,RH,INSIDE
€ 720.50
15010G
150101883
ref: 15010G
CN
CARBURETOR,RH,OUTSIDE
€ 720.50
16021
160211190
ref: 16021
SCREW-THROTTLE STOP
160211190
€ 81.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051294
ref: 92005A
FITTING
920051294
€ 22.00
92005B
920051306
ref: 92005B
FITTING
920051306
€ 19.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091632
ref: 92009B
SCREW
920091632
€ 4.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92144
921441518
ref: 92144
SPRING,STARTER LEVER
921441518
€ 14.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92150
921501211
ref: 92150
BOLT,5X305
921501211
€ 17.50
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92190
921901157
ref: 92190
TUBE,STARTER SPRING
€ 4.50
92190A
921901165
ref: 92190A
TUBE,L=110
€ 25.00
92190B
921901466
ref: 92190B
TUBE 7.3X12.5X70+27
921901466
€ 19.50
