RADIATOR
ZX1000B2 ZX10 1989 USA CALIFORNIA CANADA

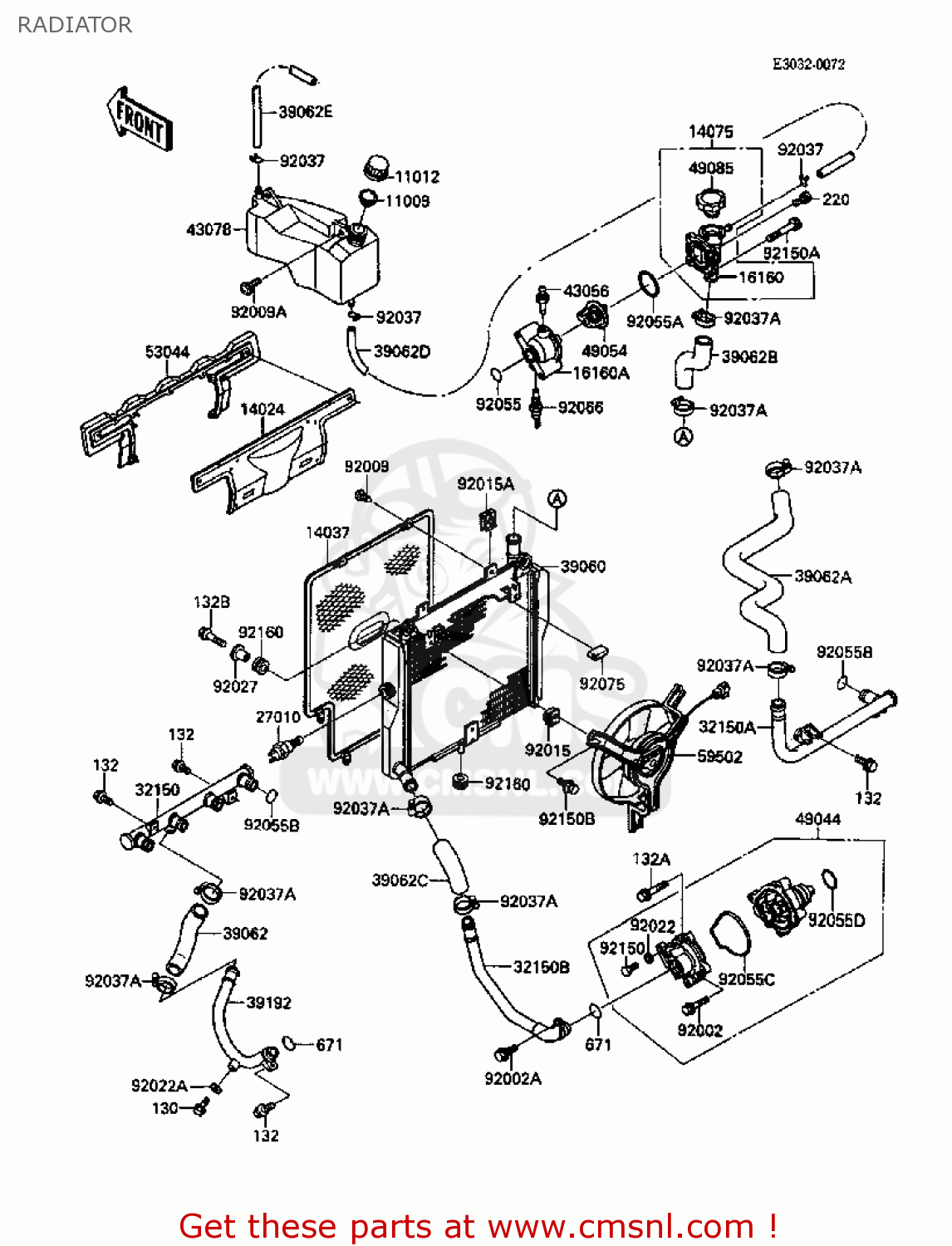

Radiator diagram ZX1000B2 ZX10 1989 USA CALIFORNIA CANADA
RADIATOR ZX1000B2 ZX10 1989 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241627
ref: 14024
COVER,HEAT
€ 26.50
14037
140371101
ref: 14037
SCREEN
€ 52.50
14075
140751068
ref: 14075
CAP-ASSY
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
16160A
161601147
ref: 16160A
BODY,THERMOSTAT
€ 22.00
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
32150
321021919
ref: 32150
PIPE,CYLINDER
€ 82.00
32150A
321021920
ref: 32150A
PIPE,HEAD
€ 69.50
32150B
321021921
ref: 32150B
PIPE,RADIATOR-PUMP
€ 56.00
39060
390601081
ref: 39060
RADIATOR
€ 656.00
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 24.50
39062A
390621277
ref: 39062A
HOSE-COOLING,HEAD-THE
€ 46.50
39062B
390621278
ref: 39062B
HOSE-COOLING,THERMO-R
€ 12.50
39062C
390621279
ref: 39062C
HOSE-COOLING,RADIATOR
€ 14.50
39062D
390621280
ref: 39062D
HOSE-COOLING,5.5X10.5
€ 25.00
39062E
390621291
ref: 39062E
HOSE-COOLING,5.5X10.5
€ 11.50
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
€ 56.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781090
ref: 43078
RESERVOIR
€ 40.00
49044
490441062
ref: 49044
PUMP-WATER
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
53044
530441201
ref: 53044
TRIM
€ 31.50
59502
595021067
ref: 59502
FAN-ASSY
€ 558.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021571
ref: 92002A
BOLT,6X16
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92009A
920091308
ref: 92009A
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371985
ref: 92037A
CLAMP,COOLING HOSE
€ 7.50
92055
92055091
ref: 92055
0 RING
€ 4.00
92055A
92055112
ref: 92055A
O RING, 53.5 M/M
€ 4.00
92055B
920551282
ref: 92055B
RING-O
€ 3.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92055C
920551423
ref: 92055C
RING-O,WATER PUMP INS
€ 6.00
92055D
920551424
ref: 92055D
RING-O,33.2X2.4
€ 4.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92150
920021391
ref: 92150
BOLT,6X10
€ 2.50
92150A
921501071
ref: 92150A
BOLT,SOCKET,5X55
€ 1.00
92150B
921501186
ref: 92150B
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
