CARBURETOR PARTS

ZX1000B1 ZX10 1988 USA CALIFORNIA CANADA

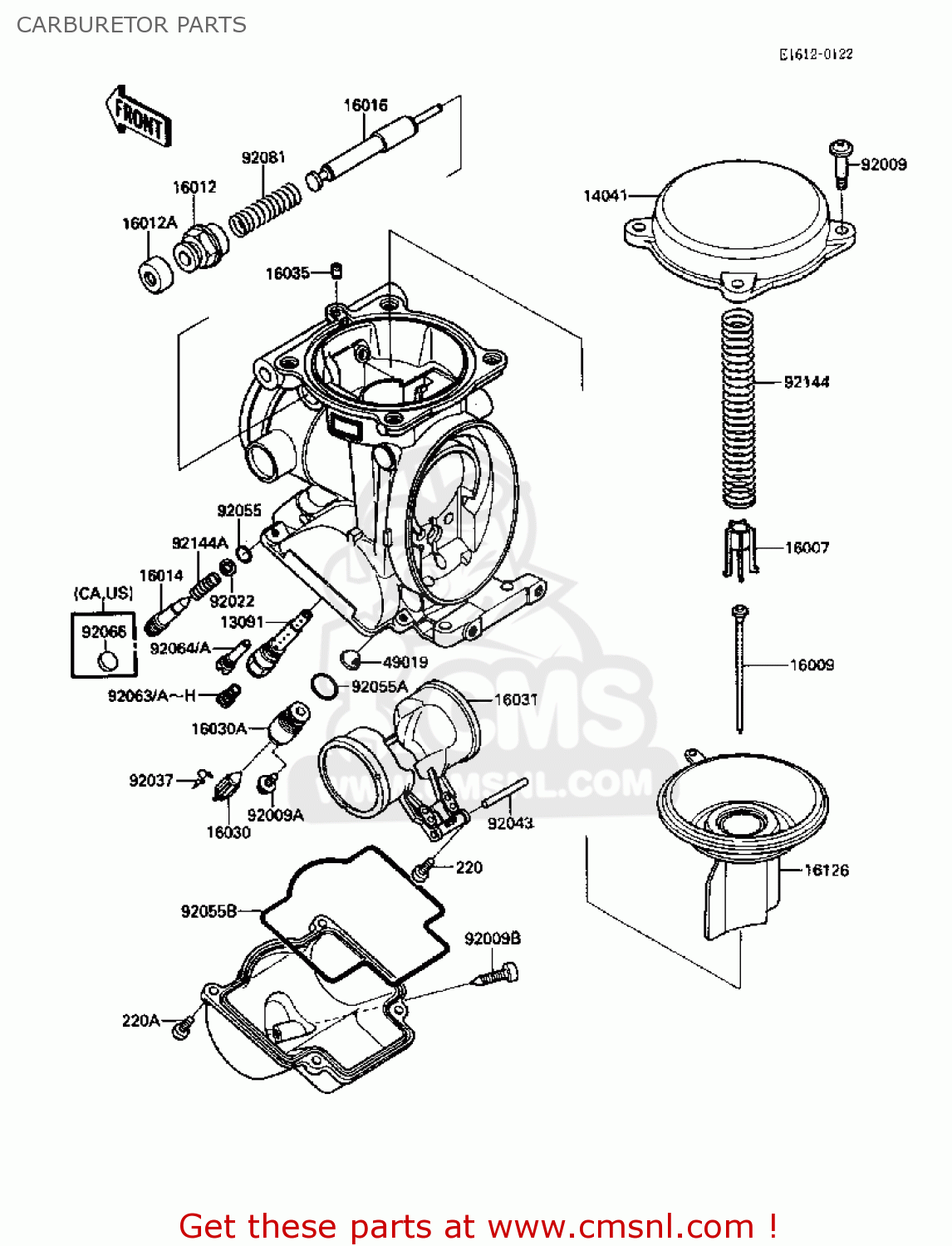

Carburetor parts diagram ZX1000B1 ZX10 1988 USA CALIFORNIA CANADA

CARBURETOR PARTS ZX1000B1 ZX10 1988 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX1000B1 ZX10 1988 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX1000B1 ZX10 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911579
ref: 13091
HOLDER,NEEDLE JET
€ 15.50
14041
140411091
ref: 14041
CAP-CHAMBER,MIXING
140411091
€ 46.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091477
ref: 16009
NEEDLE-JET,N14C
160091477
€ 18.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141064
ref: 16014
SCREW-PILOT AIR
160141064
€ 17.00
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301068
ref: 16030A
SEAT-VALVE,FLOAT
160301068
€ 42.50
16031
160311070
ref: 16031
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16126
161261214
ref: 16126
VALVE,VACUUM
161261214
€ 151.00
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631013
ref: 92063
CA
MAIN JET,#140
920631013
€ 9.00
92063A
920631014
ref: 92063A
CA
MAIN JET,#135
920631014
€ 9.50
92063B
920631014
ref: 92063B
CNUS
MAIN JET,#135
920631014
€ 9.50
92063C
920631015
ref: 92063C
CA
MAIN JET,#138
920631015
€ 9.50
92063D
920631069
ref: 92063D
CNUS
MAIN JET,2ND #125
920631069
€ 9.50
92063E
920631074
ref: 92063E
CNUS
MAIN JET,2ND #128
920631074
€ 9.50
92063F
920631075
ref: 92063F
CNUS
MAIN JET,2ND #130
920631075
€ 9.50
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0410
ref: 220A
SCREW-PAN-CROS
220D0410
€ 2.00
92063G
920631075
ref: 92063G
CA
MAIN JET,2ND #130
920631075
€ 9.50
92063H
920631076
ref: 92063H
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
CAUS
JET-PILOT,#35
920641101
€ 11.50
92064A
920641119
ref: 92064A
JET-PILOT,#38
920641119
€ 12.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441219
ref: 92144
SPRING,VACUUM VALVE
921441219
€ 12.50
92144A
921441349
ref: 92144A
SPRING,PILOT AIR SCRE
921441349
€ 6.00
