CHASSIS ELECTRICAL EQUIPMENT

ZX1000A2 NINJA 1000R 1987 USA CALIFORNIA CANADA

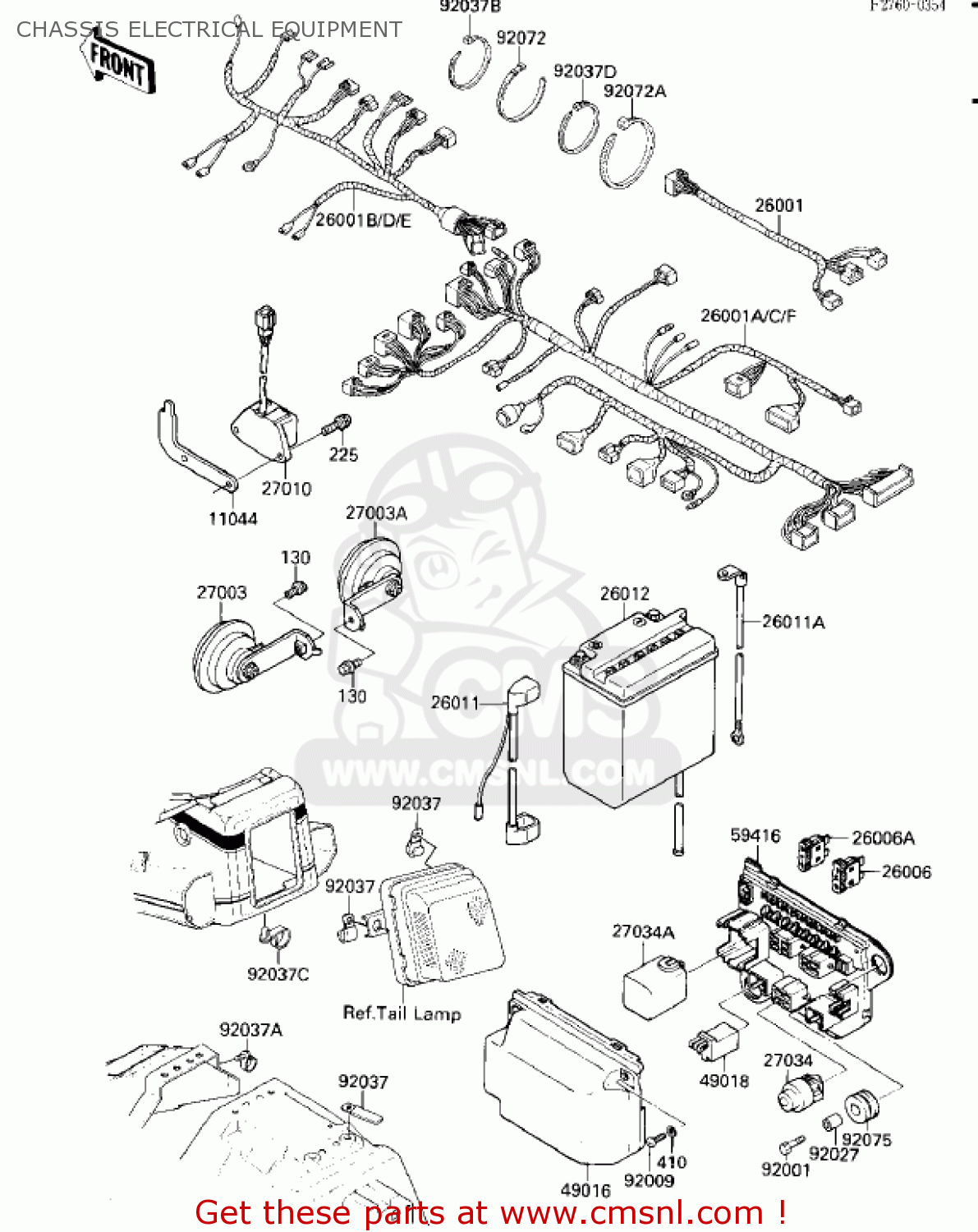

Chassis electrical equipment diagram ZX1000A2 NINJA 1000R 1987 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX1000A2 NINJA 1000R 1987 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1000A2 NINJA 1000R 1987 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1000A2 NINJA 1000R 1987 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441433
ref: 11044
( - JKAZXCA1 GA00028
BRACKET,FAN RELAY
€ 3.50
11044
110441433
ref: 11044
( - JKAZXCA1 GA00028
BRACKET,FAN RELAY
€ 3.50
26001
260011735
ref: 26001
HARNESS,RR
€ 23.50
26001A
260011736
ref: 26001A
( - JKAZXCA1 GA00028
HARNESS,MAIN
€ 285.50
26001A
260011736
ref: 26001A
( - JKAZXCA1 GA00028
HARNESS,MAIN
€ 285.50
26001B
260011738
ref: 26001B
( - JKAZXCA1 GA00028
HARNESS,FRONT
€ 78.50
26001B
260011738
ref: 26001B
( - JKAZXCA1 GA00028
HARNESS,FRONT
€ 78.50
26001C
260011763
ref: 26001C
(JKAZXCA1 - GA000281
HARNESS,MAIN
€ 218.50
26001D
260011765
ref: 26001D
HARNESS,FRONT
€ 71.50
26001E
260011765
ref: 26001E
(JKAZXCA1 - GA000281
HARNESS,FRONT
€ 71.50
26001F
260011851
ref: 26001F
HARNESS,MAIN
€ 168.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
260061007
€ 3.00
26011
260111322
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 23.50
26011A
260111323
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111323
€ 24.50
26012
260121119
ref: 26012
BATTERY,12V14AH/10HR(
€ 96.00
27003
270031299
ref: 27003
HORN,LH
270031299
€ 45.00
27003A
270031300
ref: 27003A
HORN,RH
€ 45.00
27010
270101066
ref: 27010
SWITCH,RESERV LIGHTIN
270101066
€ 149.00
27034
270341006
ref: 27034
STARTER,RELAY
270341006
€ 65.50
27034A
270341007
ref: 27034A
RELAY,FLASHER
270341007
€ 139.00
49016
490161050
ref: 49016
COVER-SEAL
490161050
€ 14.00
49018
490181006
ref: 49018
DIODE
490181006
€ 35.00
59416
594161056
ref: 59416
CASE-ELECTRIC
594161056
€ 125.50
92001
920021262
ref: 92001
BOLT,6X22
920021262
€ 2.00
92009
920091021
ref: 92009
SCREW,TAPPING,4X10
920091021
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371173
ref: 92037B
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
92037C
920371290
ref: 92037C
CLAMP,CARBURETOR
920371290
€ 4.50
92037D
920371576
ref: 92037D
CLAMP,L=203
920371576
€ 8.00
92072
92072056
ref: 92072
BAND,RUBBER
92072056
€ 3.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751562
ref: 92075
DAMPER
920751562
€ 3.00
130
130G0814
ref: 130
BOLT,FLANGED,8X14
130G0814
€ 0.50
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
410B0400
€ 0.50
