CARBURETOR
ZR750H2 ZR7S 2002 USA CALIFORNIA CANADA

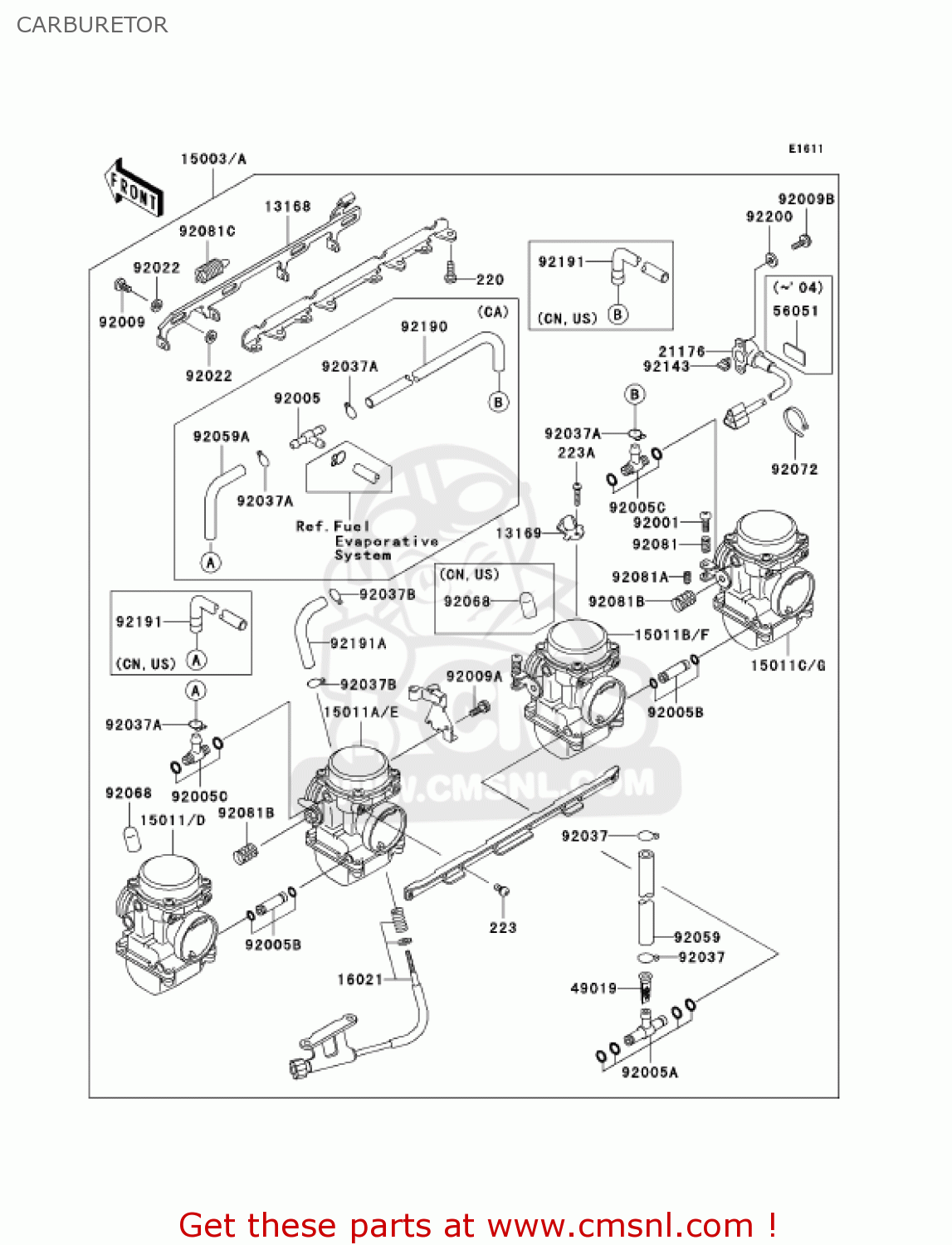

Carburetor diagram ZR750H2 ZR7S 2002 USA CALIFORNIA CANADA
CARBURETOR ZR750H2 ZR7S 2002 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13168
131681280
ref: 13168
LEVER,DL
€ 92.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
15003
150031485
ref: 15003
[CA]
CARBURETOR ASSEMBLY
€ 1,071.00
15003A
150031488
ref: 15003A
[CN,US
CARBURETOR ASSEMBLY
€ 1,071.00
15011
150111695
ref: 15011
[CA]
CARBURETOR,OUTSIDE,LH
€ 395.50
15011A
150111696
ref: 15011A
[CA]
CARBURETOR,INSIDE,LH
€ 395.50
15011B
150111697
ref: 15011B
[CA]
CARBURETOR,INSIDE,RH
€ 395.50
15011C
150111698
ref: 15011C
[CA]
CARBURETOR,OUTSIDE,RH
€ 395.50
15011D
150111719
ref: 15011D
[CN,US
CARBURETOR,OUTSIDE,LH
€ 395.50
15011E
150111720
ref: 15011E
[CN,US
CARBURETOR,INSIDE,LH
€ 395.50
15011F
150111721
ref: 15011F
[CN,US
CARBURETOR,INSIDE,RH
€ 395.50
15011G
150111722
ref: 15011G
[CN,US
CARBURETOR,OUTSIDE,RH
€ 395.50
16021
160211179
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
21176
211761073
ref: 21176
SENSOR
€ 402.00
49019
490191092
ref: 49019
FILTER-FUEL
€ 19.00
56051
560511480
ref: 56051
MARK,K-TRIC
€ 14.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051119
ref: 92005
[CA]
FITTING,T-TYPE
€ 17.50
92005A
920051288
ref: 92005A
FITTING
€ 22.00
92005B
920051310
ref: 92005B
FITTING
€ 25.00
92005C
920051314
ref: 92005C
FITTING
€ 31.50
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091781
ref: 92009B
SCREW
€ 1.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0420
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371185
ref: 92037A
[CA]
CLAMP,FUEL TAP HOSE
€ 3.50
92037A
920371185
ref: 92037A
[CN,US
CLAMP,FUEL TAP HOSE
€ 3.50
92037B
920371201
ref: 92037B
CLAMP
€ 3.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591638
ref: 92059A
[CA]
TUBE,7X11X90
€ 4.50
92068
92068006
ref: 92068
[CA]
RUBBER PLUG
€ 2.50
92068
92068006
ref: 92068
[CN,US
RUBBER PLUG
€ 2.50
92072
920721250
ref: 92072
BAND
€ 3.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92081C
920811913
ref: 92081C
SPRING,STARTER LEVER
€ 15.00
92143
921431907
ref: 92143
COLLAR
€ 6.00
92190
921901058
ref: 92190
[CA]
TUBE,7X11X170
€ 13.00
92191
921911118
ref: 92191
[CN,US
TUBE,AIR VENT
€ 24.00
92191A
921911415
ref: 92191A
TUBE
€ 4.50
92200
922001369
ref: 92200
WASHER
€ 2.50
